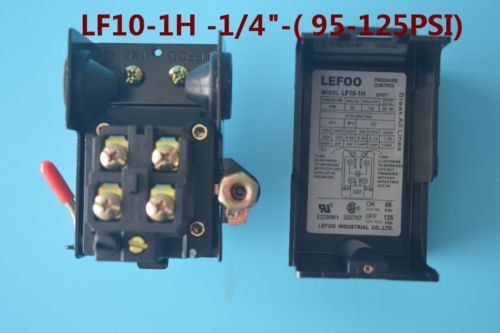

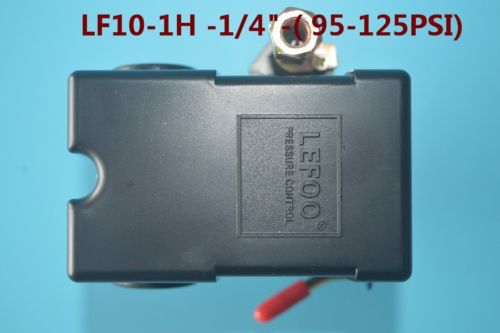

Air Compressor Pressure Switch Control ( 95-125psi) Single Port Female

US $17.88

Hebron, Kentucky, United States
Mar 4th

Open on mobile:
QR code

Air Compressor Pressure Switch Control ( 95-125PSI) SINGLE PORT FEMALE Description THIS IS A BRAND NEW LeFOO PRESSURE SWITCH 95-125 W/ A SINGLE PORT CONNECTION TYPE. THIS SWITCH COMES WITH AN UNLOADER AND ON/OFF LEVER. REPLACES FURNAS... SQUARE D.....& MANY OTHER MANUFACTURERS. ² PRESSURE: 95-125 ² MAX PRESSURE: 150 PSI ² MIN PRESSURE: 35 PSI ² DIFFERENTIAL: 35-55 PSI ² PORT: 1/4" (NPT) SINGLE PORT FEMALE ² POLE: 2 POLE RATING ² SINGLE PHASE RATING: (20amps at 120volts) (12amps at 240volts) ² THREE PHASE RATING: (9.6amps at 240volts) 1: Amps.. Amps.. Amps, is the number 1 factor in matching the correct switch for your application. Horsepower ratings have been made suspect by retail compressor dealers over the years. Because of these scewed horsepower ratings, the only way you can find your motors TRUE power is by the Amp rating. The Amp rating does not lie. Bare in mind, Pressure switches do not care what voltage you have. Pressure switches will run from 12 volts through 600 Volts. Amps are the most important. If you ARE using a magnetic starter, any standard pressure switch will work fine with your application. The magnetic starter is taking 90+% of the load, and only milli-amps are needed to make the pressure switch function properly. If you ARE NOT using a magnetic starter, and have your motor wired directly through your pressure switch, make sure your electric motors amp rating is less than the Max amp current of the pressure switch. 2: What Pressure?? what pressure do you need the compressor to Cut in & Cut out at. Most pressure switches come 2 ways from the factory. 95-125 or 140-175. Bare in mind, all of the pressure switches we carry can be adjusted up or down. you can find out how much they can be adjusted by whats called the "Pressure Differential". All of our pressure switch listings show you the differential amount. 3: Do you require an unloader?? The unloader is the smaller 1/8" fitting that comes out of the side of the pressure switch. It normally connects to the check valve thats located in your tank through copper tubing. If your application does not require an unloader, you simply do not connect it, and the pressure switch will run and work fine. all of the pressure switches we carry have unloaders. again, you do not have to use the unloader if your application does not call for it. 4: What type of Connection Port do you need?? Almost all pressure switches come 1 of 2 ways. Either Single Port connection or Four Port Connection. The Four port connection allows you the ability of connecting other accessory items to your pressure switch, example.. gauge, safety valve, regulator, etc etc. You can plug the unused ports with a 1/4" plug. If you have no need to connect any additional accessory items to your pressure switch, a single port connection is all that you would need. 5: All of the Pressure switches we carry have On/Off levers. If you have another way of turning your compressor on/off , simply leave the pressure switch on at all times. inkfrogproseries Shipping Terms We do everything we can to ship your orders out as soon as possible Your satisfaction is our priority! Orders are typically shipped out either on the same business day or the following business day, assuming your orders have been completed and paid. You will be notified by email once your item has been shipped with tracking number. None of our products are drop shipped. International shipping : please contact us about it. Payment Methods We accept PayPal only via eBay Secure Check-Out. Payment is expected within 7 days of auction close. Unpaid Items will be forfeited per eBay . Immediate payment needs to be processed for items with Add to Cart option so that any promotional discounts can be applied to your order immediately. We give positive feedback immediately after your item is received. We would appreciate a positive feedback as much as you. If for any reason a problem should arise, please contact us prior to leaving feedback and we will gladly assist you. If you are not satisfied with the item,PLS contact us directly. We will respond as soon as possible to resolve any issue. Please do not leave negative feedback.Give us a chance to make you happy. “Keeping you happy, makes us happy!” inkfrog terapeak inkFrog Analytics
