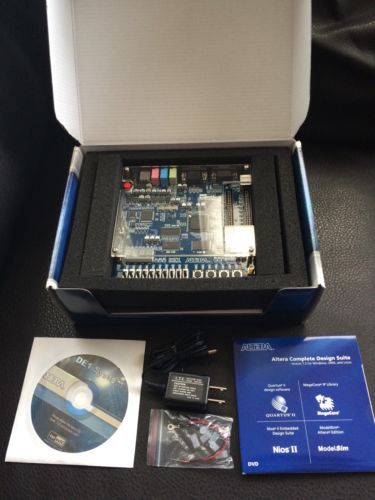

Altera De1 Cyclone Ii (2c20) Development & Education Board W/ Tutorials & Labs

US $135.00

  • Indianapolis, Indiana, United States
  • Mar 3rd
Open on mobile:
QR code
Home > Training > University Program > Dev. & Education Boards > DE1 The Altera® DE1 Development and Education board is a smaller version of the DE2 board. It is useful for learning about digital logic, computer organization, and FPGAs. Featuring an Altera Cyclone® II 2C20 FPGA, the DE1 board is designed for university and college laboratory use. It is suitable for a wide range of exercises in courses on digital logic and computer organization, from simple tasks that illustrate fundamental concepts to advanced designs. Figure 1. DE1 Development Board DE1 Development and Education Board The DE1 box includes: The 6 x 6 inch DE1 board with a Cyclone II EP2C20 (484-pin package) FPGA Plexiglas cover for the DE1 board Installation guide DE1 Board Information Feature Description FPGA Cyclone II EP2C20F484C7 with EPCS4 4-Mbit serial configuration device I/O Interfaces Built-in USB-Blaster for FPGA configuration Line In/Out, Microphone In (24-bit Audio CODEC) Video Out (VGA 4-bit DAC) Serial port (RS232) PS/2 mouse or keyboard port Expansion headers (two 40-pin headers) Memory 8 MB SDRAM, 512 KB SRAM, 4 MB Flash SD memory card slot Displays Four 7-segment displays Switches and LEDs 10 toggle switches 10 red LEDs 8 green LEDs Four debounced pushbutton switches Clocks 50 MHz clock 27 MHz clock External SMA clock input
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...
Country/Region of Manufacture Taiwan
Model DE1
Brand Altera
MPN P0528
