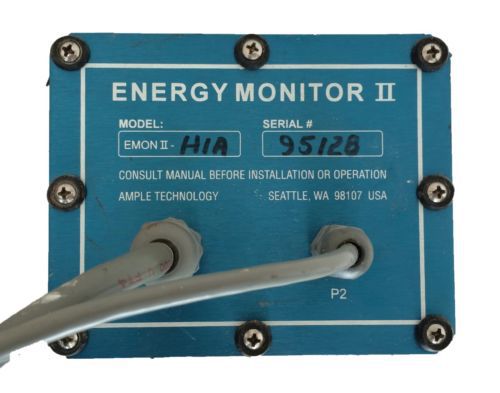

Ample Power Energy Monitor/Controller, Energy Monitor II, H1A #EMONII-H1A - Used, US $300.00 – Picture 0

Ample Power Energy Monitor/Controller, Energy Monitor II, H1A #EMONII-H1A - Used, US $300.00 – Picture 1

Ample Power Energy Monitor/controller, Energy Monitor Ii, H1a #emonii-h1a - Used

US $300.00

Torrance, California, United States
Jan 29th

Open on mobile:
QR code

The EMON II is designed to completely monitor one or two battery banks. It provides the resolution and accuracy necessary to eliminate battery discharge problems and its selectable alarms will keep you informed of overcharges before they become dangerous. Solar and wind generator control with load disconnect make the EMON II the most sophisticated energy controller in existence. With English language messages like 7/8 FULL, even electrical novices are battery experts with the EMON II. Three Versions: H1, H1A, H2 The Energy Monitor II is made in three versions. The H1 and H1A monitor a single house bank and a starter bank. The H1 has an auxiliary shunt for low side current measurement, while the H1A can be used with an optional Alternator Current Sensor and shunt to measure current in the positive lead. The H2 unit is applicable to systems with two house banks. Measurements The H1 measures voltage, current and temperature for the house bank, voltage for a starter bank, and has an optional auxiliary input for charge current or alternator current (H1/H1A). The auxiliary shunt can be used in the negative lead of solar panels and wind generators to measure their current and accumulate the Amp-hours returned by those charge sources. The H1A accepts the signal from an Alternator Current Sensor and displays alternator Amps. Solar and Next Step Control The H1 provides an output signal that is used to control a solar panel disconnect relay, and to lock the Next Step Regulator into the absorption mode until the batteries are full. To control a solar panel, an optional EM-RELAY is required. This assembly is a Form-C relay capable of 30 Amps. Since it is a Form-C contact, the solar panels can be diverted to an alternate load when not charging the batteries. Relay actuation is based on programmable setpoints. Generator and Load Disconnect The H1 and H1A also has an output signal that can be used as generator start/stop, or as a load disconnect signal. Actuation is based on programmable setpoints. The signal is programmable to operate the generator at specific capacities, for instance "on" at 50% capacity and "off" at 90% capacity. The signal can also be used as a load disconnect output by programming the on and off capacities as desired. An optional Load Disconnect Relay is required to disconnect loads. Remote SAR References In addition, the H1 and H1A provide remote charge references to interface to the Smart Alternator Regulator. By using the references, batteries can be charged perfectly since the EMON II knows battery state-of-charge, voltage, current and temperature. H2 Model The H2 measures voltage, current and temperature for two house banks. It does not have the solar panel control, or remote charge references. Computations Both the H1 and H2 compute Amp-hours consumed and remaining, percent state of charge, and display state of charge as a fractional value, i.e. 7/8 FULL. Amp-Hour Capacity for One/Two Banks from 50 to 3267 AH Amp-Hours Consumed and Remaining for One/Two Banks Uses Peukert's Exponential Equation to Compute Amp-Hours Remaining thus Accounting for Rate of Discharge Interval `Trip' Amp-Hours for One/Two Banks Accumulated Lifetime Amp-Hours of One/Two Banks Accumulated Lifetime Amp-Hours Recharge from Auxiliary Displays Battery Charge Efficiency Automatically computes Battery Charge Efficiency or Allows Manual Override Alarms The EMON II contains alarms for two banks covering high and low battery voltage, high temperature, full charge, and both 50 and 80% depth of discharge. Alarms can be individually enabled or disabled. Alarm setpoints are programmable and all programmed data is saved in non-volatile memory in the event of power failure. Depth of Discharge Alarms for One/Two Banks; 50% and 80% High Voltage Alarms for Two Battery Banks Low Voltage Alarms for Two Battery Banks High Temperature Alarms for One/Two Battery Banks Voltage and Temperature Alarm Setpoints are User Programmable All Alarms can be Individually Enabled or Disabled Non-Volatile Memory The EMON II also protects your time spent setting up the instrument. All programmed data is protected in non-volatile memory ... you don't have to reprogram just because the unit was inadvertently turned off. Universal 12/24V Operation Either 12 or 24 Volts may be supplied as power to the EMON II, and the measurement channels can be a mixture of the two. Full scale voltage is 39.99 Volts with resolution of 0.01 Volts. Operation from any Mix of 12 or 24 Volts High Resolution Analog to Digital Conversions with 12 Bits for Voltage and Temperature and 13 Bits for Current Voltage for Two Battery Banks to 39.99 Volts with Programmable Alarms Current Measurements Full scale battery current is 399.9 Amps with a displayed resolution of 0.1 Amps. Battery current is measured with 13 bit precision (including sign). Auxiliary current is measured in the charge direction only, (positive), with full scale of 200 Amps and a resolution of 0.05 Amps. Battery Amps to 400 Amps Full Scale and Resolution of 0.1 Amps Auxiliary Amps to 200 Amps Full Scale and Resolution of 0.05 Amps Temperature Measurements Battery temperature is measured to accurately calculate Amp-hours remaining using Peukert's equation. Temperature compensation is also used for controlling solar panels as well as the SAR and Next Step Regulators, when interfaced. Temperature Sensing for Two Battery Banks with Display in Fahrenheit or Centigrade. Laptop Computer Interface Computer interface hardware is standard inside the EMON II and optional software is available that allows full screen displays of electrical system parameters. Data may also be logged to the disk. Computer software is user friendly, using a menu hierarchy. Panels of information may be named, saved on exit, and read at startup. View any named panel quickly. Disk logs are done in an analogous fashion. Ergonomic, Watertight Packaging The Energy Monitor II is packaged in a hardened and watertight housing. Signals exit the chassis via a waterproof cable and terminate on a free standing terminal block. Rugged Aluminum Water Resistant Package High Reliability Package with Sealed Membrane Keypad and no Internal or External Ribbon Cables which Experience Failure in the Marine Environment Large Alphameric Menu-Driven Display with Variable Intensity Backlighting Membrane Keypad with Variable Intensity Backlighting English Language Messages like B1 VOLTS and 5/8 FULL Keypad Calibration: While not normally necessary, all measurement channels can be calibrated in the program mode. At least a 4-1/2 digit multimeter is required. Dimensions and Mounting: The EMON II front panel is 5.5 inches, (139.7 mm), wide by 4.5 inches, (114.3 mm), high. Allow 4.5 inches, (114.3 mm), depth to permit cable access. Unit requires a rectangular cutout of 5 inches, (127 mm), wide by 4 inches, (101.6 mm), high. Ordering Information: Energy Monitor II, H1 #EMONII-H1 Energy Monitor II, H1A #EMONII-H1A Energy Monitor II, H2 #EMONII-H2 Auxilary Shunt #1011 Control Relay, 12V #EM-RELAY-12 Control Relay, 24V #EM-RELAY-24 Alternator Current Sensor, 12V #ALTCS-12 Alternator Current Sensor, 24V #ALTCS-24 PC Software, H1 #EMONII-PCH1 PC Software, H2 #EMONII-PCH2 Ample Power products are manufactured by Ample Technology, 2442 NW Market St., #43, Seattle, WA 98107 - USA SHIPPING We are shipping worldwide using USPS Priority Mail. US Shipping- Fedex and USPS. Please if you have any questions about shipping, do not hesitate to contact us. PAYMENT We accept all major credit cards (MasterCard, Discover, Visa, and American Express) and PayPal. RETURNS We accept returns within 30 days after you receive the item. All returned items must be in new and in original package. The buyer will pay return shipping fees. No refund will be made for damaged parts. Shipping and handling fees and insurance fee are not refundable. We will charge 20% restocking fee. CONTACT Sales Office: 424-263-5106 Technical Support: 310-864-3131

Condition:	Used	Brand	Ample Power
Country/Region of Manufacture	United States
Manufacturer Part Number	EMONII-H1A
