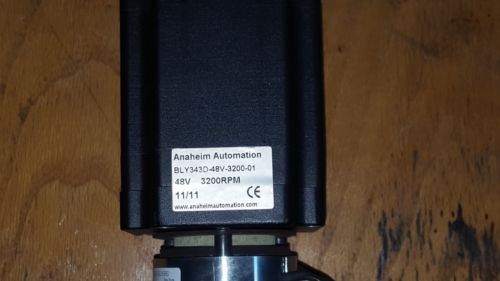

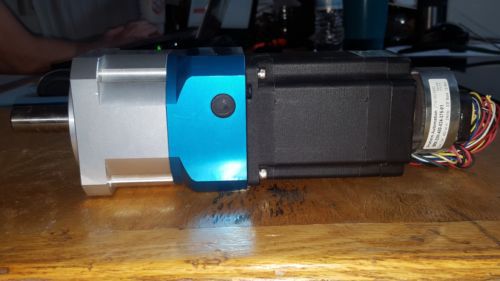

Anaheim Automation Gbph-0901-np-010-aa341-500 + Bly343d-48v-3200-03

US $455.00

Santee, California, United States
Jun 9th

Open on mobile:
QR code

GBPH-090x-NPBacklash as low as 7 arc-min Gear Ratios from 3 to 1000 Available in 1, 2, 3 and 4 Stage Models Patented Precision Clamping System Lifetime Lubrication High Durability Operating Temperature of -15° to 90°C The GBPH-090x-NP Series Planetary Gearbox offers you the precision you need at the prices you want! This Planetary Gearbox is designed with very low backlash for motion control, automation, and robotic applications requiring precise position requirements. This Planetary Gearbox will match your servo or stepping motor and is ideal for NEMA 34 motors. Built with the design goal of offering a cost effective product without sacrificing quality, you will find that this Planetary Gearbox offers you an extraordinary value. You will find online prices on this website along with all the information you need to know to select the perfect Planetary Gearbox for your applications. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers. Table 1 Gearbox Specifications Prefix Gear Ratio (X:1) Rated Ouput Torque (in-lb) Max Output Torque (in-lb) Backlash Maximum (arc-min) Rated Input Speed (RPM) Stages Efficiency (%) Torsional Rigidity (Nm/arcmin) L1 Length (mm) L2 Length (mm) Weight (lbs) GBPH-0901-NP-003 3 1487 4461 7 2600 1 97 14 167 59.5 7.1 GBPH-0901-NP-004 4 1664 4992 7 2600 1 97 14 167 59.5 7.1 GBPH-0901-NP-005 5 1593 4780 7 2600 1 97 14 167 59.5 7.1 GBPH-0901-NP-007 7 1558 4673 7 2900 1 97 14 167 59.5 7.1 GBPH-0901-NP-010 10 1487 4461 7 2900 1 97 14 167 59.5 7.1 GBPH-0902-NP-009 9 1487 4461 11 2900 2 97 14 194.5 87 9.3 BLY34 NEMA Size 34 BLDC Motors Compact Size and High Power Density Long Life - 20,000 Hour Operation Cost-Effective Replacement For Brush DC Motors Can be Customized for Maximum Speed/Winding Current Shaft Options Cables and Connectors CE Certified and RoHS Compliant The BLY34 Series Brushless DC Motors come in a compact package with high power density. These motors are cost-effective solutions to many velocity control applications. They are available in both single and dual shaft options, and come in four different stack lengths to provide you with just the right torque for your application. A number of windings are available off-the-shelf and the motors can be customized to fit your machine requirements. The motor comes in a standard 11-lead configuration and can be wired for either delta or star configurations. We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are also available upon request. Item Rated Voltage (V) Rated Power (Watts) Rated Torque (oz-in) Rated Speed (rpm) Torque Constant (oz-in/A) Back EMF Voltage (V/kRPM) Line-to-Line Resistance (ohm) Line-to-Line Inductance (mH) Rotor Inertia (oz-in-sec2) "L" Length (in) Shaft Weight (lbs) Price (USD) Quantity Discounts Stock Status Add To Cart BLY341S-24V-3000 24 110 50.0 3000 7.50 6.15 0.15 0.17 0.005660 2.28 Single 3.31 $157.00 view here 12 in Stock BLY341S-48V-3200 48 110 50.0 3200 13.30 10.50 0.45 0.63 0.005660 2.28 Single 3.31 $157.00 view here 10 in Stock BLY342S-160V-3000 160 220 100.0 3000 53.80 40.50 3.26 9.50 0.011330 2.79 Single 4.08 $231.00 view here Contact Us Contact Us BLY342S-24V-3000 24 220 100.0 3000 7.93 6.00 0.07 0.08 0.011330 2.79 Single 4.08 $231.00 view here 13 in Stock BLY342S-30V-3000 30 220 100.0 3000 9.91 7.22 0.12 0.11 0.011330 2.79 Single 4.08 $231.00 view here 10 in Stock BLY342S-48V-3200 48 220 100.0 3200 17.00 12.20 0.18 0.35 0.011330 2.79 Single 4.08 $231.00 view here 23 in Stock BLY343S-30V-3000 30 440 198.0 3000 9.80 7.14 0.58 0.05 0.022660 3.81 Single 5.73 $379.00 view here 11 in Stock BLY343S-48V-3200 48 440 198.0 3200 17.00 13.50 0.18 0.61 0.022660 3.81 Single 5.73 $379.00 view here 5 in Stock

“New, There are no sings of it ever being bolted to anything or a gear or pulley ever being installed on the shaft also the wires still have the factory half cuts on them "where they cut just through the outer part but not pulled off.. Looks really good!!”

Brand	Anaheim Automation

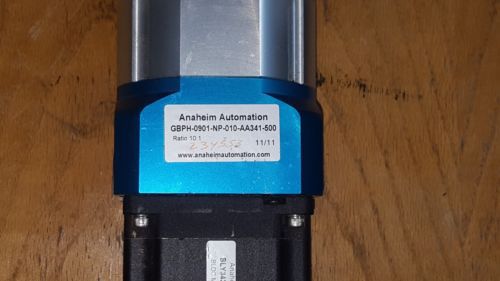

MPN	GBPH-0901-NP-010-AA341-500
Model	GBPH-0901-NP-010-AA341-500
Country/Region of Manufacture	United States
