Analog Way Computer & Hdtv & Video & Component Multi-switcher Switch Smv415

US $1500

San Francisco, California, United States
Jan 30th

Open on mobile:
QR code

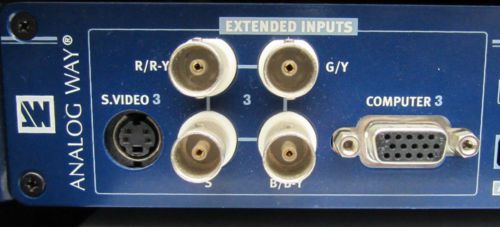

Used. Tested.Working. Ready for use ANALOG WAY SMV415 COMPUTER & HDTV & VIDEO & COMPONENT MULTI-SWITCHER SWITCH. ANALOG WAY SMV 415 EXTENDED INPUT # 3 :(on 4 pin mini DIN connector) RGsB or RGBS or YUV (Component) Input # 3 (on BNC connectors) COMPUTER: Computer Input # 3 (on HD 15 F connector) COMPUTER:Computer Input selection COMPOSITE VIDEO:Composite Video Input selection-S.VIDEO: S.VIDEO Input selection-RGB & COMPONENT: RGB & Component Input selection KEY LOCK: Front Panel Locking. A 3 seconds push locks or unlocks the front panel push buttons. LED ON = Locked / LED OFF = Unlocked C. VIDEO & S. VIDEO MODE: C.VIDEO & S.VIDEO Mode selection. Allows to choose the number of Inputs needed. A 3 seconds push allows to change the mode MODE A: 6 Composite Video Inputs + 3 S.VIDEO Inputs MODE B: 4 Composite Video Inputs + 4 S.VIDEO Inputs MODE C: 2 Composite Video Inputs + 5 S.VIDEO Inputs MODE D: 6 S.VIDEO Inputs (TEST): A short push on this buttons allows to know which Inputs are active on the SMV 415, corresponding to the selected Mode REAR PANEL POWER INPUT : Standard IEC connector (100-250 VAC, 50-60 Hz, Automatic)REMOTE IN (PC) : Standard Remote Control Input (DB 9 Female connector)REMOTE OUT (CHAIN) : Standard Remote Control Output (DB 9 Male connector) COMPUTER : INPUT 1: Computer Input # 1 (On HD 15 Female connector) INPUT 2: Computer Input # 2 (On HD 15 Female connector) OUTPUT: Computer Output (On HD 15 Female connector) RGB / YUV / HDTV : INPUT 1: RGsB or RGBS or YUV (Component) Input # 1 (On 3 or 4 BNC Female connectors) INPUT 2: RGsB or RGBS or YUV (Component) Input # 2 (On 3 or 4 BNC Female connectors) OUTPUT: RGsB or RGBS or YUV (Component) Output (On 3 or 4 BNC Female connectors) NOTE:RGBS signals are on 4 BNC connectors (R-G-B-S) RGsB and YUV signals are on 3 BNC connectors (R-Y, Y, B-Y) S.VIDEO & COMPOSITE : YC 1: S.VIDEO Input # 1 (On 4 Pin mini DIN Female connector) YC 2: S.VIDEO Input # 2 (On 4 Pin mini DIN Female connector) Y4 C4: S.VIDEO Input # 4 (On 2 BNC Female connectors) Y5 C5: S.VIDEO Input # 5 (On 2 BNC Female connectors) Y6 C6: S.VIDEO Input # 6 (On 2 BNC Female connectors) CV 1: Composite Video Input # 1 (On 1 BNC Female connector) CV 2: Composite Video Input # 2 (On 1 BNC Female connector) CV 3: Composite Video Input # 3 (On 1 BNC Female connector) CV 4: Composite Video Input # 4 (On 1 BNC Female connector) CV 5: Composite Video Input # 5 (On 1 BNC Female connector) CV 6: Composite Video Input # 6 (On 1 BNC Female connector) C.VIDEO OUT: Composite Video Output (On BNC Female connectors) S.VIDEO OUT: S.VIDEO Output (On 4 pin mini DIN or 2 BNC Female connectors)* *NOTE : Do not use at the same time the S.VIDEO Output on 4 pin mini DIN and on the 2 BNC connectors. COMPUTER INPUT (ON HD 15 FEMALE CONNECTORS) Software compatibility : All softwares compatible & Hardware compatibility :PC, MAC, & WORKSTATION Resolution : From VGA (640 x 480) to UXGA (1600 x 1280) RGsB, RGBS, RGBHV compatible Line Frequency : From 31.5 kHz to 150 kHz - Frame Rate : From 24 Hz to 170 Hz - RGB Bandwidth : 300Mhz Levels :R, G, B = 0.7 Vp/p, H & V Sync. = TTL. COMP Sync. = 0.3 Vp/p or TTL, & SOG = 0.3 Vp/p Impedance :75 Ohms (R, G, B) ; Hi-Z (H & V and COMP Sync.) •RGB / YUV / HDTV INPUT Accepts signals from both Computer & Video Sources RGsB, RGBS, YUV, HDTV Compatible Sync & Rate Line Frequency :from 15 kHz to 150 kHz - Frame Frequency :from 24 Hz to 170 Hz - Bandwidth :300 MHz RGsB & RGBS INPUT(ON 3 OR 4 BNC CONNECTORS)15.625 kHz / 50 Hz (625 L) to 150 kHz Levels :R, G, B = 0. 7Vp/p, COMP SYNC = 0.3 Vp/p or TTL, SOG = 0.3 Vp/p, & Impedance :R, G, B = 75 Ohms YUV (COMPONENT) INPUT(ON 3 BNC CONNECTORS) 15.625 kHz / 50 Hz (625 L) ..... 15.735 kHz / 60 Hz (525 L) Levels : Y = 0.7 Vp/p (Luma) + 0.3 Vp/p (Sync.), U, V = 0.7 Vp/p, & Impedance :75 Ohms HDTV INPUT (ON 3 BNC CONNECTORS) Levels :Y = 0.7 Vp/p with ± 0.3 V Tri-level Sync., Dr = 0.7 Vp/p (with Tri-level Sync.), Db = 0.7 Vp/p (with Tri-level Sync.), RGB = 0.7 Vp/p with ± 0.3 V Tri-level Sync., & Impedance :75 Ohms • S.VIDEO (Y/C) INPUT (ON 4 PIN MINI DIN OR 2 BNC FEMALE CONNECTORS) 15.625 kHz / 50 Hz (625 L) ..... 15.735 kHz / 60 Hz (525 L) Levels :Y = 1 Vp/p (0.7 Vp/p Luma + 0.3 Vp/p Sync.) - C = 0.3 Vp/p (Chroma Burst) - Impedance : 75 Ohms (Chroma & Luma) C.VIDEO INPUT (ON 1 BNC FEMALE CONNECTOR) 15.625 kHz / 50 Hz (625 L) ..... 15.735 kHz / 60 Hz (525 L) Level :1 Vp/p (0.7 Vp/p Luma + 0.3 Vp/p Sync.) - Impedance :75 Ohms COMPUTER & VIDEO OUTPUTS(ON HD 15 AND 1 TO 4 BNC FEMALE CONNECTORS) RGB, YUV, Luma (Y), Composite Video = 0.7 Vp/p (75 Ohms), For HD15 Output : SYNC. = H&V (TTL), Comp. Sync. (TTL), SOG (0.3 Vp/p) For BNC Output : SYNC. = Comp. Sync. (TTL or 0.3 Vp/p), SOG (0.3 Vp/p) For S.VIDEO & C.VIDEO Output : SYNC. = 0.3 Vp/p • REMOTE PORTS (ON DB 9 MALE AND FEMALE CONNECTORS) Level : RS-232 - Data Rate : 9600 Bauds, 8 data bits, 1 stop bit, No parity bit ENVIRONMENTAL Power Supply : Internal CE / UL / CSA / IEC 950 (25 W), Universal, Automatic Input : 100 VAC to 250 VAC; 50-60 Hz; I = 1 A Max. Temperature : Storage : -25°C to +85°C Hygrometry : 10% to 80% (without condensation) Dimensions : 1U, 19" Rackmount compatible W 440 x D 200 x H 44 mm W 17.3" x D 7.8" x H 1.74" EXTENDED INPUT # 3: AUDIO III INPUT (L+R) : Input # 3 of the Audio Group III (On 2 RCA Female connectors) AUDIO IV INPUT (L+R) : Input # 3 of the Audio Group IV (On 2 RCA Female connectors) AUDIO I INPUT (L+R) : Input # 3 of the Audio Group I (On Jack 3.5 Female connector) AUDIO I(COMPUTER) : Group I Input selection AUDIO II(COMPOSITE VIDEO) : Group II Input selection AUDIO III(S.VIDEO - Y / C) : Group III Input selection AUDIO IV(RGB & COMPONENT) : Group IV Input selection KEY LOCK: Front Panel Locking Push Button. A 3 seconds push locks or unlocks the front panel push buttons LED ON : Front Panel Locked / LED OFF : Front Panel Unlocked BREAKAWAY: Function active only when the SMA 415 is coupled with the SMV 415 (Please see SMV 415 with SMA 415 application – Chapter 9) AUDIO II & III MODE: Audio II & III Mode selection Allows to change the number of Inputs needed (A 3 seconds push allows to change the Mode) MODE A: 6 Audio II + 3 Audio III Inputs MODE B: 4 Audio II + 4 Audio III Inputs MODE C: 2 Audio II + 5 Audio III Inputs MODE AB: 6 Audio III Inputs MODE AC: 6 Audio II + 6 Audio III Inputs MODE BC: 12 Audio Inputs(TEST): A short push on this button allows to know which Inputs are active on the SMA 415, corresponding to the selected Mode AUDIO LINE LEVEL: Audio level adjustment for each Input Push simultaneously on the chosen Input push button and turn the rotary button to adjust the Audio level for that Input PLEASE READ ALL TERMS AND CONDITIONS. Please, contact us with any questions, prior to bidding. To save on shipping please let us know if your Residential or Business address. Combine shipping is available in all our auctions. Our Shipping quotes are for the lower 48 states only. Outside of the 48 states we will recalculate the shipping fees. (HI & AK) If shipping calculator is wrong, we will contact the buyer. You will have the option to cancel the auction or pay the recalculated shipping cost. Please no international bids allowed. UNLESS, YOU ARE ON THE GLOBAL SHIPPING PROGRAM. Items being picked up or delivered in the state of Ca. Sales Tax 9% PLEASE NOTE: All items are sold "AS IS". (Unless otherwise specified) The serial numbers of all removable parts (and the item itself) have been documented. Should any part be D.O.A. on arrival? A replacement part will be issued ONLY after customer has sent prior email notification (including serial numbers) to us and then shipped the item in question (shipping paid for by purchaser). Once received, and we have verified the items authenticity **. The item in question will be tested (about to 2 weeks). If the item is found to be faulty a replacement part will be issued and the item in question will be repaired and brought to good working order (about 2 weeks). At which point the item will be shipped back to the customer at no charge (about 1 week). **Any items received that have had the security seals broken or otherwise show signs of tampering or should any of the serial numbers not matching. No replacement part will be issued and the item in question will not be fixed. But instead, returned at customer’s expense. If it is not shown in the picture or writing in the description, then it probably does not come with the item please email me if you have a question before purchasing. · Refunds / Returns Please check the description carefully; we do not grant refunds or returns on items bought by mistake or misread. (As-is and no returns will not be refunded) · If there is a problem with an order, contact us immediately to discuss the problem. Any such problems must be brought to our attention within 6 days of your receipt of the item/s. Shipping charge is non-refundable. 20 % restocking fee for returns, after 7 days. No refund will be issued for products purchased, after the 14th day. Defaced or damaged items are not eligible for refund. Customers must contact us first for return authorization number before sending the package back. Items will have a tracking number, which will be sent to you. Please no international bids allowed UNLESS YOU ARE ON THE GLOBAL SHIPPING PROGRAM. · Zero/Negative Feedback Bidders we reserve the right to cancel bids from bidders with zero or negative feedback. We recommend and encourage bidders with zero or negative feedback to contact us using the "Ask a question" link at the bottom of the listing prior to bidding on our items. Please be aware that once you won the item(s) you have 3 days to pay. Or contact us if you need an extension. Now if you fail to contact us, after three days the transaction will be canceled and re-listed or 2nd runner up offered. We welcome your suggestions and options to improve our auction sites and policy terms. Thank you, for looking. Good Hunting. We are San Francisco base Ebay store. Contact us if you are interested in selling your AV equipment. We do it all for you. 4154500705

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Used. Some minor wear and tear. Ready for use.”
