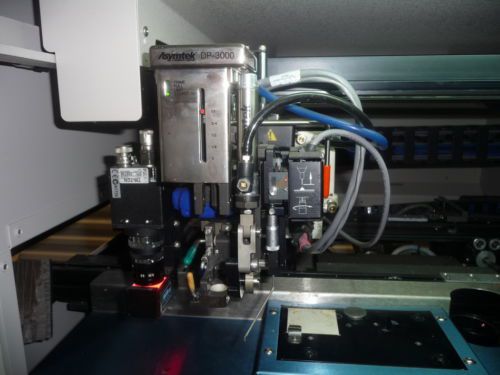

Asymtek Nordson Millennium Series M-620 Dispensing System 2001 Vintage Dispenser Powered by SellerVantage Product DescriptionPaymentShippingReturnsAbout UsLegal Asymtek Nordson Millennium Series M-620 Dispensing System 2001 Vintage Serial # 14121 The Millennium Series M-620 Dispensing Systems are designed to solve the diverse needs of the highvolume, inline semiconductor encapsulation market. The M-620 provides a modular approach to hardware, software and factory integration. An advanced platform architecture provides precision control for calibrated fluid delivery, closed-loop thermal management with multi-zone substrate heating, an integrated vision system for chip corner detection and flexible material handling capabilities, all controlled by Fluidmove for Windows NT, an advanced, user-friendly software interface to achieve consistent high-level system performance. Basic System Description All M-620 Dispensing Systems begin with a standard platform. Modular components are added, allowing the system to be configured for common glob top, dam and fill, cavity fill, underfill and encapsulation applications. Your system was configured for your application at the Asymtek factory prior to shipping. Detailed descriptions of all features are found later in this section. Basic Platform Fluidmove for Windows NT (FmNT) Needle Sensor Vision System and light source Purge and Weigh Stations Scale O-ring Conveyor Heaters DP-3000 Dispense valve Needle Heater Conveyor Type SMEMA-compatible, programmable o-ring style with pre-dispense, dispense, and post-dispense heat stations Motorized width adjustment from 50.8 mm (2.0 in.) min. to 317.5 mm (12.5 in.) max. Conveyor speed programmable to 254 mm/s (10 in./s) max. Flow Direction Configurable for left-to-right (standard) or right-to-left flow Carrier Width 266.7 mm (10.5 in.) max. 38.1 mm (1.5 in.) min. (Contact Asymtek about smaller sizes) Motion System Type Brushless DC stepper motor X-Y Velocity 381 mm/s (15 in./s) X-Y Repeatability ±0.025 mm (0.001 in.), 3 sigma Z-Axis Repeatability ±0.025 mm (0.001 in.), 3 sigma Positional Accuracy ±0.13 mm (0.005 in.), 3 sigma Z Travel (max.) 89 mm (3.5 in.), typical configuration with NER lighting and without needle installed; actual Z travel is application dependent Dispense Area DP-3000 Pump (Single Action) 355.5 x 269.1 mm (14 x 10.6 in.) Volts: 110 / 120 / 220 / 240 Amp 10 Max. Single Phase Freq. (Hz) 47-62 System Footprint: 1137 x 1107.4 mm (44.75 x 43.60 in.) System Weight: 431 kg (950 lbs) Buyer is responsible for shipping Product Features and/or Part Number: Pictures are of actual item and are part of the auction description. Shipping: We can build custom pallets and crates for an extra charge. International shipping is available on most items please ask before bidding. Paypal Confirmed Address: Paypal address must be confirmed and be the same address item is being shipped to. Returns: All items are sold as-is unless otherwise stated. Returns are not accepted unless item is defective or grossly misrepresented. Notify us of any issue within 7 days of receiving product. Feedback: Feedback is very important and we want happy customers. Please email or contact me with any concerns, issues or problems before leaving feedback and give me that opportunity to work things out if needed. Communication is key. We strive to provide a good product at a good price with fast shipping and great customer service. We realize that mistakes happen every now and then so please talk to us and we will make it right. Please checkout our other products at our ebay store. New items are added daily. Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items. Payment Pay with your credit card through PayPal. All in state residents within our state will be charged state and/or local sales tax at the time of checkout. Payment must be received within 7 days of the close of auction. If payment isn't received within 7 days, the auction will be revoked and a Non-Paying Bidder alert will be filed. Shipping Packages are usually shipped within 48 hours of payment receipt (excluding Saturday/Sunday) Shipping costs for all orders can be determined by the shipping calculator in this auction. All orders are shipped via UPS, FedEx, DHL, or USPS. International buyers, please be aware that you may incur a brokerage and/or customs fee upon delivery. Winning bidder is responsible for shipping charges. We reserve the right to choose carrier based on shipping method selected at time of payment. Combined shipping is done at the sellers discretion. If you purchase more than one item from us, they may arrive in separate packages. PFI of Florida: 607 Savage ct longwood, FL 32750 Telephone: 4078224499 Returns All items are sold as-is. We accept returns only if the item was not as described in the auction. Buyer must return the item exactly as received within 7 days and will be responsible for all additional shipping charges. We do our best to present accurate, detailed information about every item we sell. If you have any questions, please contact us before placing your bid. About Us Legal PFI of Florida has used its best efforts to inspect the item(s) for sale and create descriptions and furnish photographs that fairly and adequately depict the type, condition and image of the goods at the time of sale. PFI of Florida makes no express or implied warranties or representations regarding the condition or suitability of the goods and to the extent allowed by law, specifically disclaims any express or implied warranties, including but not limited to any warranty of merchantability or fitness for purpose. Any warranty expressed in the listing itself superceeds these terms. PFI of Florida reserves the right to cancel bids on any item due to feedback. Seller Name: pcbassyequip Add to Saved Sellers Powered By SellerVantage, an Inventory and Consignment Software Solution
