Atlas Dca55 Semiconductor Tester

US $100.71

USA, United States
Jun 9th

Open on mobile:
QR code

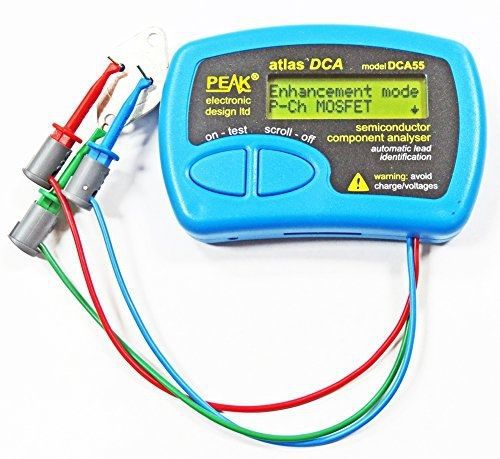

Atlas DCA55 Semiconductor Tester DETAILS The Atlas DCA 55 offers unrivalled functionality and style. The analysis portfolio is bigger than ever, offering enhanced message display and intelligent component identification. This superb instrument displays incredibly detailed information in scrollable pages. The Atlas combines an impressive analysis portfolio with unequalled ease of use. Connect your component any way round and let the Atlas do the rest. It will measure the gain of transistors, the threshold voltage of MOSFETs, and semiconductor voltage drops. It will even identify special component features such as diode protection on transistors or resistor shunts on Darlingtons. The new intelligent analysis algorithms makes life much easier when dealing with unknown components. For example, the Atlas will tell you if it has detected many different types of diode networks such as series types, common cathode, common anode and even inverse parallel types. Additionally, the Atlas knows the difference between normal diodes and LEDs and it will correctly identify and characterize both LED chips in two terminal and three terminal bicolor LEDs. The Atlas supports Diode Protected Transistors. It is important to note however that the transistor itself will only be identified if it's current gain is larger than 4 for a test current of 2.5mA. If the gain is less than 4 at 2.5mA then the Atlas will only be able to "see" the diode junctions and will report that the device is a diode network. Bear in mind that transistor gain can be very low at low test currents particularly if the transistor has base-emitter shunt resistors. SPECIFICATIONS Automatic component identification. Automatic pinout identification, connect the test leads anyway round. Gain measurement for transistors. Gate threshold measurement for Enhancement mode MOSFETs. Forward voltage drop measurements of diodes, LEDs and transistor base-emitter junctions. ADDITIONAL FEATURES Manufacturer: Peak Electronic Design Ltd Shipping Weight: 60 Product Dimensions: width: 5.40 length: 7.90 depth: 1.20 SHIPPING INFORMATION ● Our stock all ships from our US-based warehouses. ● Shipped via USPS or UPS or FedEx (depending on location and package weight) ● eBay Global Shipping Program - We are a part of eBay Global Shipping Program. This means that eBay will be responsible for shipping and import charges and times. We don't control the shipping times and import charges, which are based on your location in the world. You can find all the info in the eBay listing! RETURN & REFUND POLICY ● We offer a 14 day return/exchange policy for our products. ● You can choose refund or exchange if you are dissatisfied for any reason with your product. ● Only factory defects are accepted as a reason for a return. In the case of factory defects, we will replace the product for you. ● When returning an item, it must be in all of the original packaging and include all of the original accessories or items that came with it. The item and package should be in original and perfect condition. ● You will be required to cover shipping on the return of defective items. ● All returns MUST be done within 14 days of date of purchase. Please note that we cannot give refunds or replacements after the 14 day limit has expired. ● When sending in a return, please note that it can take up to 7 business days for the return to be processed. We do our best to process as quickly as possible. We are extremely fair, and in the rare event of something out of the ordinary happening with our products or shipping, we will gladly work with you to find a solution. ABOUT USA Daily Deals Since 2010 USA Daily Deals have been available to online customers, offering a variety of brand new products at great prices. All of our products ship directly from our different warehouses across the United States so you get your items quickly and in perfect condition. We know how important it is for you to get what you ordered and get it fast. Our products are a 100% authentic and brand new. We work with the biggest suppliers of high quality products to bring you only the best items. It is very important to us that we put our customers first and you will see this reflected in every transaction with us. We consider it a top priority that our customers are happy and in the rare event that they are not, we do everything we can to fix the situation. No customer will walk away from our store unhappy. If there’s a problem, just let us know and we fix it. We guarantee you only the best experience when shopping with us! Please see our other items Automotive Baby Camera & Photo Clothing Electronics Health & Personal Care Home & Kitchen Home Improvement Kitchen & Dining Office Products Shoes Sports & Outdoors Toys & Games Feedback Profile Other Auctions

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Manufacturer	Peak Electronic Design Ltd
MPN	dca55
Brand	Peak
EAN	5410329460648
