Auto Range Esr01 Lcr Resistance Inductance Capacitance Esr Meter Usb Power

US $21.89

Shenzhen, Guangdong, China
Jan 29th

Open on mobile:
QR code

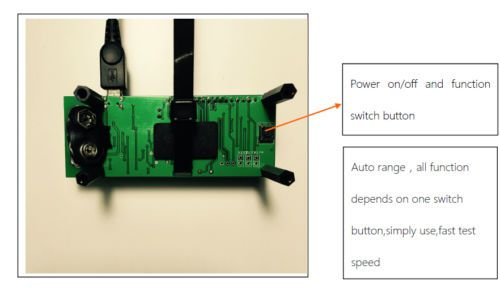

Auto Range LCR Meter Resistance Inductance Capacitance ESR Tester USB power Over view: 1, using SCM port directly synchronous detection, single chip to generate square wave signal measurement and precision of the synchronization signal 2, using a method similar to LCR digital bridge detection.After the 90 phase synchronous detection, obtain the capacitance. Electrolytic capacitor used frequency method to measure the capacity, extends the measurement range. 3, to solve nonlinear problems of constant resistance of encouragement, the square wave response of RC series expansion, and series prior two calculation of Rs and Cs,greatly improving the measurement accuracy of 2uF following high Q CBB capacitors 4, the application of over sampling technique, use the12 bit AD converter , so just one range can achieve 0.01 to 20 ohm measurement. 5, with automatic constant zero function, zero driftreduction decimal zero, ensure the long time stable. 6, to join the temperature drift compensation circuit, which makes the detection circuit structure is close to the bridge circuit, temperature drift is very small. 7, Measurement conversion of only one button for ESR and the inductance and power switch. Features: 1.Dual mode for power supply:9V/6F22 battery or USB power supply( universal DC5V power adapter) 2. Dual mode for test frequency (3K/72K):Test the component parameters with 3K/72K Hz signal,at the same time. 3. Two inputs for test, plug-in component, test with the input on the main board. SMD component can test through the metal 4. Auto range, all function depends on one switch button,simply use,fast test speed Specifications: DispLay counts: 20000 Certificate: CE Resistance: 0.01-20Ω accuracy:0.5%+2digit Capacitance ESR: 0.01-20Ω, require for the value lager than 0.1uF accuracy:1%+2digit Capacitance: 0.1uF-2000uF, (3uF-2000uF, test with 3K Hz signal, 0.1uF-3uF, test with 72K Hz signal) accuracy: test with 72kH/3kHz signal at the same time,can get two value of capacitance, the accuracy is 2%±10digit (depends on the range and Hz) Inductance: 0-60uH(72kHz), 0-1200uH(3kHz) accuracy: 2%+2digit, the resolution is 0.01uH Test signal level: 0.3V RMS Low battery indication Back light Auto-power off Package Include: ESR01 LCR Meter Test leads TL02 Test clip Carrying bag English manual Gift box Please note: The package not include the battery because the Post office forbid to send Battery Payment: We accept PayPal only or Credit Card through Paypal payment. Payment should be cleared within 7 days after auction ends or item will be re-listed. Shipping: We ship by registered standard airmail. We usually ship out within 24 hours upon receiving your payment. We normally ship to the address found on the eBay Order details page. Please confirm it before your purchase. Tracking number will be updated after package has been shipped out. Delivery time depends most on the efficiency of the destination's customs and local post office. Destination Approx. Shipping Time (For Reference Only) U.S. / U.K. / Canada / Singapore / Australia 7-15 business days Germany / France / Most Europe 10-25 business days Japan / Malaysia / Thailand / Most Asia 7-12 business days Russia / South America 15-30 business days may take up to 6-8 weeks due to strict Custom Inspection Return Policies: All qualified returns/replacements must be guided by us. We may not accept your return request without informing us in advance. Return item must be in brand new condition which means it never be installed and kept in original packaging. Customs fee, Shipping cost and handling charges are not refundable in return case. Buyer is responsible for return shipping cost, except that we shipped a not-as-described (defective, incorrect) item. Contact Us: If you have any questions or need any help from us, please feel free to send an eBay message to us. We normally reply all e-mails within 24 hours, there might be some delay during weekends and legal holidays. If for any reason you are not satisfied with your purchase, please feel free to contact us for a satisfying solution. We are a responsible seller. our seller ID is every_care, we care about every buyer. Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Aimo
Country/Region of Manufacture	China
Model	ESR01
Type	LCR meter
