Baldor Servo Motor Bsm100b-2250aax, 1200rpm, 300v Bus, 12nm, Spec. S4p004w031g1

US $2,074.40

Griffith, Indiana, United States
Jan 29th

Open on mobile:
QR code

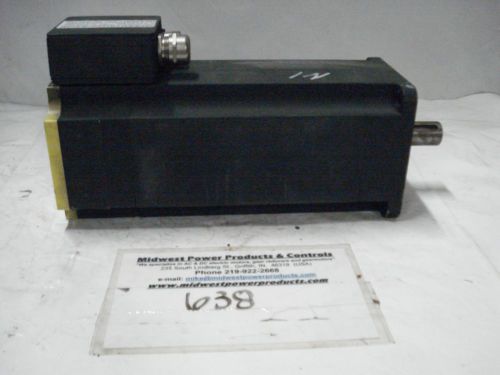

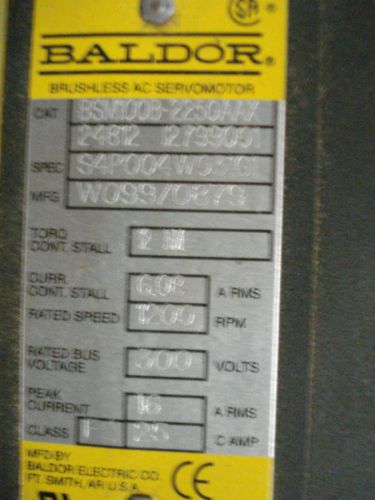

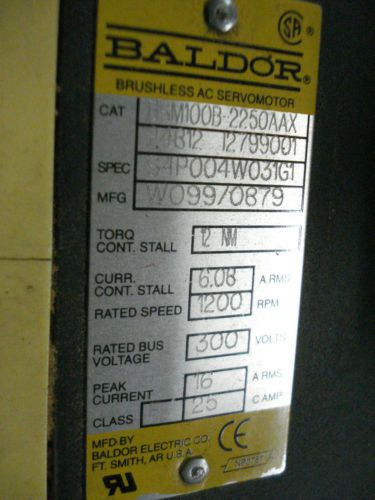

Baldor electric servo motor, catalog #BSM100B-2250AAX, BSM100B-2250AA, S4P004W031G1, spec #S4P004W031G1, new spec #S4P100W031G1, rated speed 1200rpm, with resolver, with thermostats, servo motor, 230/460volts, 1200 rpm, 3 phase, 60 hz, TENV, 3ph, 230/460vac, Baldor, BSM100B-2250AA, continuous stall torque 12nm, torque cont. stall 12nm, current cont, stall 6.08 amps, rated buss voltage 300vac, rated speed 1200rpm, peak current 16 amps, Cont. stall torque 106 in/lbs, S4P004W031G1, S4P100W031G1, torque = 12nm, Brushless AC servo motor, BSM B series, IEC 100 square flange, 28mm diameter motor shaft, model BSM100B-2250AA, c-face mount, 3hp, 1200rpm, Servo frame, AC servo motor, Baldor, 3 ph, 1200 rpm, Baldor motor, servo motor, Automotion motor, 24812, 24812 12799001, 12799001, For more information call Mike Burvan @ 219-922-2668, burv@jorsm.com or visit www.midwestpowerproducts.com Description 300 Volt bus rating Servo motor 12nm stall torque 1200 RPM TENV Our stock #638 HP: 12 nm RPM: 1200 Voltage: 230/460vac Phase: 3 Hertz: 60 Frame: Servo Mounting: c-face mount Enclosure: TENV Manufacturer: Baldor Model: BSM100B-2250AA, BSM100B-2250AAX, S4P004W031G1 Notes: Servo motor with resolver and thermostats, will be cleaned up and tested before shipped. S4P100W031G1 BSM100B-2250AAX T'STAT RESOLVER CAT. BSM100B-2250AAX BLANK SPEC. S4P100W031G1 MFG TORQ STALL/CONT 12 NM CUR CONT STALL/A RMS 6.08 POWER 1.32KW RATED SPEED/RPM 1200 RATED BUS VOLTS 300 PEAK CUR/A RMS 15.5 MAX SPEED/RPM 2500 CLASS F C AMB Parts List Part Number Description Quantity SA138543 SA S4P100W031G1 1.000 EA RA128088 RA S4P100W031G1 1.000 EA WD1000D140 T&B #B71,RING,18-14,.25,NON-INSL TERM. 3.000 EA RM1020A05 O-RING, -160 BUNA-N, .103 CS X 5.237 ID 1.000 EA HW5002A91 N5002-244 BELVELED RET RING 62 MM F/206 1.000 EA HW2512A108 SHAFT KEY CL 8MM X 7MM X 50MM 1.000 EA HW5111A01 WASHER, WAVE SPRING 1.875 BORE SMALLEY S 2.000 EA HA2113A03 TOLERANCE RING 8MM X 7MM TYPE BN8X7C 1.000 EA S4EP3006A01 ENDPLATE, FR, BSM100, RESOLVER/HALL 1.000 EA 84YN0050J035 M5 X 0.8 X 035MM LG SHCS 4.000 EA HW1021A05 LOCKWASHER 5 MM 4.000 EA RM1020A05 O-RING, -160 BUNA-N, .103 CS X 5.237 ID 1.000 EA HA7013 CLAMP, RESOLVER, PLASTIC "C-SHAPE" 1.000 EA 62YW0025A007 EPOXY LOCK SCREW,M2.5X7 TORX PAN HD TAPT 3.000 EA MH4006A21 HEAT SHRINK TUBING 0.12 ID BLACK 0.708 FT 84YN0050J012 M5 X 0.8 X 12MM LG SHCS 4.000 EA WD1000D84 T&B RB873M,TRM,NYL.INS RING(16-14 GA) #1 2.000 EA 99XM0356A02 STICK SCREW, #3-56 X .125 LG. HEX (MARK 2.000 EA LB7019 AC BRUSHLESS SERVOMOTOR CONNECTION DIAGR 1.000 EA MJ5004A02 P-2 FRANKLIN RESIN 0.002 GA MJ5004A03 S-C FRANKLIN ACTIVATOR THIS IS A NO CH 0.001 QT MJ5004A27 RP 4005 RESIN, FOR ROTOR FIBERGLASS WIND 0.002 EA MJ5004A28 REN 1500H HARDENER, FOR ROTOR FIBERGLASS 0.004 GA ME3001A02 449S2 FIBERGLASS 20 END ROVING AA-750 0.020 LB Part Number Description Quantity MG2000A17 RUST INHIBITOR PART # SRPO #20 0.001 GA BG6206E03 6206 D.SL,C3,POLYREX EM 1.000 EA RF0001 RESOLVER, BRUSHLESS, 1 SPEED, 1.4165 DIA 1.000 EA CB0004A01 COVER, FEEDBACK BSM100 HORIZ LOGO 1.000 EA S4CB5001A40 TERM BOX ASSY BSM90-100 M25 TAP, 12P M23 1.000 EA MG1025L02 PAINT- 776-06 WILKO FAST BSM BLACK 0.004 QT MG1025Z09 CATALYST #060.06 WILCO 0.004 QT MG1500Y08 PRIMER-WILKOPON (603.08A)YELLOW PRIMER W 0.004 QT MG1025Z08 WILKO 603.08B PRIMER REDUCER TDR# 72361 0.004 QT NP2944 BSM90/100 NAMEPLATE 2.470 MTG,"CE","UL" 1.000 EA LB1172A01 CUSTOM MTR CARTON LABEL LASER PRINTER 1.000 EA PK3083T STYROFOAM PACKING CRADLE W/TAPE 1.000 EA 35PA1007 PACKAGING GROUP 1.000 EA MS1240 BSM Motor Quick Start 1/10 1.000 EA

Condition:	New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...	Brand	Baldor
MPN	BSM100B-2250AAX
Model	BSM100B-2250AA
Country/Region of Manufacture	United States
