Bird 4314b Thruline Rf Directional Pep Wattmeter With Carrying Case

US $699.40

Phoenix, Arizona, United States
Jan 29th

Open on mobile:
QR code

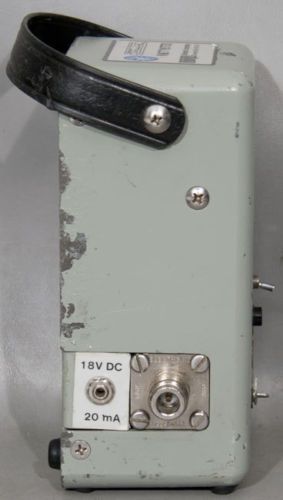

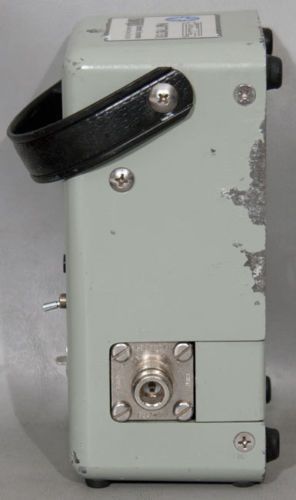

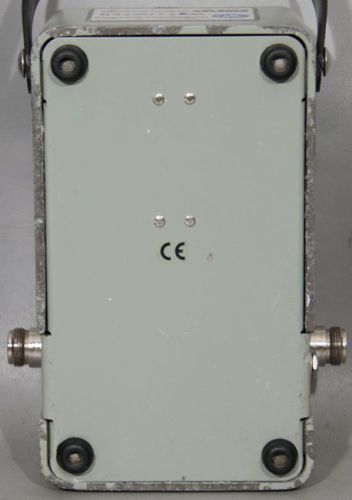

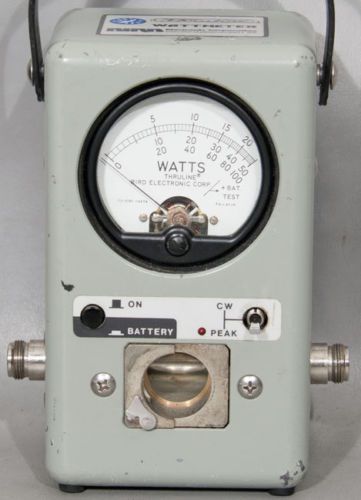

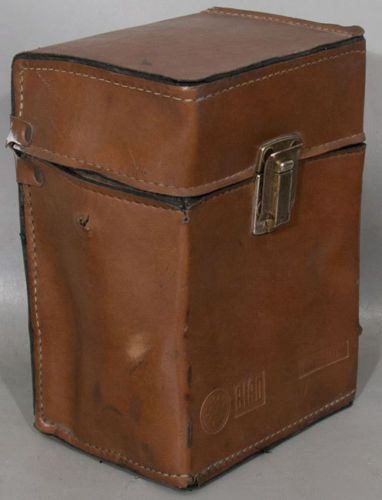

Bird 4314B Thruline RF Directional PEP Wattmeter with Carrying Case Comes with what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from Bird Technology and may vary slightly due to upgrades, options, or revisions this unit may or may not have. This unit is guaranteed to work for 30-days, parts and labor, excluding freight. Link to the Manual: Bird 4314B Wattmeter Manual Description: The Model 4314B Thruline Wattmeter is an insertion-type RF wattmeter designed to measure power flow and load match in 50 ohm coaxial tranmission lines. It is inteded for use on CW, AM, FM, SSB, TV and pulse signals only. Specifications: Impedance: 50 ohms nominal Insertion VSWR (with "N" Connectors): 1.05 Max. to 1000 MHz, 1.1 Max. to 2300 MHz Connectors: Bird Quick Change "QC" Female N normally supplied RF Power Ranges: Average (CW) Mode: 100 mW to 10 kilowatts (5% of full scale) Peak-pulse or Envelope-power Mode: 100 mW to 10 kilowatts (8% of full scale) Frequency Range: 0.45 to 2700 MHz (either mode) Pulse Parameters: Minimum Duty Factor: 1.0 x 10-4 Minimum Repetition Rate: 30 pps Minimum Pulse Width: 0.4 microseconds at 100-2300 MHz, 1.5 microseconds at 26-99 MHz, 15 microseconds at 2-25 MHz Weight: 3 lb. (1.4 kg) Dimensions: 3-5/8" L x 4" W x 7" H (92.1 mm x 102 mm x 178 mm) AC Power Requirements (using adapter): 115 VAC, 10%, 60 Hz. 220 VAC, 10%, 50 Hz. Batteries: Two 9 V alkaline Battery Life: 20 hours of operation, typically. For More Pictures Please Click the Following: Picture 2 - Front View Picture 3 - Back View Picture 4 - Right Side View Picture 5 - Left Side View Picture 6 - Carrying Case For Domestic Customers: Packaging, handling, and order processing included in shipping in all domestic shipments as quoted by the shipping calculator. For International Customers there is a $15.00 minimum for packaging, handling, and order processing. International shipping to be determined by destination. If you have any questions please call Michael at 1-866-MHZ-ELEC (1-866-649-3532) Toll Free. Also, please click here to view or other auctions! 06/05/14 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“This unit is guaranteed to work for 30-days, parts and labor, excluding freight.”
