Bolt 18f2550 Pic Usb Microcontroller Development Board+ Lcd+ Keypad+ Usb Cable.

US $32.00

Mexico, D.F., Mexico
Jan 29th

Open on mobile:
QR code

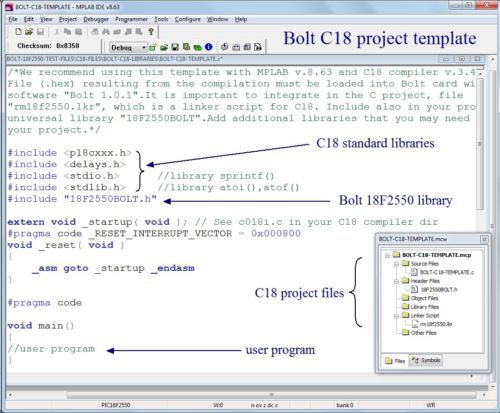

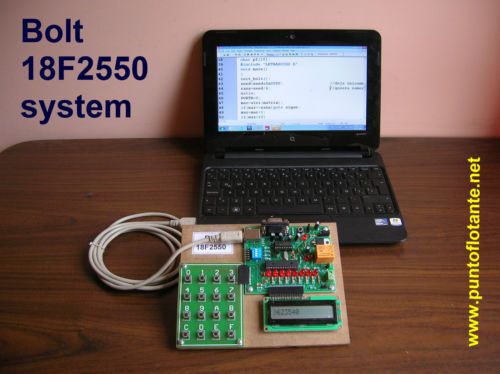

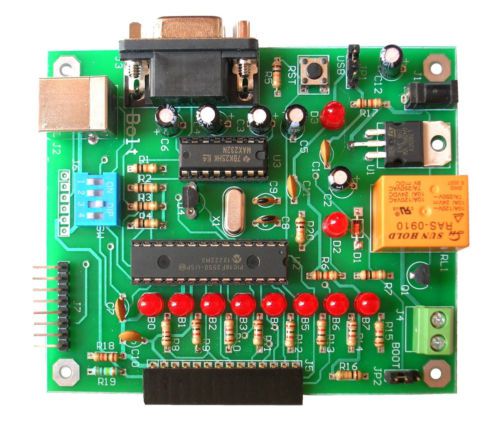

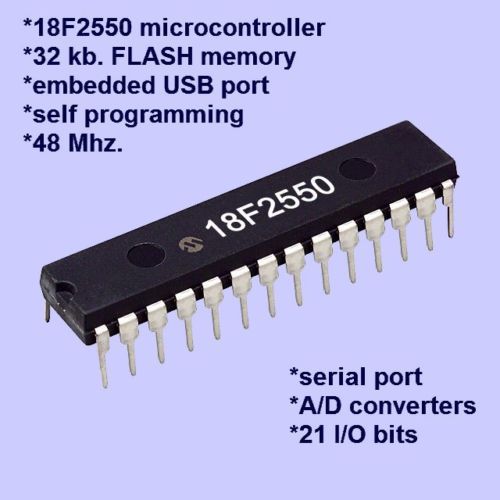

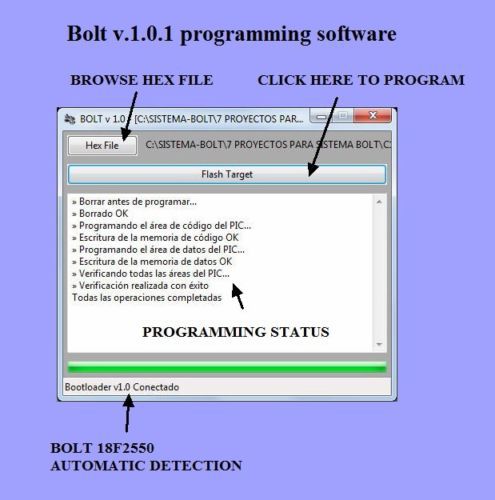

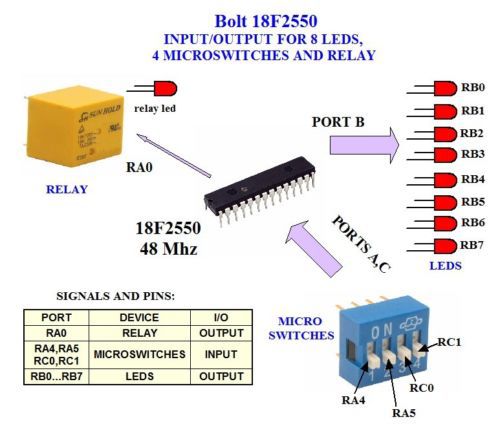

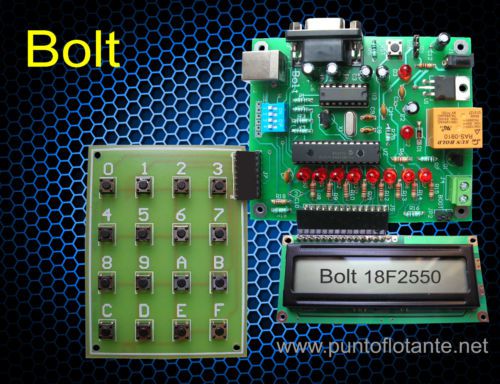

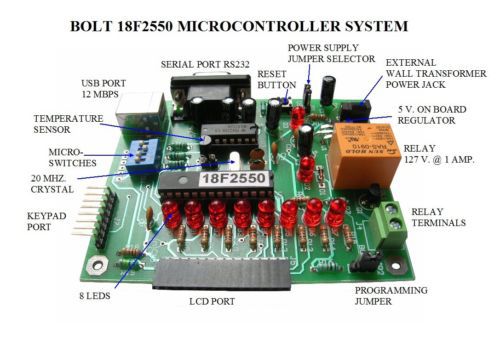

Bolt 18F2550 system Microcontroller development board kit. 48 Mhz, high performance multifunction system with embedded USB port, RS232 serial port, LCD 16 x 1 display, keypad (16 key), digital temperature sensor and more. *** New project: Controlling Bolt 18F2550 board from a mobile, using a bluetooth link *** OVERVIEW Bolt 18F2550 system was specially designed for use in a wide range of applications: as a trainer kit for learning of microcontroller systems, useful to students and teachers in technical careers or degrees in Electronics, Control, Computers, Mechatronics and Embedded Systems, or as development module in instrumentation, robotics, industrial control, communications, network monitoring and access control applications, among many others. Bolt module is based on the powerful high performance 18F2550 Microchip's multifunction microcontroller, with integrated USB v.2.0 port and may be programmed in ANSI C language. The 18F2550 has 28 pins DIL, which allows for a small card design, at a minimum cost. By means of a bootloader program, factory preloaded in its upper code memory, the Bolt 18F2550 system may be powered and programmed via its USB port. Power supply may be as well be fed through an external wall transformer. Everything you need -hardware and software- to develop new projects is included in the Bolt 18F2550 kit. Please go to our download page to get complete documentation and software for the system. Development Software: through the MPLAB IDE software (Windows 8, Windows 7, Vista, and XP compatible), and C18 compiler developed by Microchip, you can edit, compile or simulate programs in ANSI C. The executable .hex file generated by C18 compiler is compatible with the Bolt v.1.0.2 programming software. During the development phase, board is powered through the USB cable. Programming software: the system includes an special plug and play, easy to use programming software Bolt v.1.0.1 (Windows 8, Windows 7, Vista and XP compatible). You may transfer your compiled programs to 18F2550 FLASH memory directly through the USB port of your PC or Laptop. With this software you'll be able to program the whole 32 Kb of FLASH memory in less than 5 seconds. USB embedded port: Bolt 18F2550 system has a built in USB port that may be handled like a serial port from both sides: the microcontroller and the PC. This is done thanks to Microchip's USB stack and libraries provided for the microcontroller, and the windows drivers provided for the PC. We have a complete and well documented project that describes in detail how to send and receive USB data using simple ANSI C serial port likewise functions. Projects and test programs: we provide more than 15 projects, dozens of ANSI C and assembly language test programs for Bolt 18F2550 system, all developed in ANSI C using MPLAB IDE and C18 compiler. The projects are well documented, with complete block diagram, electronic diagrams and videos. Some examples are: an RFID detection system, a Bluetooth interface, a 7x10 led matrix display, and a GSM modem controller. Application PC software available: several of the mentioned projects use an special windows PC software developed in Visual Basic, Visual C++, or C Sharp, to control different options of Bolt 18F2550 system, including the handling of the USB port emulating a serial COM port. All programs have their source code available for users to use them on their own applications. Tutorials: Several tutorials with different hardware and C programming topics of Bolt 18F2550 system are as well available. Field applications: once the user has developed its project, and is ready for field applications, module may function without the need of the USB cable, using only an external wall transformer. Board includes a special power jack and an on card 5 volt regulator for this purpose (please see photos). In user mode, after power up, microcontroller will autorun application program. C18 libraries, functions and templates: you'll be able to use C18 templates, libraries and functions, available for all interfaces in module i.e. LCD, keypad, DS18B20 temperature sensor, USB port, serial port, EEPROM, A/D converters. This makes development of new applications fast and simple. Multifunction system: the system has ports for direct connection, without cables, of a 16 x 1 LCD display and an hexadecimal keypad (both included in the kit). It contains a serial communications port with complete RS232 interface, through which it is possible to perform remote control applications. It also includes a temperature sensor DS18B20 with its C18 functions available. Additional devices built into the module: a total of 13-bit input/output, 8 leds, 4 microswitches, 1 relay with 127 VAC, 1 amp. contacts; asynchronous and synchronous serial port USART. 18F2550 microcontroller contains also: SPI, I2C, 7-channel of A/D conversion with 10 bits resolution; 2 PWM generators, 4 timers, and a complete interrupt system. HARDWARE: Microcontroller: 18F2550-I/SP Microchip, multifunction, high-performance, 28-pin DIP, operating with 20 MHz external crystal. Effective speed of 48 MHz, thanks to on-chip PLL multipliers. Harvard architecture, with RISC set of 75 instructions. Word length of 16 bits in code memory. USB Port: v.2.0 compliant, 12 Mb/s. 18F2550 programming from PC or Laptop via this port. Power supply: selectable with jumper. Either 5 volts directly from USB port, or non regulated 7.5 to 12 v. from an external wall transformer (card includes a power jack and an on board 5v. 7805 regulator). User may also connect a rechargeable battery to the power jack. Firmware bootloader: preloaded, allows self-programming of FLASH memory using Bolt v.1.0.1 software. Using a jumper, the user may select either programming mode or autorun mode of operation. Memory: 32K bytes (16K words of 16 bits) FLASH, 2K bytes of RAM, 256 bytes of EEPROM. Testing devices: 8 leds connected as witnesses and 4 microswitches for emulation of digital inputs. Input/Output Ports: A total of 21 bits programmable either as inputs or outputs, with 25 ma. sink or source. Relay: on card. 127 VAC @ 1A contacts, with screw terminals and witness led. Power supply for relay may only be fed through the power jack for the external wall transformer to avoid inductive loads to the 5 volt USB signal. Digital temperature sensor: DS18B20, integrated on module, with a resolution of 0.1 degrees Celsius (easily converted to Farenheit). Timers: A total of 4 (16 bits), for generation of precision delays, real-time clock or event counters. USART serial port: for asynchronous communication, with standard RS232 interface and DB9 connector. Synchronous Serial Port: SSP with 2 modes, SPI Master/Slave mode and I2C Slave Mode. PWM (Pulse Wide Modulation): 2 special outputs to generate PWM with 10 bit resolution. A/D conversion channels: a total of 10 channels of analog-digital conversion with 10 bit resolution. LCD display port: 14-pin, 8 data bits, for connection to any standard LCD display. Keypad port: 8-pin connect to16-key hexadecimal matrix keypad. 6-pin auxiliary header for further expansion. Special functions of 18F2550: Watch Dog to prevent microcontroller out of operation. Brown Out protection circuit reset. Low Power Sleep mode. Power up automatic reset. Code protect. System interrupts: generated from multiple devices, including the state change from inputs, timers, USART, writing in EEPROM and 3 external interrupts. Consumption: nanoWatt technology with very low consumption, <60 ma. @ 5 volts. Dimensions: 8 x 9.5 cms., fiber glass, thru hole, high quality printed circuit board. SOFTWARE: MPLAB IDE v.8.89: for any Windows platform, Microchip's integrated development tool, which includes built-in editor, macroassembler, simulator and C language compiler. C18 Compiler v.3.42: Microchip's compiler which can be integrated into MPAB IDE environment. Software Bolt v.1.0.1: special bootloader plug and play software for this board, compatible with Windows 8, Windows 7, 64 and 32 bit and Vista or XP, for FLASH memory programming of 18F2550 in Bolt module, using its USB port. Projects and test programs: we provide dozens of test programs in ANSI C, (using C18 compiler) for each of the Bolt module interfaces and functions. Also included are numerous projects, and assembly language test programs for controlling the leds, microswitches and relay. Complete set of C libraries: libraries and functions are available for every interface: LCD, keypad, DS18B20 temperature sensor, USB port, serial port, EEPROM, A/D converters. This makes development of new applications fast and simple. System documentation: Bolt 18F2550 system download page Bolt 18F2550 system projects Bolt 18F2550 system tutorials Bolt 18F2550 system test programs Bolt 18F2550 system ANSI C functions and Libraries Bolt-18F2550-System-Programming-Software For more information please click here: www.puntoflotante.net/BOLT-SYSTEM.htm CONTENTS OF KIT: 1 Bolt 18F2550 board (assembled and tested), 1 LCD 16 x 1 display, 1 keypad (16 key), 1 USB cable. CONDITIONS OF ITEM: item is new. PAYMENT: payment is through PayPal. SHIPPING: Cost of shipping is free. We ship worldwide via standard international shipping. Time of delivery is 9 to 17 business days for the U.S. and Canada, and 14 to 22 business days for the rest of the world. We provide a tracking number. Package weight is 240 gr. We ship same day or, at most, 1 day after cleared payment received from PayPal. INTERNET TRACKING: In most countries, client will be able to track his/her package in the internet site of its local post company, with the guide number provided. RETURN AND REFUND POLICIES: If buyer is not satisfied with product, we accept its return within 14 days after delivery in its destination. Costs of shipping in this case are paid by buyer. We will refund 100% of cost. ONLINE HELP: We have english spoken qualified personnel ready to give any needed online help or guidance to our customers, everyday from 9 A.M. to 7 P.M. EDT, regarding the status of shipping and -after delivery of package- the functioning of hardware, software, or C programming of Bolt 18F2550 system. USER MANUALS: We provide full documentation and manuals for Bolt 18F2550 system, written in english (please download from table above). Spanish versions are also available. Microchip's MPLAB-IDE and C18 compiler manuals are written in english. Please use our english spoken ONLINE HELP if needed.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	Bolt 18F2550
Country of Manufacture	Mexico
