Brand New Portable Rockwell Hardness Tester C Clamp Small Hardness Meter Phr-4-3

US $1,193.00

Shenzhen, China
Jan 30th

Open on mobile:
QR code

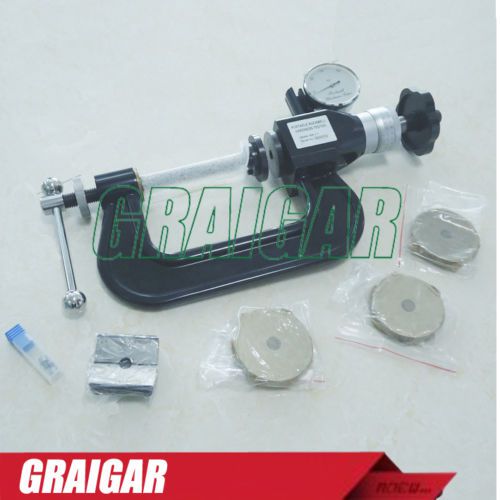

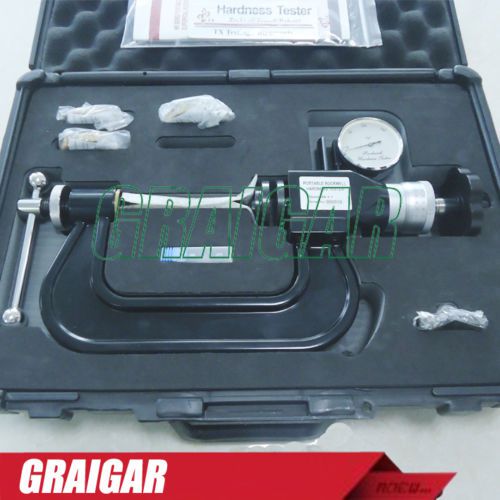

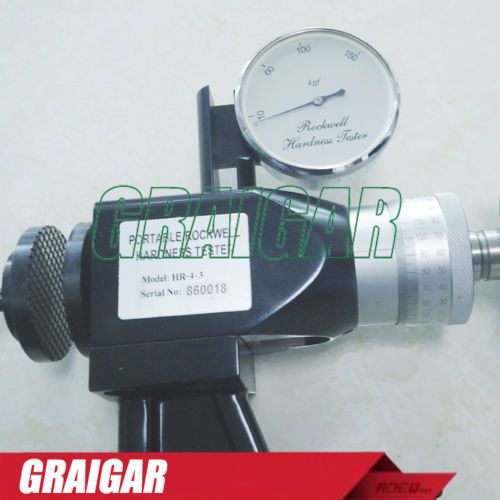

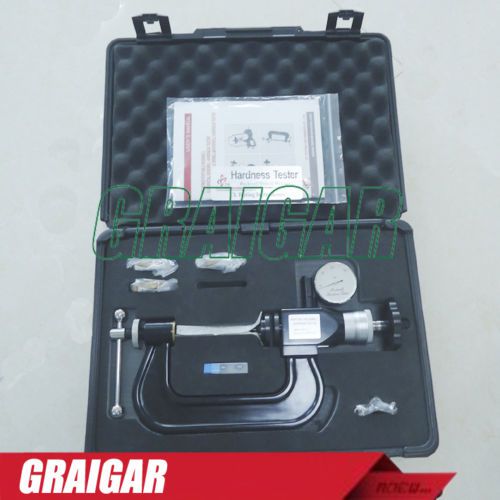

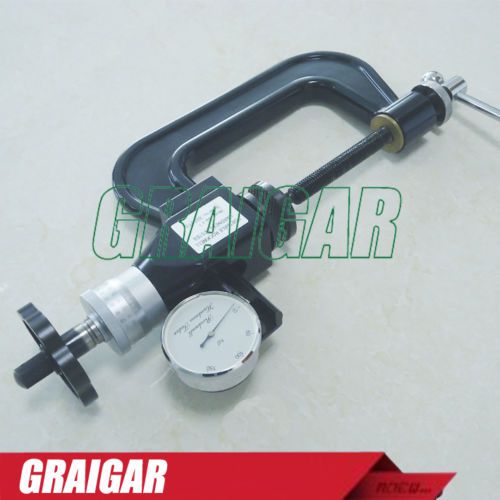

Brand new Portable Rockwell Hardness Tester C Clamp small Hardness Meter PHR-4-3 Introduction Can accurately test large and medium size workpieces on site. The testing principle and accuracy meet the requirements of ISO 6508 and ASTM E110, tested by National Institute of Metrology and the error is within 1.5HRC, same as the bench type. First clamp the workpiece, then apply the test force, stable testing with high repeatability and precision. Used for large and medium size moulds, shafts, rollers, tubing and all kinds of metal parts. Used for production inspection and acceptance inspection, replacing Leeb hardness testers with lower precision. Traceable standard hardness block. Indenter inspected with standard Rockwell hardness tester. Test force calibrated with load cells directly traceable to China national secondary Main Technical Parameters Initial Test Force: 10kg Total Test Force: 60kg, 100kg, 150kg Force Applying Method: By screw Indenter: 120°diamond cone 1.588mm carbide ball Accuracy: Meets the requirements of ISO6508 Resolution: 0.5HR Testing Range: HRA, HRB, HRC… HRV, etc. 15 scales. Application: All metals, including steel, iron, copper, aluminum,nickel,titanium, carburized steel,carbide alloy, etc. Application Large hardness tester is very stable with fine repeatability, but the operation is not as simple as small ones. Large hardness tester can be applied to large and medium sizeparts. When the workpiece is not suitable for the magnetic hardness tester, the best way is to test with large hardness testers. The large hardness tester is recommended to test the workpieces that can be tested by the small testers with 4 inches opening size. Standard Package Tester 120°diamond cone indenter 1.588mm carbide ball indenter 3 Rockwell test blocks Flat anvil V anvil Carrying case Optional Accessories 120°diamond cone indenter 1.588mm, 3.175mm carbide ball indenter 6.35mm, 12.7mm steel ball indenter Rockwell test blocks (HRA, HRC-High, HRC-Medium, HRC-Low, HRB) Model Speciment Size (WxD) (mmxmm) Net Weight (kg) Gross Weight (kg) Package Dimensions (mm x mm x mm) Remarks PHR-4-3 100x75 2.2~2.5 510x375x177 The first number in the model specification means the biggest opening width (inch), the second number means the biggest opening depth (inch). PHR-8-4 200x100 4.0 10.7 710x470x200 PHR-8-10 200x250 5.5 14.2 720x650x230 PHR-20-12 500x300 7.8 21.0 1020x760x240 Edited by ZACK PAYMENT INFORMATION: 1.We can accept Credit Cards,Paypal,T/T,Escrow and so on. 2.The buyer is responsible for any tax and/or duty charged by their country. INTERNATIONAL SHIPPING: The package will be shipped by DHL, FEDEX or EMS. After we shipped the parcel,we'll fill in the tracking number and inform you by e-mail.Please write the correct address and telephone number when you make orders,so the courier can contact you when they deliver the parcel to you. thanks WARRANTY INFORMATION: 1.All the products have been checked and packed in good condition before dispatch. 2.All the products with one year warranty. 3.If you find any quality problems,please send it back within 3 days,and we'll send you a new one or refund you the payment after we get the returned one. 4.Buyers have to pay for the return cost and we will pay the cost for resend 5.All products returned should be in new conditions. CONTACT US: Office Tel: 008675527541660 Cellphone: 008615967476828 1.A good feedback is very important for our store,if you feel satisfied with our products,please give us positive feedbacks. 2.Please contact us before leaving any negative or neutral feedback,We will work with you to solve any problems.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Country/Region of Manufacture	China
Model	PHR-4-3
Manufacturer	Graigar
