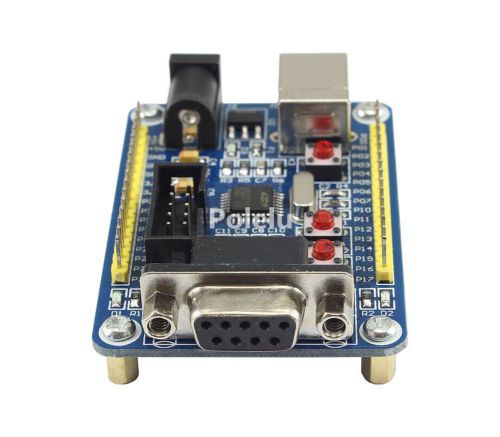

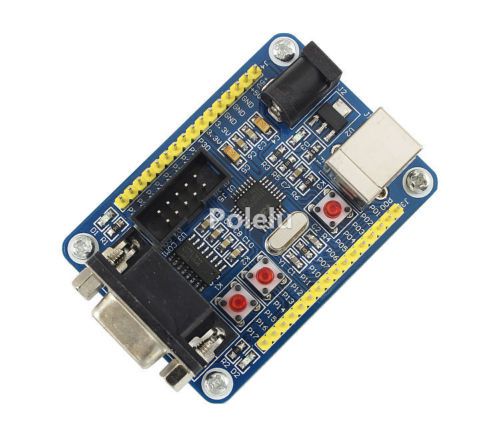

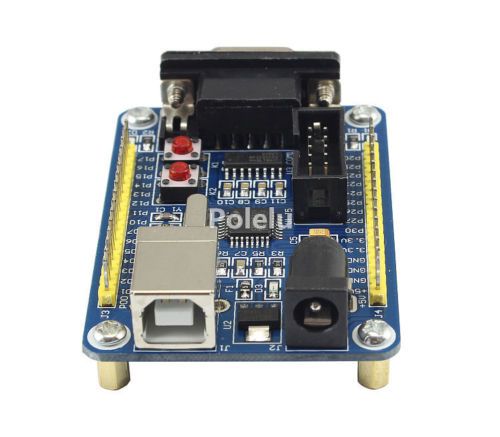

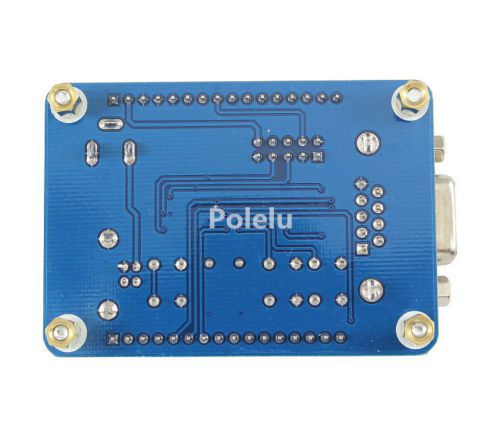

C8051F320 MCU Minimum System Board C8051F Learning Development Board With USB, US $350 – Picture 0

C8051F320 MCU Minimum System Board C8051F Learning Development Board With USB, US $350 – Picture 1

C8051F320 MCU Minimum System Board C8051F Learning Development Board With USB, US $350 – Picture 2

C8051F320 MCU Minimum System Board C8051F Learning Development Board With USB, US $350 – Picture 3

C8051F320 MCU Minimum System Board C8051F Learning Development Board With USB, US $350 – Picture 4

C8051f320 Mcu Minimum System Board C8051f Learning Development Board With Usb

US $350

GuangZhou, China
Jun 9th

Open on mobile:
QR code

C8051F320 MCU Minimum System Board C8051F Learning Development Board With USB Description Product Description: This is our production C8051F320 development board,compact and pretty in appearance. The Board resources include 1x reset button,2x user buttons,1x power indicator LED,two user programmable control of LED,1x standard DB9 serial port(female nut) Three kind of power supply: 1.Use USB cable power. 2.Emulator JTAG port power supply (JTAG). 3.External 5V DC power supply. Usage: 1.It can be used as learning board or as adapter plate which is directly uesd in the project to improve development efficiency. All I/O of The C8051F320 microcontroller are brought out to the pin header,each pin header has name corresponding to it,which is more convenient for you to use and reduce errors. 2.+5V,3.3V and GND also brought out to the pin header in order to do other experiments. 3.There are 3 buttons on the board,1x reset button,key1,key2 are user buttons. 4.External crystal frequency is 12M,please explain if you want to buy other frequency,User could use Microcontroller's internal oscillator,also could External crystal. 5.(Default shipping)Pin Header install on the face as picture(In this way user is easy to use Dupont Line to connet external functional circuit module), according to customers requirements also attach row pin header to the back or without welding pin.Please explain or leave a message when you order. ( The advantage of attaching row pin header to the back,it can be directly inserted in the general-purpose board or as core board user use their own motherboard.) Special note:C8051 MCU is via JTAG / C2 interface to download the program,it need to buy other emulator or downloader to use together.On our shop,you could choose emulator if you have not. Package list: 1. 1 x Minimum system C8051F320 2. 1 x USB-powered data line 3. 1 x PDF(Product introduction in English) will send by email if you need. Payment We only accept PayPal. Payment must be made within 7 calendar days of the auction end time. We reserve the right to cancel your order if the payment is not made within 7 calendar days of checkout. We will use your Ebay/Paypal shipping address as the delivery address. Please make sure to provide us with correct and detailed shipping address. To Russia, please the receiver name must write your full name as post office required. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Shipping Detail All the items to USA will ship via ePacket with tracking number. To UK and Australia the buyer can choose "Expedited Int'l Shipping", we also will ship via ePacket with tracking number, it is better than registered mail,usually delivery time is 7-20 business day. But to Australia ZIP code 2898/2899/6798/6799/7151 can NOT ship via ePacket. Other countries, total price below $30 we will ship your item without tracking number. Otherwise, if you need Registered Mail shipping, please add $2.5(Can choose "Standard Int'l Shipping",we will ship via registered mail). Usually all the items will be shipped via Hong Kong Post Airmail or China Post Airmail. If you need the other express way(EMS/DHL/FedEx/UPS),please contact with us for the correct price. Your order will be dispatched within 2 business days after the full payment is cleared. Airmail Packets' Delivery Time(reference only): USA,Australia,New Zealand,Southeast Asia, East Asia. 7-20 business days. Most European countries (France,Spain,Germany,UK,Sweden, Norway, Denmark,Netherlands,Austria,Portugal, Croatia, Finland, Switzerland, etc.) ,Canada,10-25 business days. Some remote city will take more than 25 business day. Italy,Russia, Brazil, Turkey, Ukraine, India, 14-35 business days, 90% take long time. Eastern Europe,West Asia,Central Asia, 15-30 business days,80% take long time. Africa,Chile,Argentina,Mexico,Other Countries. 15-40 business days,usually long time. Delivery time depends on postal process and other factors(Weather,Vacation,Customs,etc.),it can receive as fast as 7 days,but it can take as long as 4-7 weeks in some cases. If you do not get your item in reference delivery time, please contact us first through ebay message (Please do NOT open any case), we will reply you as soon as possible(within 24 business hours). Return Policy Please contact us before you leave Negative or Neutral Feedback if you are not satisfied with our products,we will resolve it asap. DOA(Dead On Arrival) or Wrong Item will be offered exchange. Refund will be offered if stock is not available Defective goods must be returned within 30 days after receiving it for exchange or refund. Buyer is responsible for return shipping cost in any situations. Contact us Please feel free to contact us from ebay if you have any questions , we will reply you within 48 hours except the weekends and public holidays. Please contact with us before you leaving Negative or Neutral feedback, and please DO NOT open any case, we will try my best to resolve your problems ASAP.
