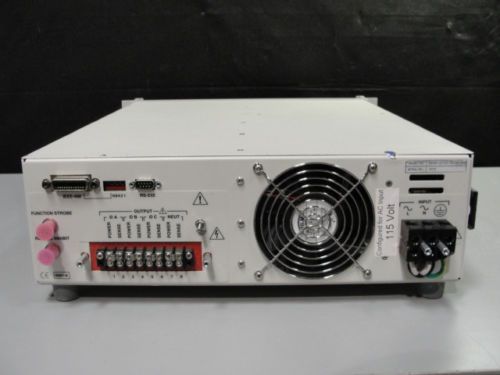

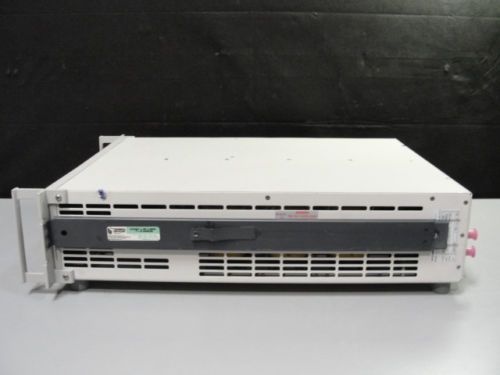

California Instruments 2003rp Ac Power Source, 2000va, 3 Phase + Opts Av L22 Op1

US $9,715.00

Oceanside, California, United States
Jan 29th

Open on mobile:
QR code

CA INSTRUMENTS 2003RP DESCRIPTION The California Instruments 2003RP AC Power Source is suitable for a wide variety of 3-Phase applications. The 2003RP AC Power Source can be used throughout the globe with its universal input and provides a convenient source of variable utility power for testing domestic and commercial equipment. In addition, the frequency range extends to 5000 Hz, making the R2003RP ideal for a wide range of avionics and defense applications. Accurate measurement functions are available as an option to eliminate the need for external test equipment in many test setups. Voltage, current, peak current, power, and power factor for each individual phase output can be read on the large LCD display or over the bus. A programmable current limit function provides overload protection of the unit under test. As an affordable and reliable source of three phase, 400 Hz power, the 2003RP is well suited for commercial and defense avionics applications. In addition to the standard 2003RP, a special avionics version is available (-AV option). This version increases output current from 5.0 ARMS to 5.8 ARMS per phase at 115 VRMS. The 2003RP-AV uses high frequency output transformers and offers a lowest output frequency of 360 Hz. The weight of the 2003RP-AV is 10 % less than that of the standard unit. With the addition of option package -OP1, the 2003RP is capable of producing transients with a high degree of user programmability. Setting up transient programs is facilitated by a Windows™ Graphical User Interface program that allows amplitude, frequency and event duration to be programmed from a PC. Time resolution is 1 ms (0.001 sec) with a minimum time interval ranging from 1 to 40 ms, depending on the transient type. Maximum transient time intervals are 9999 seconds. Transient programming allows the effects of common line disturbances such as phase loss, voltage surges, sags, drop-outs and frequency fluctuations on the unit under test to be evaluated. Features and Specifications of the California Instruments 2003P AC Power Source includes: Features: Compact AC Power Easy to Use Controls Simple Front Panel Operation Ideal for a Wide Variety of Test Applications and Product Evaluation Ideal for Commercial and Defense Avionics Applications Remote Control Option Current Measurement Function Eliminates the Need for an External Current Shunt or Transformer Load Current of the Unit Under Test can be read directly on the large LCD display Specifications: Controller: Type: Programmable Controls: Digital Encoders Readouts: dual 4 digit LCD Output Ratings: No. of Phases: 3 Phase Phase Angles: A = 0°, B = 240°, C = 120° AC Power: 675 VA Voltage: Range Low: 0 - 135V Range High: 0 - 270V Accuracy @ 16 - 100 Hz: ± 0.1 % FS Accuracy @ 100 - 2000 Hz: ± 0.2 % FS Resolution: 0.1 V Load Regulation: ± 0.1 % FS Line Regulation: ± 0.02 % FS Total Harmonic Distortion @ 16 -100 Hz: 0.5% typ./ 1.0% max Total Harmonic Distortion @ 100 - 5000 Hz: 1% typ./ 2.0% max Output Noise: < 0.1 V typical Frequency: Range: 16 - 5000 Hz Accuracy: ± 0.02% Resolution: 16.00 Hz - 80.00 Hz: .01 Hz 80.1 Hz - 800.0 Hz: 0.1 Hz 800 Hz - 5000 Hz: 1 Hz Current: RMS Current: High / Low V range: 2.5 / 5.0 A RMS Peak Current: High / Low V range: 7.5 / 15.0 A Protection Adj. Current Limit: Resolution Modes: 0.1 A RMS (Const. Current or Const. Volt) Over Temperature: Yes Over Voltage: Yes Input: Line Voltage 2 Wire + GND: 96 – 127V or 187 - 253V RMS Input Current: < 35 A RMS Line Frequency: 47 – 440 Hz Holdup Time: 10 ms Isolation: Input to Chassis/Output: 1350 / 2200 V Measurements: Current Range: 4 / 6 A RMS Current Accuracy: 0.2% A RMS FS + 0.3% rdng Current Resolution: 0.001 / 0.01 A RMS Peak Current Range: 12 / 20 A Peak Current Accuracy: 0.5 % FS + 0.5 % rdng Peak Current Resolution: 0.01 / 0.1 A RM Voltage Range: 0 - 300 V Voltage Accuracy: 0.1 % FS + 0.05 % rdng Voltage Resolution: 0.1 V RMS Power Range: 0 - 800 W Power Accuracy: 0.5% FS Power Resolution: 0.2 W Power Factor Range: 0.00 - 1.00 Power Factor Resolution: 0.01 Notes / Included Options: AV - Avionics Version (115V/230V, 360-5 kHz output L22 - Locking Knobs OP1 - Opt. Pack (Measurement functions, IEEE-488/RS232C, Remote inhibit, Strobe Output) *All of our equipment has been tested. Additional Calibration may be available upon request! ~Items sold with shown accessories, a power cord and manual on CD (when available)~ PAYMENT AND SHIPPING INFO Warranty Info & Return Policy All goods or equipment sold by AxiomTest include a 30-Day Domestic Warranty. Warranty period starts the day the equipment is shipped. AxiomTest will at its discretion, repair, replace, or refund the selling price for any malfunctioning equipment or goods, provided payment is made in due course, except in cases of improper application or misuse of goods or equipment by Customer. Shipping costs are not refundable. All goods or equipment sold by AxiomTest are subject to a limited 5-day Domestic ROR (Right of Return) unless otherwise noted. This ROR is limited to goods found to be non-acceptable due to cosmetic defect (not previously disclosed) or item not meeting manufacturer's spec as advertised. ROR does not apply to wrong item(s) ordered by customer. All items past the 5-day ROR period will be accepted only under written acceptance by AxiomTest. Customer agrees to pay all return shipping costs for any returned item. Items that are damaged in shipping are not covered under ROR terms. Items misused or damaged by customer's misuse (intentional or unintentional) are not covered by ROR. ROR does not apply to rental orders. Returns must be shipped with all original packaging and accessories. We will not accept any items with obvious signs of additional wear and tear or internal component alterations. All of our items will ship with “Warranty Void” tamper resistant stickers. If any stickers have been removed or tampered with your refund will be canceled. Please include your order number and a brief description as to the reason for returning the item(s). SORRY - RETURNS NOT ACCEPTED FOR ORDERS PLACED OR SHIPPED OUTSIDE OF THE U.S. Payment Options USA Bidders- PayPal, Money Order, Wire Transfer, Company Check, Personal Check or Bank Check. All funds must be in US Dollars- no exceptions. Unsecured funds must clear prior to shipment (typically 7-10 days after I receive the funds). International Bidders: Wire transfer of funds (US dollars only- a $25 wire transfer fee will apply) and PayPal where available. NO CREDIT CARD PURCHASES ARE ACCEPTED. Shipping Unless noted otherwise, all shipments are processed via FedEx. If you would like to use your own shipping account or make alternate arrangements for pick-up please notify us at checkout. Saturday and Residential delivery may be available at an additional third party charge depending on the shipping method you choose. We now offer shipping outside of the United States. However, some international laws prohibit us from shipping certain items to certain countries. Additionally, not all countries are supported by our service provider. Our international rates are not always the best, so you may also elect to use your own freight/shipping account through FEDEX, UPS or DHL. We are not set up to ship via USPS, and we will NOT falsify any import documents for international orders - no exceptions. Additionally, your international order may have applicable duties and taxes for shipping an item into your country. Please contact us to accurately quote and invoice these fees PRIOR TO CHECKOUT. Please note: In all sales where an item is prohibited to ship internationally to a successful buyer, that buyer will be notified of non-shipment and a full refund will be made. We reserve the right not to ship any item internationally that is controlled by the US Department of Commerce’s laws and regulations and deemed non-shippable to that region of the world or to listed individuals. *eBay's International Shipping calculations do not include any additional duties, fees, or VAT that may be associated with importing this item into a foreign country - please bid accordingly* Sales Tax California residents will be charged sales tax if no resale or tax exempt form is submitted prior to payment. ******CALL (760) 806-6600 TO RENT THIS ITEM****** TRIED, TESTED...ACCEPTED.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Fully Tested and Guaranteed Working!”
