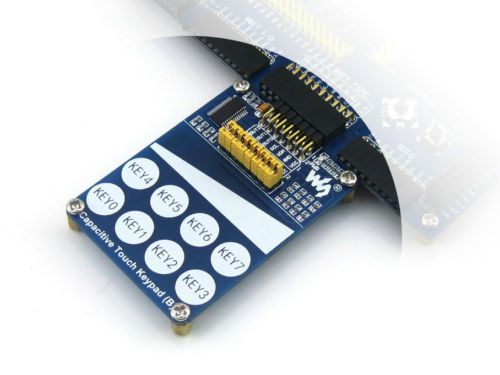

Capacitive Touch Keypad (b) 8 Touchkeys &1 Linear Touch Sensor Module Kit

US $10.99

Shenzhen, Guangdong, China
Jan 29th

Open on mobile:
QR code

This auction is for Capacitive Touch Keypad (B) 8 touchkeys and 1 linear touch sensor Features Onboard 8 capacitive touchkeys and 1 linear capacitive touch sensor Features TONTEK TonTouch touch pad detector IC TTP229-LSF, supports up to 16 keys with adjustable sensitivity and built-in LDO The system re-calibrates automatically when all keys are not detected touch more than about 4 seconds Configurable functions: 8 keys OR 16 keys option 8 separate outputs OR serial output single-key OR multi-kye feature Sampling rate and sampling length at sleep mode Maximum key-on time Specifications Interface : I2C OR I/Os Keys : 8/16 Sampling rate : 8Hz/64Hz Human Body Mode : 6KV Operating voltage : 2.4V-5.5V Operating temperature : -40°C to +85°C Storage temperature : -50°C to +125°C Dimensions : 4.7CM x 6.8CM Mounting holes size : 3 x 3MM How to Use After power-on have about 0.5sec stable-time. During the time do not touch the key pad, and all functions are disabled 16 keys mode : short all the onboard jumpers, output via serial port, and the linear touch sensor is enabled 8 keys mode : short the SLWPTM and WPSCT, open all the other jumpers, output via OUT0-OUT7 Applications Consumer Products Mechanical Switch/Button Replacement Photos Dimensions Package Contains Capacitive Touch Keypad (B) x 1 Downloads Development resources: demo codes, schematic, datasheets, etc. Click here to download Terms & Conditions Payment: · PayPal is the only method of payment that we accept. Shipping: · We ship items to Worldwide! · Please confirm your address in paypal, phone number is also very important. · All items will be shipped within 48 working hours on receipt of cleared payment. · We'll add a tracking number after sending the item so that you can track your parcel. Returns Policy: · We are happy to return any unused item in its original packaging within 14 days of delivery. · Buyers are responsible for the round(two-way) shipping cost. Feedback: · We'll leave POSITIVE FEEDBACK on receipt of cleared payment. · If you're satisfied with the item and our service, please leave POSITIVE FEEDBACK, it's important to us. · Once any problems occured, please contact us first. We'll try our best to work things out. FAQ: · More details(Click) If you have any question, please feel free to contact us. It's our pleasure to serve you! We appreciate your business!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Capacitive Touch Keypad (B)
Sampling rate	8Hz/64Hz
Model	Waveshare
Human Body Mode	6KV
Country/Region of Manufacture	China
Operating voltage	2.4V-5.5V
Interface	I2C OR I/Os
Dimensions	4.7CM x 6.8CM
Keys	8/16
