Cem Dt-175cv1 Single Channel True Rms Ac Current & Voltage Datalogger 600v Usb

US $254.00

Qingdao City, China
Jan 29th

Open on mobile:
QR code

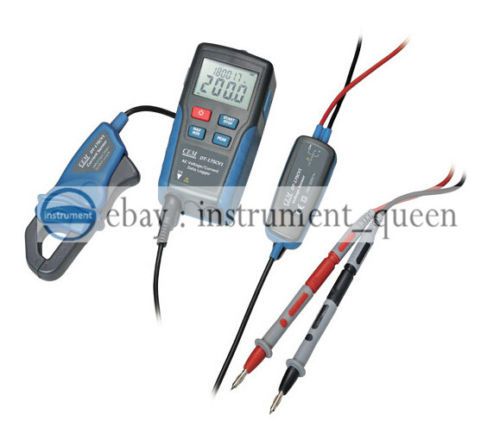

The 175CV1 is a datalogger for measuring and recording True RMS current and voltage. The readings are saved in the logger and simply read out by your PC via USB interface. The LCD can show current readings, MAX, MIN and sign of alarm. 1. Large capacity for storing measuring data points 2. ACA current clamp sensor (CP-09) 3. Voltage sensor measure the floating voltage to meet CAT III 600V 4. LCD to show some logging information easily. 5. Freely selectable measurement cycle from 1sec. to 24h 6. Download collected data through USB interface 7. Alarm display if user-defi ned maximum/minimum values exceed 8. Analysis software used to view graph for logging data Features: Channel input: Single Digital LCD Display ACV/Load current/Leakage current measurement True RMS measurement Data memory: 100,000 Wave memory MAX / MIN, Peak mode Time & Date Display Wave store Auto power off USB interface Manual and Automatic mode Specifications: Function Range Basic Accuracy DT-175CV1 AC Current (True RMS) 2-200A ±2% * AC Voltage (True RMS) 6-600V ±1.5% * Reading Memories 100,000 RTC Real time display,calibrated with software.(If the time is still not correct after power on again,please disconnect all the measurement,and switch off the meter.Open the back cover and replace the 3V button battery, and then recalibrate it.) Wave record Record the wave which exceeds the set Voltage/Current(764 data) Data output USB output MAX/MIN maximum and minimum reading hold Measuring rate 1 sec. to 24h Analysis software windows 98/2000/XP/Vista Size(HxWxD) 114mm x 63mm x 34mm Weight 248g Accessories: ACA current clamp sensor(CP-09) & Voltage sensor, USB cable, Software, 3.6V Lithium battery and gift box. Notice: The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.Thanks for your support! Shipping: We will ship all items within 1-3 working days upon receipt of payment,our goal is: ship it as fast as we can. To USA, Austrial,Canada 7-15 days by e-package, others Economy Shipping 15-45 days Expedited/Standard Int'l Shipping by Fedex,DHL,TNT ,UPS and EMS courier: To USA,need 3-6 business days,To other countries,need 4-8 business days normally.But sometimes int'l delivery is highly depended on the courier company and local customs/duties. Import duties and taxes are not included in the item price or shipping charges.These charges are the buyer responsibility. Warranty&Reture Policy: We encourage all customers to communicate with us through eBay messages. If you have any questions or comments whatsoever regarding our products or listing, we are waiting to hear from you A 1 year warranty is offered for this product.If the product malfunctioned under proper usage per instructions manual within the warranty period, please contact us to obtain shipping instructions and send it back at your shipping costs. 30 days evaluation and investigation takes placed after receiving your return item.A brand new replacement unit will be sent to you at our shipping costs if it meets our warranty requirements. On Nov-20-14 at 03:15:47 PST, seller added the following information:On Nov-20-14 at 08:14:14 PST, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	CEM
Country/Region of Manufacture	China
Model	DT-175CV1
