Chc X900+ Rtk, Gps, Glonass, Galileo, L1, L2, L5 Complete Set

US $12,499.00

Fort Myers, Florida, United States
Jan 30th

Open on mobile:
QR code

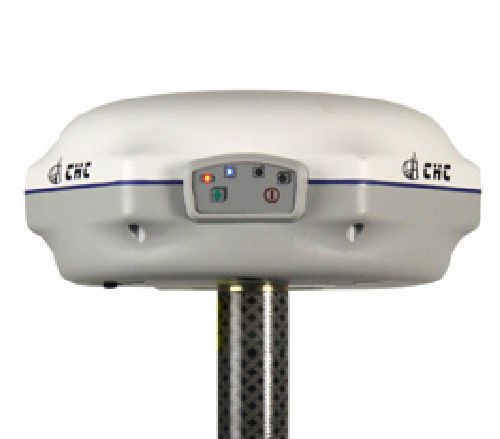

X900+ GNSS The X900+ GNSS receiver from CHC leverages the latest GNSS technology by integrating 120 channels tracking GPS, GLONASS, Galileo and Compass and field software dedicated to topographic and construction surveying. The X900 series is one of the most cost-effective GNSS receiver selected by large number of surveyors for its outstanding performances and reliability. ? Future proof 120 channel core GNSS including GPS, GLONASS, Galileo and Beidou tracking ? High performance GNSS RTK positioning covering wide range of applications ? Landstar or Carlson’s SurvCE Field data collection software scale to your survey need ? Integrated Bluetooth,GPRS and radio modem ? Innovative and rugged design built for harsh environment GNSS Characteristics 120-channel signal tracking GPS: L1, L2, L2C, L5 GLONASS: L1, L2 SBAS: WAAS, EGNOS, MSAS Galileo: E1, E5A, E5B (test) BeiDou: B1, B2 (optional) Advanced multipath mitigation technology Low noise carrier phase measurement Performance Specifications (1) Real Time Kinematics (RTK) Horizontal: 10mm+1ppm Vertical: 20mm+1ppm RMS Initialization time: <10s Initialization reliability: >99.9% Post Processing Static Horizontal: 5mm+1ppm RMS Vertical: 10mm+1ppm RMS Communications 1 RS232 serial port 1 high-speed USB Integrated Bluetooth ® class 2 Integrated GSM/GPRS modem CHC radio modem internal Rx 430-450/450-470 MHz Optional radio modem(2) Internal Rx/Tx: 403-473 Mhz External Tx DL5: 1W-20W adjustable Protocols RTCM2.1, RTCM2.3, RTCM3.0, CMR, CMR+ and RTCA NMEA0183 output RINEX and HCN outputs for GNSS raw data Data Storage 4 GB internal memory GPS device mounts as a USB external hard device Physical Size (LxWxH) 190 x 200 x 84 mm (7.5 x 7.9 x 3.3 in) Weight 1.4 kg with battery (49 oz) Working Temperature -40 °C to +65 °C (-40°F to 149°F) Storage Temperature -40 °C to +75°C (-40°F to 167°F) Humidity 100% condensation Dustproof IP67 Waterproof Protected from temporary immersion to depth of 1 meter, floats. Shock Survives a 2–meter drop on to concrete Electrical Typical power consumption 2.6W Battery capacity 2200mAh Operating times on internal battery Up to 6 hours typical External power input 9-18VDC Software(optional) CHC’s Landstar field data collection software Carlson’s SurvCE field data collection software

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	GPS
Model	X900+
