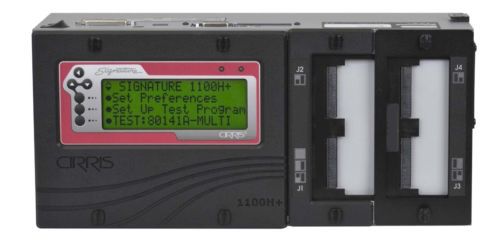

Cirris Signature 1100h+ High Voltage Cable Tester 1000vdc 128 Points W/usb Port

US $3,945.95

Vista, California, United States
Jun 9th

Open on mobile:
QR code

Used Cirris Signature 1100H+ High Voltage Cable Tester This unit works perfectly and is in excellent shape. Please ask any questions prior to purchasing as sale is final. No returns are accepted on this item. The Cirris 1100H+ is a compact cable tester able to test high voltage up to 1500VDC. With a large LCD screen and user-friendly interface, the Cirris 1100H+ has become an industry favorite. Assured Quality Up to 1024 points with add-on boxes (128 pts/box) Low-voltage continuity scanning Verifies the quality of solder and crimp terminations by checking for high-resistance connections. LCD screen and user-friendly interface 1500VDC Ideal for Testing Requirements Verifies insulation resistance up to 1000M?. Tests assemblies with passive components Resistors Diodes Capacitors Twisted pairs Tests for Opens Shorts Miswires 4-Wire “Kelvin” testing capable Determines which end of the cable has a problem Industry Favorite Test programs generated by self-learning a sample assembly Finds bad cables and detects latent manufacturing defects that can cause cables to malfunction in the future Test programs can be stored in the tester’s non-volatile memory for later use Automatically performs a low-voltage connection resistance test and a high-voltage (hipot) I.R./dielectric breakdown test The most popular high-voltage benchtop wiring analyzer in the industry Specifications: Test Points 128 points; expandable to 1024 points in 128-point increments Low Voltage Test 2 Wire Voltage: 4 V max Current: 3 ?A to 6 mA Resistance: 0.1 ? to 100 k? ± 1% ± 0.1 ?, 100 k? to 5 M? ± 10% 4 Wire Resistance: 4 V max Current: 1 mA to 1 A Resistance: 0.001 ? to 10 ? ± 2% ± 0.001 ? Component Tests Diodes: Silicon, LEDs, zeners with breakdown < 4 V Resistors: 0.1 ? to 100 k? ± 1% ± 0.1 ?, 100 k? to 5 M? ± 10% Capacitors: 5 nF to 100 ?F ±10% ± 0.02 nF Twisted Pairs: Verify proper pairing in twisted pair cables High Voltage Test Insulation Resistance Test Voltage: 50 to 1500 VDC ± 5% ± 5 V (2000 VDC optional) Resistance: 5 M? to 1000 M? ± 10% Dielectric Withstand Test Voltage: 50 to 1500 VDC ± 5% ± 5 V (2000 VDC optional, 50 to 1000 VAC optional) Current Limit: 0.1 mA to 1.5 mA Max Capacitance Per Net: 150 nF @ 300 VDC, 90 nF @ 500 VDC, 45 nF @ 1000 VDC, 30 nF @ 1500 VDC, 9.5 nF @ 1000 VAC HV Energy Limit: 35 mJ HV Charge Limit: 45 ?C Max Points Per Net 100 Digital Input/Output 4 Inputs / 6 Outputs, 24 V Open collector, +10 V and +5 V each current limited to 100 mA Test Point Interface Cirris Adapter System User Interface Display: 4 line x 20 character LCD Memory: Non-volatile storage of up to 99 test programs Optional PC control: unlimited memory and additional advanced features Power 115 / 230 V 50/60 Hz Size Main Unit: 14.25” x 6.75” x 5.25” (36 cm x 17 cm x 13.5 cm) Add-on Box: 6.25” x 6.75” x 5.25” (16 cm x 13.5 cm x 13.5 cm) Weight Main Unit: 9.7 lbs (4.4 kg) Add-on Box: 6.3 lbs. (2.8 kg)

“This unit was lightly used and is in excellent condition.”

Brand	Cirris
MPN	C110-H+
Model	1100H+
Test Points	128
