Cnc Kit 3 Axis For Nema16 Nema17 Nema23 Motor+breakout Board+3*m335 3.5a 30v Dc

US $96.39

Los Angeles, United States
Jun 9th

Open on mobile:
QR code

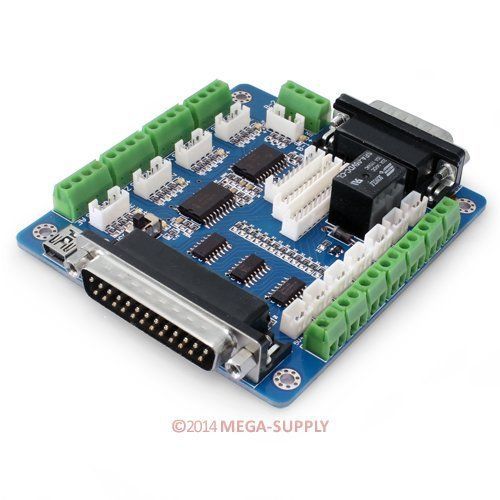

Frist-Supply World Shipping 7 Days Money Back CNC Kit 3 Axis For Nema16 Nema17 Nema23 Motor+Breakout Board+3*M335 3.5A 30V DC More.. ?TOP DIY CNC Kit 5 Axis Breakout Board + 3 x M335 Stepper Driver Board Controller(0.5-3.5A) Descriptions The latest upgraded 5 axis breakout board is specially designed for the CNC single axis 2-phase stepper driver controller. The breakout board uses high-performance three-state driver 74HC244 and Schmitt inverter 74HC14. The input signal is amplified, rectified, filtered to make the drive capability of the output signal more stable and stronger. With this 5 axis breakout board, any 1-5 Microstepper driver controllers can be directly controlled by the PC via the MACH3, EMC2, KCAM4, WinPc Light etc. parallel-control CNC software. The M335 is a high performance microstepping driver with low price. The M335 adopts single-chip PWM bipolar sinusoidal chopper to ensure low vibration and high efficiency. It is suitable for driving 2-phase and 4-phase hybrid stepping motors, so the Nema16, Nema17, Nema23 stepper motors with a 0.5A-3.5A current will be suitable. Click here for the specification of M335 In short, with this CNC Kit, you will get more benefits from the Kit on CNC work. Please purchase this kit with confidence. Features I. 5-Axis Breakout Board High performance, cost-effective. All the signals are opto-isolated which can protect your computer. 5-input interfaces for the Limits, Emergence-Stop, Cutter alignment etc. Wide input voltage range: 12-24V, and with anti-reverse function. One relay output control interface, accessed by the spindle motor or the air pump, water pump, etc. Output 0-10V analog voltage for inverter to control the spindle speed. II. M335 Stepper Driver Low cost, Non-creeping phenomenon under low speed. Low noise and non-resonant region. Supply voltage up to 30V DC. Output current up to 3.5A. Suitable for 2-phase and 4-phase motors. High speed optoelectronic isolation signal input. 1, 2, 8, 16 adjustable micro step control for more accurate and smoother motor running. Automatic idle-current reduction. Protection of power reversal. Applications Suitable for a variety of small sized automation equipment and instruments. Such as engraving machine, marking machine, cutting machine, laser typesetting, plotters, CNC machine tools, handling the devices. Suitable for a wide range of stepping motors, from NEMA size 16/17/23. Power Supply Selection Voltage Selection 12-24V DC power supply for Nema 16/17 stepper motors. 24-30V DC power supply for Nema 23 stepper motors. (High (≥ 30V) voltage will burn out the chips or stepper motors!!! Please be careful in choosing power supply.) Current Selection Output current of the power supply can be calculated by the following formula Output current = Rated current of your stepper motors x quantity + 2A If the supply current is too low for the drivers, it will easily burn the drivers. Please SHUT DOWN the power before you plug or unplug the connectors and adjust the DIP Switches to avoid burning up the board. M335 DIP-Switch Settings Microstep Resolution Setting Microstep resolution SW1 SW2 1 OFF OFF 1/2 ON OFF 1/8 ON OFF 1/16 ON ON Decay Mode Setting Decay Mode SW5 SW6 No Decay OFF OFF Slow Decay ON OFF Medium Speed Decay OFF ON Fast Decay ON ON Output Current Setting SW3 SW4 Full Current Auto Half Current Peak Current RMS Peak Current RMS OFF OFF 3A 2.14A 1.5A 1.07A ON OFF 2.25A 1.6A 0.6A 0.42A OFF ON 1.5A 1.07A 1.5A 1.07A ON ON 0.6A 0.42A 0.6A 0.42A Interface Instructions Connection Diagram ?TOP Electrical Properties of 5Axis Breakout Board(ambient temperature Tj = 25?C) Input Voltage Get power from PC via USB port and 12-24V power supply(optional) Drive type Pulse and Direction Signal Control Suitable Microstep Driver 2 Phase Microstep Driver Net weight Approx 75g Dimensions 90 * 70 * 20mm (L*W*H) Electrical Specifications Of M335 Microstepper Driver Input Voltage 12V ~ 30V(Peak) DC Output Current 0.5A ~ 3.5A (Peak) Drive Type Pulse + Direction + Enable Signal Control (Single-Chip PWM Bipolar Sine Chopper) Suitable Motor Nema16, Nema17, Nema23 Isolation Resistance 500MΩ Dimensions 97*75*35mm Operationg Environment & Other Specifications Of M335 Microstepper Driver Cooling Natural Cooling or Fan Forced cooling Operating Environment Environment Avoid dust, oil fog, corrosive gas Ambient Temperature 0 °C ~ 50°C (32°F ~ 122°F) Humidity 40%RH ~ 90%RH Operating Temperature 70°C (158°F) Max Storage Temperature -20 °C ~ 125°C (-4°F ~ 257°F) Total Weight Approx. 200g ?TOP Click here for the Mach3 software, Knowing about CAD/CAM/CNC Software, User Manual of This M335 Kit. ?TOP 3 Axis CNC Router DIY Kit 5 Axis Breakout Board TB6600HG Stepper Motor Driver 5AAUD 117.59 (Free P&P*) 4 Axis CNC Router DIY Kit 5 Axis Breakout Board 4* TB6600HG Stepper Motor DriverGBP 87.09 (Free P&P*) Shipping Payment Warranty Estimated Delivery Time (subjects to stock availability) USA (excl. Alaska, Hawaii, Puerto Rico) USPS First-Class Package/UPS Ground/USPS Priority 3-7 business days Other Countries (May depart from other stock location) International Airmail Service 12-21 business days Please DO CONTACT AND CONFIRM with us BEFORE you bid IF you: - need the item urgently. - require that the item should be delivered within a certain time. - have any other questions/requirements about delivery. Remarks: *Usually, your order will be dispatched before the next working day after the full payment is cleared when stock lasts. *Notification will be sent after your order is dispatched, please check you email or ebay order records for date of dispatch. *It is not guaranteed that parcel should arrive within the time stated above. However, 95%+ parcels will be delivered within the reference time. *Please contact us if you have any trouble in receiving your orders. We will help you to track them. PayPal: We accept PayPal (Allows you to pay by credit cards, debit cards or echecks securely with NO surcharge) * If you have difficulty to make payment by PalPal please contact us for alternative payment method. Remarks: *Please send payment within 5 days after auction ends. All sales are final, shipping and handling costs are also NOT negotiable. *We will use your PayPal shipping address as the delivery address. *Please make sure that your shipping address is correct. 30 Days Money Back Guarantee: Free Replacement: If you are not satisfied with the item purchased from us. Please inform us in writing(e.g. e-mail, eBay message, fax, letter) within 30 days of receipt of goods. We will guide you to return and refund the item. Please note that the postages / custom fees(if any) spended in such an order are on the customer's cost. If you receive a not-as-described (e.g. defective, incorrect, part missing) item, please contact us when you get the item. We will arrange a replacement as soon as the case is confirmed. Suppliers Warranty: Requirements: We offer ONE YEAR warranty on this product. If your item has any warranty issue please contact us for a satisfying solution. *All qualified returns/replacement must be guided by us. We may not accept your return without informing us in advance. *Customs fee, handling charge, postage and insurance are on customers cost and not refundable. Agreement: By placing an order, you acknowledge that you have accepted the terms and conditions of sale. You are welcome to contact us with any questions.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	HY
UPC	190080044756
MPN	100447501
