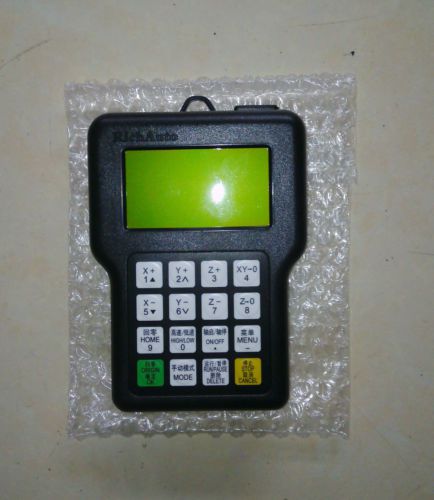

CNC router controller DSP, US $360.00 – Picture 0

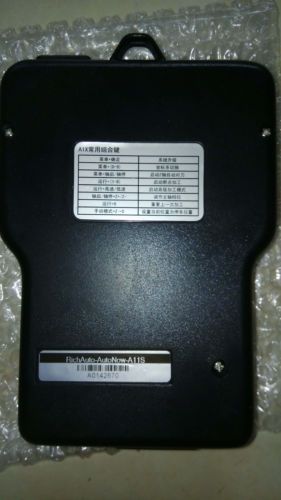

CNC router controller DSP, US $360.00 – Picture 1

CNC router controller DSP, US $360.00 – Picture 2

Cnc Router Controller Dsp

US $360.00

JINAN CITY , SHANDONG PROVINCE, China
Jan 29th

Open on mobile:
QR code

cnc router controller DSP Introduction: Perfect combination of high-speed and high-precision motion control is realized in the handheld CNC controller our company developed due to the special hardware structure and novel motion control algorithm it adopts. Traditional complicated NC operation become easy and simple because of its friendly HMI. USB interface make the data transformation very convenient. This series product has been widely used in machine caving, mold making, laser or plasma cutting fields. This user manual describes the characteristics and using methods of the CNC controller in detail. It is strongly recommended to read this manual carefully before using the controller. The common characteristics and cautions given below must be followed strictly! Characteristic 1. Totally independent from PC platform. 2. Directly read files from U Disk by USB host interface or get data from connected PC by USB slave interface. 3. Embedded mass storage memory allows many files to be saved in it. 4. The G-file pre-checking function can find file errors in time to avoid processing over scope. 5. Perfect self-checking function, including I/O, parameters, output pulses, zero coordination signals etc, makes remote maintaining possible. 6. Advanced functions, for example, multi-processing and area-processing, make the process operations more flexible and convenient. 7. Intelligent forecasting algorithm guarantees the processing precision and speed. It also makes the process more smooth, and reduces mechanical vibration. 8. Support linear interpolation, circular interpolation and spline interpolation. 9. Friendly HMI, high contrast LCD, Support Chinese and English language, menu and graphic display style. Operation is simple. 10. Automatic update. 11. Reliable power down protection and data restore function. Specification contents Parameter Processor 150MHz DSP File Memorizer 128M memorizer inside, it supports file with any size because of adopting mobile memorize technology Display LCD with 128 dot*64 dot Communication Terminals USB terminal and U Disk File Format G code Axes 3 axes Help Function Useful help information and guide Languages Chinese (optional or customize) Operating Interface Friendly Buttons and Menu Drive Drive System Step Motors interpolation function linear,Circular least counting resolution 0.001 least Input increment 0.001 programmable 64000 mm/max.fastest speed rate 1-64000 linear acceleration/deceleration Yes longitudinal and Tapered thread Yes Measurement and loading of the tool dimensions in the offset table Yes Spindle Control Function Yes System Data Inspect Function Yes Processing Data Inspect Function Yes Processing Position Adjusting Function Yes Multi Working Coordinates Yes Stop Point Reprocessing Function Yes Copy Processing Function Yes Data protection when power off No Working Temperature 0°C to +70°C Humidity

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	AUTORICH
Country/Region of Manufacture	China
Model	A11S
Country of Manufacture	China
