CNC USB 3 Axis 1Mhz Mach3 Motion Controller Card Interface Breakout Board E-CUT, US $119.90 – Picture 0

CNC USB 3 Axis 1Mhz Mach3 Motion Controller Card Interface Breakout Board E-CUT, US $119.90 – Picture 1

Cnc Usb 3 Axis 1mhz Mach3 Motion Controller Card Interface Breakout Board E-cut

US $119.90

Hong Kong, China
Jan 29th

Open on mobile:
QR code

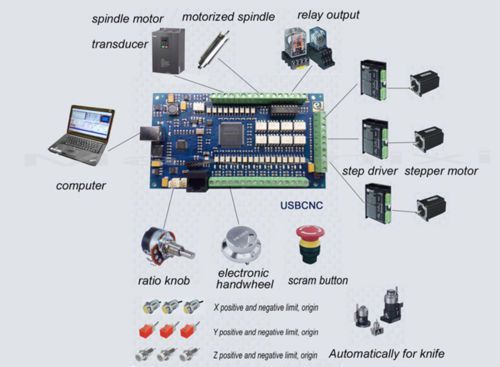

CNC 3 Axis 1Mhz Mach3 USB Motion Controller Card Interface Breakout Board E-CUT product description Item Description: Features: 3 axis version , Input : 24V , Supports all Mach3 versions, including the Mach3 R3.042.040 version. Supporting Windows series, no need to install any USB drivers and plug. Full support for USB hot-swappable, the card is Monitoring USB connection status at any time. Under the operation of Mach3,it can be reconnect automatically after disconnect. Supports 4 axis linkage,including point to point move. Support auto tool zero, electronic handwheel and software limit, return differenceeliminating. 120M working frequency, Maximum step-pulse frequency is 1MHz, Perfectly drive servo and stepper motor in three ways: pulse / direction, CW/ CCW, AB quadrature output. Status indicator LED can be useful to show the USB connection, and working status by flashing. 16 general-purpose inputs, PNP or NPN input status can be configured in Mach3. 8 electronic switch outputs. Darlington open-drain output. Measures real-time spindle speed (Support the Hall element and quadrature encoder speed measurement, etc.) and spindle speed can be observed in March3 to perfectly support the application of spindle. Perfectly support the lathe spindle applications and other occasions, which requires precise spindle speed. Use external 12V-24V DC power supply to isolate USB and external port,and to make the system more stable. 11 high-speed optical couplers with 10MHz, and 24 general optical couplers (Total optocoupler reach to 35 )for isolating all of the input/output signals, isolation voltage up to 2KV 2 spindle export interface: accurate 0-10V analog output, supporting converter to control spindle drive; PWM output with 5V drop-down , providing PWM speed drive, CW/CCW output puls/dir output and quadrature output for servo or stepping driver. The output spindle can be configured into any axis of the 4 shaft through the software. 2 external adjustment-knob to adjust the processing speed ,spindle speed and manual mode processing speed. The 4 layers circuit board selected high-quality devices is exquisite. Interface Applications: Package: 1× 3 Axis E-CUT Controller Card 1× USB Cable 1× CD(include manual and software) Important Note: Our goal is to achieve 5-star rating of each transaction. If you are not 100% satisfied,PLEASE don't leave a neutral or negative but contact us by Ebay message or email First so that we can help you. Payment: We ONLY accept paypal We appreciate prompt payment and look forward to your business in the future. Shipping: Item will be shipped within 1-2 working days after full payment is received. We only ship to the approved address given in PayPal payment. Please make sure payment address in PayPal is correct. Any non-received items caused by invalid address registered on PayPal are not in our full refund or replacement policy. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. We ship to worldwide by post air mail it will cost about 15-20 business days!( Holliday time may longer cause post office need process more packages) Return Policy: In the unlikely event that a return is request, all returns must include all original items undamaged, in re-saleable condition. Refund request is available within 1 weeK and Exchange request is available in 1 months after parcel received & returning the item as the same condition as received. About Us: Please contact us if the item has not arrived within 30 days for any reason. We reserve the right to refuse the order for all non-registered bidders which is reported from eBay. Please bid ONLY if you agree to the above terms. Your 5-star positive feedback will be highly appreciated.. Please contact us before leaving a negative feedback. We would try our best to help you solve the problem. Please allow us to reply your email within 1-2 Days. If there are any issues with the purchase, please contact us at ebay message or Email, We will reply you ASAP. Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	maxonixi
SKU	A107
