Concrete Mixer 12 Cuyd - Plans To Build A 12 Yard Volumetric Cement Mixer

US $6300

Duluth, Minnesota, United States
Jan 31st

Open on mobile:
QR code

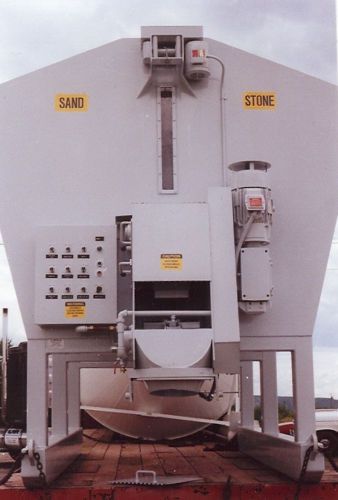

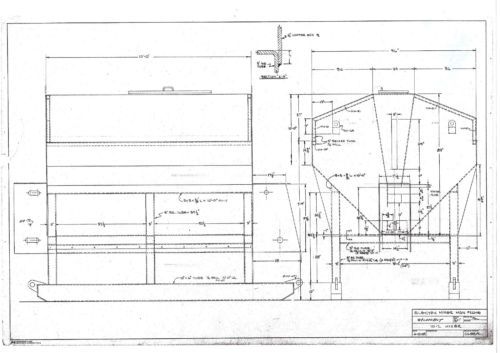

PLANS (Shop Drawings & complete instructions) ON HOW TO BUILD A CONCRETE MIXER 12 CUBIC YARD CAPACITY - VOLUMETRIC Concrete Mixer - You are purchasing a set of plans (blueprints) to build this mixer or have someone else build for you! START YOUR OWN PRECAST CONCRETE BUSINESS - SAVE MONEY$$$$ AND BUILD YOUR OWN 12 CU YARD VOLUMETRIC CONCRETE MIXER YOU ARE PURCHASING A SET OF PLANS TO BUILD THIS MIXER...UPON COMPLETION OF AUCTION AND PAYMENT, PLANS WILL BE MAILED TO YOU ON CD IN PDF FORMAT VIA U.S.P.S. - WE HAVE MANY OTHER Concrete Equipment & Form PLANS AVAILABLE ON gizmoplans website just G@@gle us! Mix any amount of Concrete with a push of a button. Mix what you want, when you want. This Mixer is designed with simplicity in mind. Gravel and Sand bins on each side with the center bin holding the cement. Bottom feed chains pull the material out to the mixing auger. Mixing auger (screw) moves the material up and out the discharge end. No conveyor belts to wear out. For clean up, simply shut off the feed chains, start up the auger and wash it out. THIS MIXER IS A PROFESSIONALLY DESIGNED UNIT...IF YOU HAVE ANY FABRICATION SKILLS YOU WILL BE ABLE TO BUILD. IF YOU WERE TO PURCHASE THIS MIXER IT WOULD COST OVER $40,000.00 YOU HAVE THE PERMISSION TO BUILD THIS UNIT AND SELL IT AND MAKE EXTRA MONEY. PLANS TO BUILD YOUR OWN CONCRETE CEMENT MIXER. This is a Commercial type Mixer with professional construction plans. With this mixer one can go into business mixing and pouring concrete. Additional gizmoplans are available for the production of precast products.... such as ..Planters, Picnic tables, Benches, parking stop curbs, concrete steps, PLUS MANY MORE ON gizmoplans. These plans are complete with Bill of Material for all purchased parts, detailed piece part and assembly drawings. Mix what you want when you need it..Auger mixes the material as it is conveyed up and out. This mixer has electric drive motors but can be converted to hydraulic drives easily. Drive chains in the bottom of the hoppers feed the sand,stone and cement into the mixing auger.Water is then added into the Mixing auger. There are control gates to increase or decrease the amount of sand and gravel to change the cement ratio. GO INTO BUSINESS FOR YOURSELF WITH THIS PROFESSIONAL STYLE MIXER...EASY TO BUILD AT A FRACTION OF THE COST...COMPARE IT TO ONES ON THE MARKET FOR $40,000.00. MANY PURCHASE THESE PLANS AND HAVE SOMEONE ELSE BUILD THE MIXER FOR THEM, THIS ENABLES THEM TO SAVE MONEY ON SHIPPING AND LABOR. YOU CONTROL YOUR COSTS!! 1.) One-Man....Push button Operation provides continuous or intermittent concrete mix. 2.) Unique pre-mix unit gives total control & consistent concrete blend. 3.) Easy Loading Hoppers......Simple operating controls. 4.) Aggregate Hoppers...12 cubic yard total...one 6 cubic yard sand bin...one 6 cubic yard gravel bin. 5.) Cement hopper 55 bag capacity 6.) Mix up to 20 cubic yards of concrete per hour. 7.) Water supply 40 PSI...1” supply line. 8.) Mixing auger is 12” diameter and 12 feet long with replaceable wear liners. 9.) Electric winch for raising and lowering the mixing auger. 10.) Overall length...Including mixing auger is 22 feet....Overall height 10 feet..Width is 8 feet.....Approx. weight (empty) 8,000 lbs. Over 100 individual drawings Many pictures and Layouts Bill of Material and where to buy Large welding assembly layouts. Many Sub-Assemblies Complete Vendor list Many have converted these plans to hydraulic for use in areas without electrical power YOU ARE PURCHASING A SET OF PLANS TO BUILD THIS MIXER...UPON COMPLETION OF AUCTION AND PAYMENT, PLANS WILL BE MAILED TO YOU ON CD IN PDF FORMAT VIA U.S.P.S.
