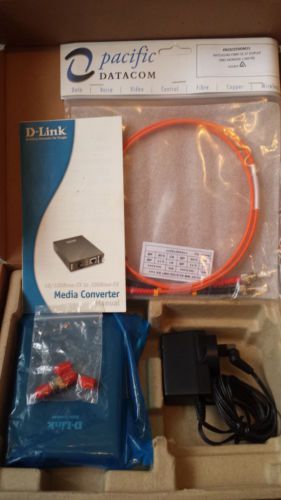

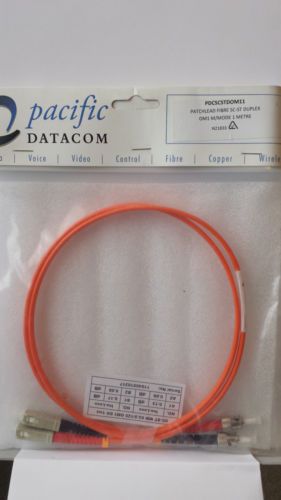

D-Link DMC 300 SC Media Converter / Pacific Datacom SC-ST Fibre Optic Patchlead, US $130.00 – Picture 0

D-Link DMC 300 SC Media Converter / Pacific Datacom SC-ST Fibre Optic Patchlead, US $130.00 – Picture 1

D-Link DMC 300 SC Media Converter / Pacific Datacom SC-ST Fibre Optic Patchlead, US $130.00 – Picture 2

D-link Dmc 300 Sc Media Converter / Pacific Datacom Sc-st Fibre Optic Patchlead

US $130.00

New Plymouth, New Zealand
May 7th

Open on mobile:
QR code

The DMC-300SC by D-Link® is a media converter designed to connect 10BASE-T/100BASE-TX copper to 100Base-FX fiber media and vice versa. Based on the IEEE 802.3 and 802.3u standards, the DMC-300SC is designed for use with multimode fiber cable utilising the SC-Type connector. The DMC-300SC supports shortwave (SX) laser specifications at a full wire-speed forwarding rate. Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-X, Auto negotiation of speeds and duplex modes on twisted-pair port, and front panel status LEDs. The DMC-300SC will transmit at extended fiber optic distances utilising multimode fiber up to 2 kilometers. Features One-channel media conversion between 10BASE-T/100BASE-TX and 100BASE-FX Fiber SC connector Auto negotiation of speeds and duplex modes on twisted-pair port Auto MDI/MDIX One slide switch for configuring fixed half/full duplex modes Store-and-forward mechanism Back-pressure & IEEE 802.3x Flow Control compliant Full wire-speed forwarding rate Front panel status LEDs Can be used as a stand-alone device or with chassis (DMC-1000) Hot-swappable when used with chassis (DMC-1000) Standards IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/FX Duplex Mode Full Duplex Mode LED Indicators Power, 100Mbps Speed, Full-Duplex/Collision, Link/Activity Cable 10BASE-T 2-pair UTP Cat. 3, 4, 5, up to 100m 100BASE-Tx 2-pair UTP Cat. 5, up to 100m 100BASE-FX: 62.5/125µm multimode fiber optic cable, up to 2km Physical & Enviornmental Dimensions (W x D x H) 3.5in x 4.7in x 1in (89mm x 119mm x 25mm) Weight .66lbs (.3kg) Power External power adapter 7.5V 1.5A Media Interface RJ-45, SC EMI Compatiblity FCC Class A VCCI Class A CE Class A Operating Temperature 32°F to 104°F (0°C to 40°C) Storage Temperature -13?F to 158?F (-25?C to 70?C) Humidity 10% ~ 90% Non-condensing Power Consumption 7.2 Watts (maximum) Warranty 2-Year Limited Warranty1 Ordering Information DMC-300SC 100BASE-TX to 100BASE-FX Multimode SC Media Converter

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	D-Link
Country/Region of Manufacture	Taiwan
Model	DMC 300 SC
