Datak Direct Etch Printed Circuit Board Etch Kit Complete Pcb

US $10.00

  • Pittsburgh, Pennsylvania, United States
  • Jan 29th
Open on mobile:
QR code

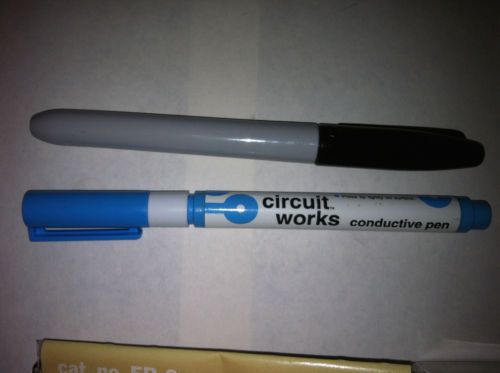

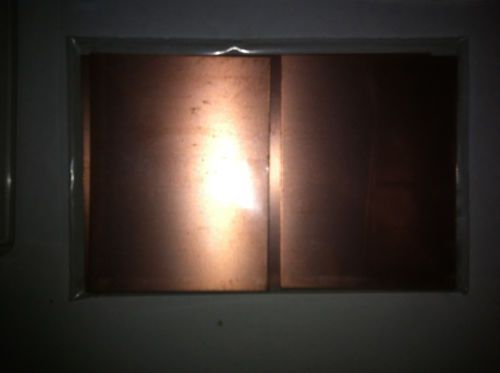

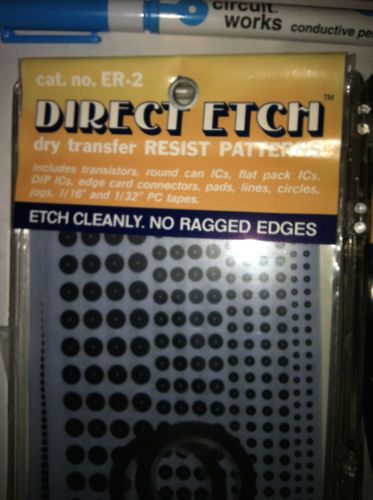

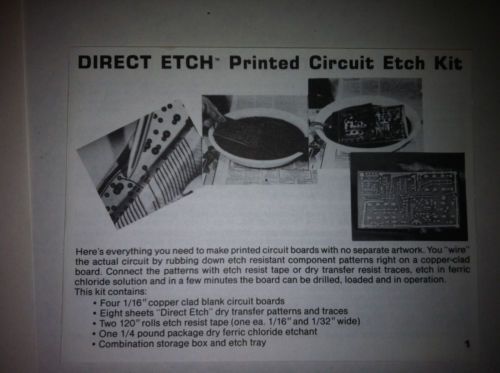

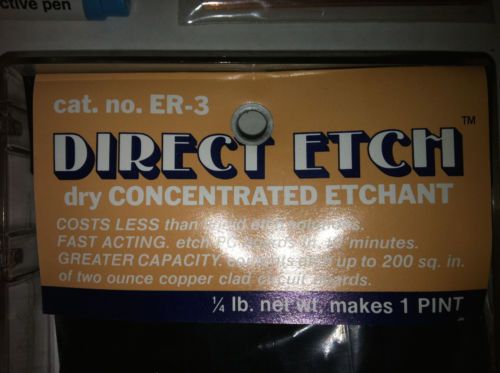

Datak Direct Etch Printed Circuit Board Etch Kit Here is everything you need to make printed circuit boards with no separate artwork.  You wire the actual circuit by rubbing down etch resistant component patters right on the copper-clad board.  Connect the patters with the etch resist tape or dry transfer resist traces, etch in ferric chloride solution and in a few minutes the board can be drilled, loaded and in operation. Kit contains: 2 - 1/16" copper clad blank circuit boards  3" x 4.5" 2 - 1/16" copper clad blank circuit boards 3" x 2.25" 8 sheets direct etch dry transfer patterns and traces 2 - 120" rolls etch resist tape (one each 1/16" and 1/32") 1 - 1/4 pould package dry ferric chloride etchant combination storage box and etch tray This auction also includes two bonus items of use in making circuit boards. 1 Direct Etch resist pen -This pen is filled with a lacquer ink that is impervious to aqueos PC etch solutions. Ideal for photo resist pattern touch-up or for direct-etched boards with tight spaces. Board must be clean for best results. 1 Circuit works conductive pen - Draw from point-to-point to create conductive silver traces on most surfaces.  Use Circuit works conductive pens on printed circuit boards to link components, repair defective traces, make smooth jumpers and shield delicate electronics. This material is highly conductive silver bearing thermoplastic designed o make solderable traces terminations and shielding.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand Datak
Country/Region of Manufacture United States
Model Direct Etch
