Dc 12v-36v 500w Brushless Motor Controller Hall Motor Balanced Car Driver Board

US $15.89

HONG KONG, Hong Kong
Jan 29th

Open on mobile:
QR code

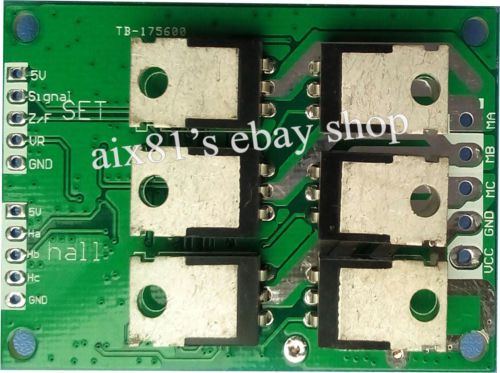

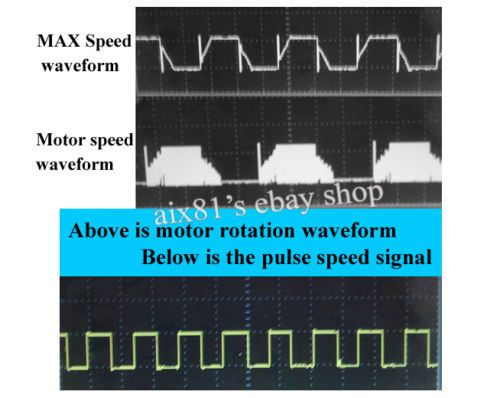

Welcome to my ebay store! You will find your favorite products. Pass by do not miss.thank you! Description Item description: 100% Brand new and high quality. Specification: Operating voltage : DC 12V-36V Operating Current : ≤20A Drive Power: ≤500W Over-current protection : Yes Steering control: Yes Speed control: Yes Size: 63*42.5*17mm (L*W*H) ; Pore size 3mm, length: fixing hole center distance 57mm; width: fixed hole center distance 36.5mm; SET for the control side: 5V, SIGNAL, Pulse signal output Z/F, steering control VR, speed control, GND HALL for the Hall terminals: 5V , Hall power positive Ha, Hall signal Hb, Hall signal Hc, Hall signal GND, Hall negative Wiring: Control terminal for SET: 1. The motor speed control wiring methods: Available potentiometer system speed can also be connected to the MCU control, when the potentiometer control wiring, the potentiometer middle pin is connected to VR speed port, potentiometer connected to both ends of 5V and GND terminal voltage more high speed faster. 2. Motor steering control wiring methods: you can switch control can also be connected to the MCU control, to GND in one direction, then in one direction 5V. 3. Pulse speed signal: high and low output. IC can not understand the information with the customer request. Hall signal inputs for hall: Wiring diagram is shown, one corresponding to the HA, HB, HC and on the motor, 5V power supply connected to the motor Hall signals positive, GND power supply negative signal to motor Hall Note: Due to different motor manufacturers to make the Hall of Hall line order does not necessarily follow the line on the board to match the sequence, need to be adjusted, please parents who pay attention! If the line sequence wrong, does not boot properly, current, or start other phenomena not open, forced to use the drive plate will burn! ! ! Motor driver board 12-36V DC power input, VCC positive power supply, GND power supply is negative. Electrical wiring methods: Brushless DC motor for the three lines, corresponding MA / U, MB / V, MC / W. Tips: If you use less than 60W, without additional heat sink, be sure to add more than 60W heatsink fins drive efficiency without lowering the temperature is too high will shine into permanent damage! The size of the heat sink may be a bad environment based work (recommended cooling surface area greater than 200 square centimeters)! When installing the heat sink, must pay attention to the back of the module 6 MOS pipe insulation, no insulation, it will be adhered to drive plate permanently damaged! Proposes to add insulation films, both sides of the insulating sheet plus thermal grease! Package Included: 1x 12V-36V 500W Brushless Motor Controller Feedback > We maintain hightest buyer ratings > Positive Feedback will be much appreciated from you. > Any dissatisfaction, please contact us immediately! > Please do not leave neutral or negative feedback before we help you out. Payment > We accept PayPal only. > All major credit cards are accepted through secure payment processor PayPal. > Payment must be received within 7 days of auction closing. Shipping > We Ship to Worldwide, except Hong Kong, Italy, Nigeria..... > Items will be shipped within one business day on payment received. > Items are shipped from China using Airmail, delivery time depends on destination and other factors,reach most of the countries within 10 to 35 business days. Country Shipping Way Shipping Time Tracking Number United States USPS(ePacket) 7-12 Yes Russian China Post 15-35 Yes Other Country HK /Swiss Post Air Mail 15-45 No Brazil / Africa HK /Swiss Post Air Mail 25-55 No Returns > Defect: We will fully refund or send you a new replacement,please contact and return within 14 days. > Dissatisfaction: Please contact within 3 days, we will fully refund, after got your returned goods. > Missing parts/Q'ty: Please contact us immediately,for a new package arranged,or a partial refund issued. Contact us > If have any question, Please contact us by ebay message before leaving neutral, negative feedback or open any dispute, we will reply within 24hours, ensure that help you solve the problem, make you satisfied. > Our Working-time From 8:30 AM to 21:30 PM(GMT+08). Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Operating voltage	DC 12V-36V / 24V
Drive Power	<=500W
Operating Current	<=20A
Type	Brushless Hall Motor Controller Driver Board
