Dc 24v 20w Brushless Motor With Encoder Cw/ccw Pwm Speed Control Brake

US $14.69

Hong Kong, Hong Kong
Jan 29th

Open on mobile:
QR code

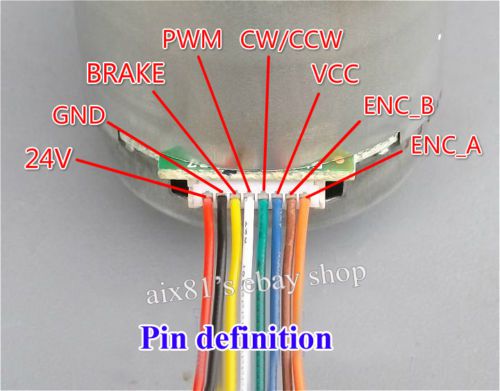

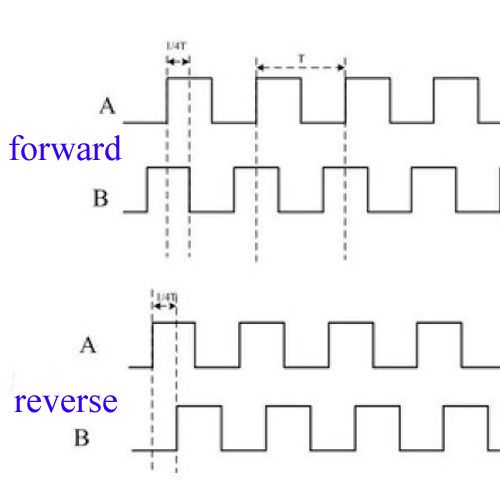

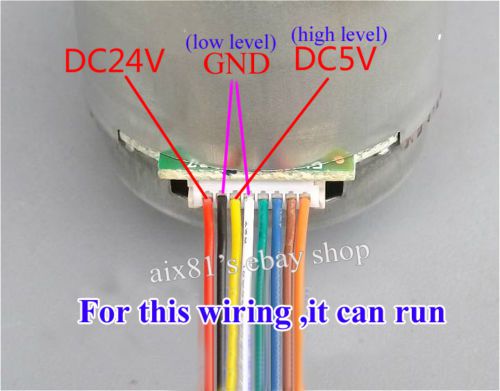

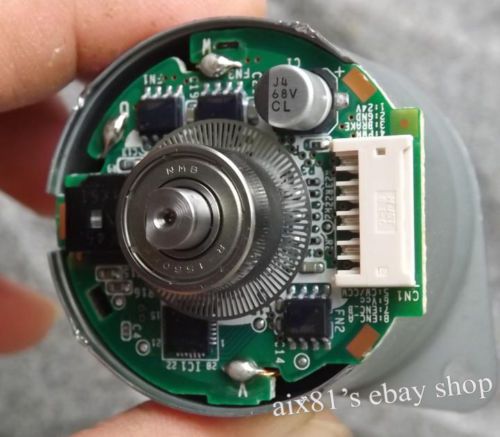

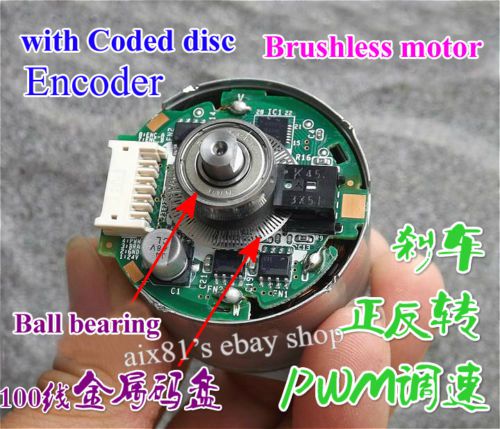

Welcome to my ebay store! You will find your favorite products. Pass by do not miss.thank you! Product Detail Description: 100% Brand New and High Quality The new NMB brushless motor with encoder, very high-grade brushless motor, built-in drive, front and back NMB brushless motor special ball bearings, 100 line metal code disc, can PWM speed, comes with brake, reversing control.Encoder output pulse pattern (as shown) Cable length: 14cm Weight: 180 g Pin definition: 1, [24V] motor drive power, DC15V-24V can be used 2, [GND] DC24V power ground and VCC 3, [BRAKES] brakes, low brake, high release 4. [PWM] external PWM signal speed control , the lowest frequency 330HZ, recommended 20-30KHZ 5, [CW/CCW] reversing control, high forward, reverse low 6, [VCC] encoder power positive, then the 5V power supply 7, [ENC_B] encoder B-phase pulse output ,can be directly read the microcontroller 8, [ENC_A] Encoder A-phase pulse output ,can be directly read the microcontroller Note: The high voltage is 5V, Low is the ground. After the purchase of non-professional staff test: no-load speed is about 6500RPM.pwm line adjusted speed ,with a 5V or 3.3V, the blue line VCC with a 5V or 3.3V , AB phase encoder (Data for reference only) Package Included: 1x DC 24V 20W Brushless Motor with Encoder Feedback > We maintain hightest buyer ratings > Positive Feedback will be much appreciated from you. > Any dissatisfaction, please contact us immediately! > Please do not leave neutral or negative feedback before we help you out. Payment > We accept PayPal only. > All major credit cards are accepted through secure payment processor PayPal. > Payment must be received within 7 days of auction closing. Shipping > We Ship to Worldwide, except Hong Kong, Italy, Nigeria..... > Items will be shipped within one business day on payment received. > Items are shipped from China using Airmail, delivery time depends on destination and other factors,reach most of the countries within 10 to 35 business days. Country Shipping Way Shipping Time Tracking Number United States USPS(ePacket) 7-12 Yes Russian China Post 15-35 Yes Other Country HK /Swiss Post Air Mail 15-45 No Brazil / Africa HK /Swiss Post Air Mail 25-55 No Returns > Defect: We will fully refund or send you a new replacement,please contact and return within 14 days. > Dissatisfaction: Please contact within 3 days, we will fully refund, after got your returned goods. > Missing parts/Q'ty: Please contact us immediately,for a new package arranged,or a partial refund issued. Contact us > If have any question, Please contact us by ebay message before leaving neutral, negative feedback or open any dispute, we will reply within 24hours, ensure that help you solve the problem, make you satisfied. > Our Working-time From 8:30 AM to 21:30 PM(GMT+08). Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Voltage	DC15V-24V
Type	Brushless Motor with Encoder CW/CCW PWM
Power	20W
