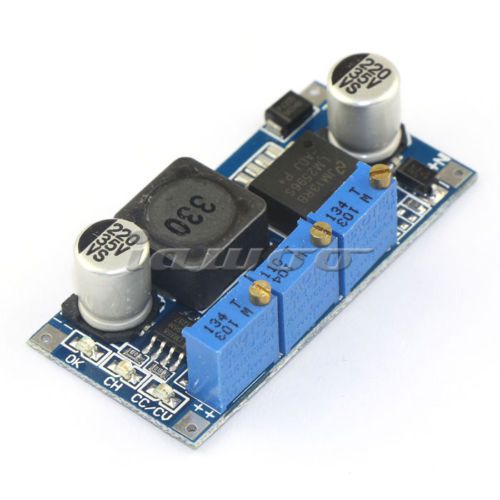

DC 7-35V to 1.25-30V Buck Converter Step Down Constant Voltage Current Regulator, US $7.48 – Picture 0

DC 7-35V to 1.25-30V Buck Converter Step Down Constant Voltage Current Regulator, US $7.48 – Picture 1

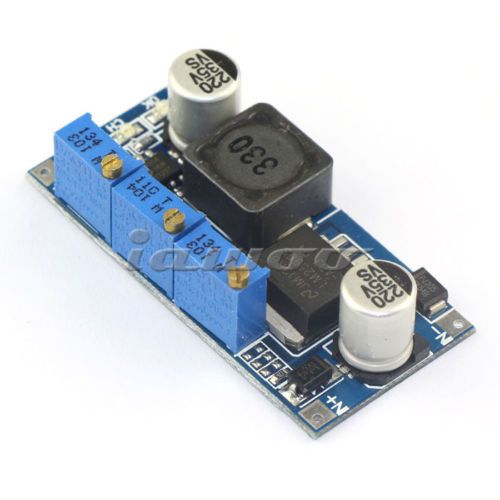

DC 7-35V to 1.25-30V Buck Converter Step Down Constant Voltage Current Regulator, US $7.48 – Picture 2

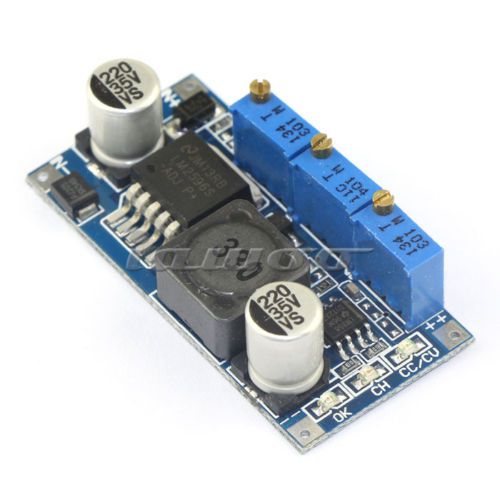

DC 7-35V to 1.25-30V Buck Converter Step Down Constant Voltage Current Regulator, US $7.48 – Picture 3

DC 7-35V to 1.25-30V Buck Converter Step Down Constant Voltage Current Regulator, US $7.48 – Picture 4

Dc 7-35v To 1.25-30v Buck Converter Step Down Constant Voltage Current Regulator

US $7.48

Guang Zhou, China
Jan 29th

Open on mobile:
QR code

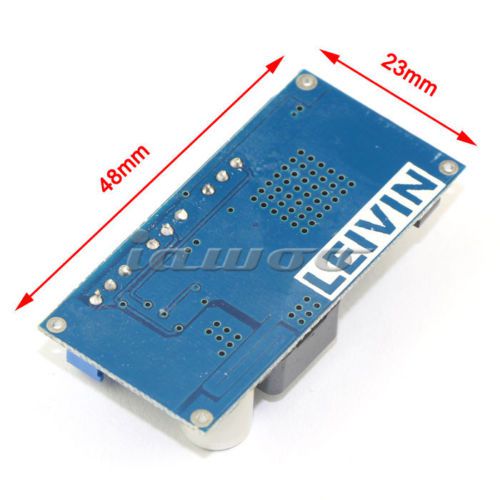

DC 7-35V to 1.25-30V Buck Converter Step Down Constant Voltage Current Regulator Charger Power Supply Module #090442 Description Feature: Module Properties: Non-isolated step-down module Rectification: Non-Synchronous Rectification Input Voltage: DC 7V-35V Output Voltage: DC 1.25V-30V ( Buck Mode, the input voltage must be 2V higher than the output voltage) Output Current: Adjustable maximum 3A Conversion efficiency: 90% Max. Switching frequency: 150KHz Output Ripple: 50mV (max) 20M Bandwidth Load Regulation: ± 0.5% Voltage Regulation: ± 2.5% Operating Temperature: -40 ℃ to +85 ℃ Dimension: 48 x 23 x 14 (L * W * H) (mm) If the power over than 10W, please install heatsink Battery Charging method: Make sure the recharge battery float voltage and charge current, input voltage of the module. adjust constant voltage regulator, the output voltage about 3V. With a multimeter ( to 10A) Measuring output Short-circuit current, Also adjust the constant regulator allows Output current reaches a predetermined charge current value; Adjust Constant regulator allows Output voltage reaches the float voltage; connected to the battery, try charging. (1,2,3,4 step input connect power, output do not connect battery.) LED constant current driver Usage: Make sure LED current and the maximum operating voltage; adjust constant voltage regulator, the output voltage about 3V. With a multimeter ( to 10A) Measuring output Short-circuit current, Also adjust the constant regulator allows Output current reaches a predetermined LED working current value; Adjust Constant regulator allows Output voltage Reach LED maximum working voltage; Connected to the LED, test. (1,2,3,4 take steps input connect power, output do not connected LED.) Package Include: 1x DC Converter Payment Method We accept only Paypal for both domestic and international. We will ship to the shown address on you PAYPAL Payment notice,Please confirm your shipping address in the PayPal Account. If buyer want to delay the payment because of financial problem, please contact me by the ebay message within 3 days. Shipping Detail Ship by Post Air-mail within 3 working days after full payment is received. The shipment usually takes 15-45 business days to Worldwide. We also provide international Expressed delivery such as EMS, DHL and UPS,extra shipping fees is needed. The shipping time may vary, depends on receiver's location. Feedback Policy We will leave positive feedback to buyer as soon as buyer pays for the item. Leaving Negative feedback or Netural Feedback is never a good way to resolve problem .We hightly appreciate that you can contact with us before you leaving Negative feedback or Neutral feedback .We will offer help to resolve your problems as fast as possible. Customer Service Work Time If you have any questions,Please contact with us via eBay message or our customer service e-mail . please be advised that e-mails will be replied by our customer services officers Mon. - Fri. 11:00 - 20:00 and Saturdays 11:00 – 15:00(Excluding Weekends and Public Holidays) You may expect to receive a response to your inquiry within 24 hours. (Excluding Weekends and Public Holidays) Engineered for professional eBay sellers! On Dec-10-14 at 14:15:12 PST, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Input Voltage	DC 7V-35V
Conversion efficiency	90% Max.
Output Voltage	DC 1.25V-30V
Switching frequency	150KHz
Output Current	Adjustable maximum 3A
