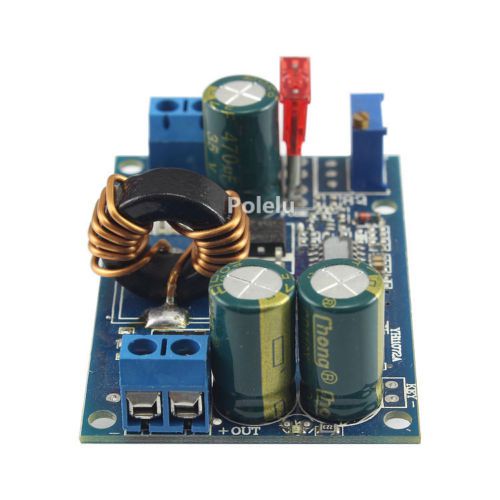

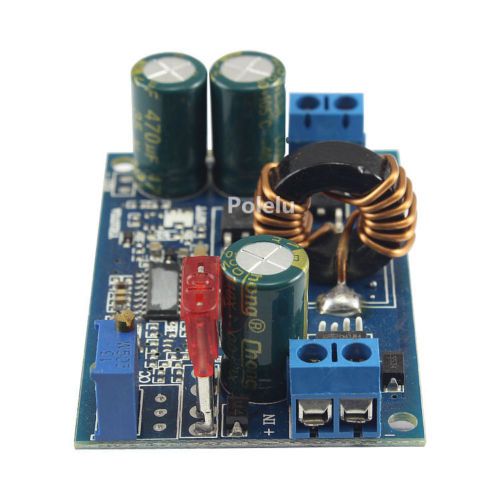

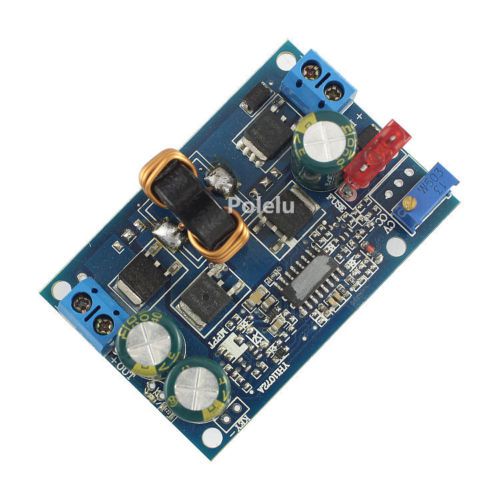

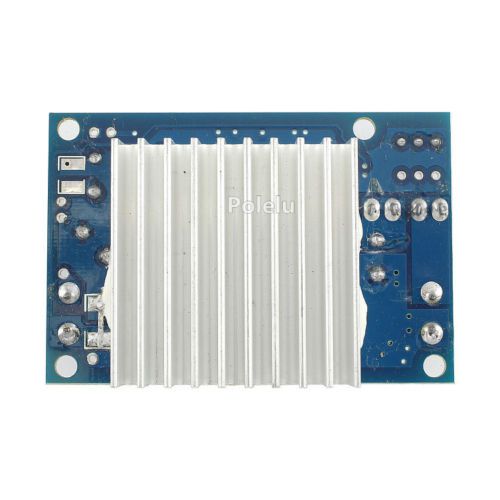

DC-DC 60W Auto Boost & Buck Converter Solar Wind Adjustable Voltage Regulator Description Specifications: Module name: 5A automatic lifting pressure module Module Properties: non-isolated synchronous rectifier Auto Boost Buck Module Input Voltage : DC 5-32V input Output voltage: 1.25-20V continuously adjustable (the default output 12V, the treasurer For other voltages please explain.) 1.25-20V fixed output (for volume customers) Default shipping adjustable output Input Current : 10A MAX. ( exceed 6A please enhance heat dissipation) Quiescent Current : 3mA the working voltage not while there will be error Output Current : 5A MAX the use of long time 3A, for greater output current, two modules used in parallel, such as output to 6A, you can use two parallel modules, the current of each module adjusted to 3.5A can be . Working temperature: -40°c to +85°c Operating Frequency : 150KHz Conversion efficiency : up to 96%(efficiency and input and output voltage, current, pressure related) Wiring: Terminals, Needn't solder, V-IN input, V-OUT output Overcurrent protection: Yes Short circuit protection: Yes (input 10A fuse) double short circuit protection, the use of more secure. Overtemperature protection: (automatically reduce the output voltage after overtemperature) Input reverse polarity protection: None, (if necessary, please enter the string into the diode) Installation: four 3mm screws Connection: welding output, (V-IN is the input, V-OUT output) Module dimensions: length 60mm width 40mm height 30mm Applications: This module can be applied to relatively large fluctuations in the input voltage, output requirements are relatively stable areas. Such as: 1, 10-14V to 12V battery float voltage stable 12V output. 2, for your electronic system to provide a stable working voltage at wide voltage input range. 3, the output of solar panels float voltage regulated output to charge the battery to prevent battery overcharge. 4, DIY a Regulated power supply, 12V input , 12-20V adjustable output Imported chip synchronous rectification,the original high-current low-resistance MOS pipe imports Kool toroid,bold full copper wire. The entire module lower heat,input 470uF / 35V high-frequency low-impedance electrolytic capacitors, output two 470uF/5V low-impedance electrolytic,another lower output ripple. Replaceable fuse, more reliable double protection 35 * 35 * 10MM thick aluminum radiator, power tube directly affixed to the back, better heat dissipation. Delivery list: 1 x DC-DC 60W Auto Boost & Buck Converter Solar Wind Adjustable Voltage Regulator Payment We only accept PayPal. Payment must be made within 7 calendar days of the auction end time. We reserve the right to cancel your order if the payment is not made within 7 calendar days of checkout. We will use your Ebay/Paypal shipping address as the delivery address. Please make sure to provide us with correct and detailed shipping address. To Russia, please the receiver name must write your full name as post office required. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Shipping Detail All the items to USA will ship via ePacket with tracking number. To UK and Australia the buyer can choose "Expedited Int'l Shipping", we also will ship via ePacket with tracking number, it is better than registered mail,usually delivery time is 7-20 business day. But to Australia ZIP code 2898/2899/6798/6799/7151 can NOT ship via ePacket. Other countries, total price below $30 we will ship your item without tracking number. Otherwise, if you need Registered Mail shipping, please add $2.5(Can choose "Standard Int'l Shipping",we will ship via registered mail). Usually all the items will be shipped via Hong Kong Post Airmail or China Post Airmail. If you need the other express way(EMS/DHL/FedEx/UPS),please contact with us for the correct price. Your order will be dispatched within 2 business days after the full payment is cleared. Airmail Packets' Delivery Time(reference only): USA,Australia,New Zealand,Southeast Asia, East Asia. 7-20 business days. Most European countries (France,Spain,Germany,UK,Sweden, Norway, Denmark,Netherlands,Austria,Portugal, Croatia, Finland, Switzerland, etc.) ,Canada,10-25 business days. Some remote city will take more than 25 business day. Italy,Russia, Brazil, Turkey, Ukraine, India, 14-35 business days, 90% take long time. Eastern Europe,West Asia,Central Asia, 15-30 business days,80% take long time. Africa,Chile,Argentina,Mexico,Other Countries. 15-40 business days,usually long time. Delivery time depends on postal process and other factors(Weather,Vacation,Customs,etc.),it can receive as fast as 7 days,but it can take as long as 4-7 weeks in some cases. If you do not get your item in reference delivery time, please contact us first through ebay message (Please do NOT open any case), we will reply you as soon as possible(within 24 business hours). Return Policy Please contact us before you leave Negative or Neutral Feedback if you are not satisfied with our products,we will resolve it asap. DOA(Dead On Arrival) or Wrong Item will be offered exchange. Refund will be offered if stock is not available Defective goods must be returned within 30 days after receiving it for exchange or refund. Buyer is responsible for return shipping cost in any situations. Contact us Please feel free to contact us from ebay if you have any questions , we will reply you within 48 hours except the weekends and public holidays. Please contact with us before you leaving Negative or Neutral feedback, and please DO NOT open any case, we will try my best to resolve your problems ASAP.
