Dc-dc Buck Converter 4.5-30v To 0.8-30v 5a For Solar Battery Led Drive With Pwm

US $280

GuangZhou, China
Jan 29th

Open on mobile:
QR code

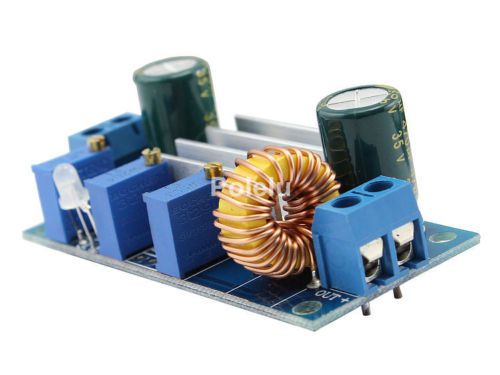

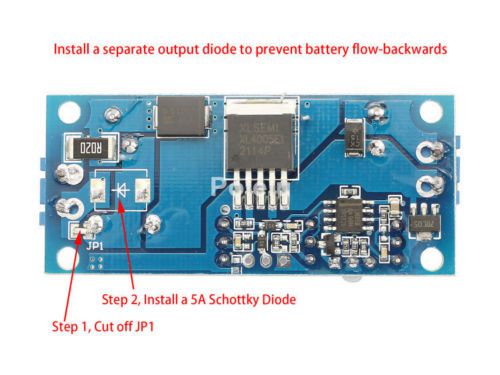

DC-DC Buck Converter 4.5-30V to 0.8-30V 5A Module Solar Battery Charger LED Driver with PWM Description Specification: Item name: 5A Constant voltage current module Module properties : non-isolated step down module (BUCK) Input voltage :4.5-30V Output voltage: 0.8-30V(continuously adjustable) Output constant current range: 0.1-5A (Default output :3A) Output turn lamp current range :0.1-5A (Default turn lamp current :0.3A). There will be a little bit error in the current range because of part parameter differences. Working temperature: -40~ +85 degree Working frenquency: 300KHz PWM control frequency range: 100-300Hz Transfer efficiency: Maximum 95% (Efficiency is related to the input,output votage,current and voltage differences.) Short-circuit protection: Yes ( The current limitation is the fixed constant current value.) Overtemperature protection: Yes ( The output will be automatically cut off once over tempreture occurs.) Input reverse connection protection : No Output flow-backwards protection: No ( A space is reserved for the current flowing backward.You can operate it by youself according to the instruction below) Charging indication: The light is red when charging and green when the electricty is full of . Installation: 4 pieces of 3mm screws Connection : Terminal . V-IN is input, V-OUT is output. Size: 60(L)*26(W)*20(H) mm Inspection for current is the low-end detaction. please do not connect in/output nagetive directly with wire. Application: DIY a stabilized voltage with consistant current,load pretection ,short circuit protection when using. Power supply for your electronic equicments. Charge for the battery. You can set a different voltage and volume for all the battery when charing,and observe the charing condition. Solar panels regulator. A solar panel power supply has a perfect protection fuction for the battery . High power LED drive. It can be charding for your mobile and digitals as a automotive electronic power supply Direction for setting voltage,current and turn lamp:( Please check the picture above ) Set output voltage : according to the value of battery floating voltage or serial/parellel LED voltage, adjust CV potentiometer, set the output voltage to your need. (No load connection) Set turn lamp current indication : After setting the output voltage, counterclockwise adjust CC potentiometer about 20 laps, use multimeter 20A grade short-circuit output, adjust CC potentiometer to you need turn lamp current, and then adjust turn lamp potentiometer(LED) to just green light. Set constant current value: after setting the turn lamp current, use multimeter 20A grade still short-circuit output, adjust CC potentiometer to your need current value. Attention: It is invalid that the voltage must be higher than 0.8V when setting current. Package included: 1 x DC-DC Buck Converter 4.5-30V to 0.8-30V 5A Payment We only accept PayPal. Payment must be made within 7 calendar days of the auction end time. We reserve the right to cancel your order if the payment is not made within 7 calendar days of checkout. We will use your Ebay/Paypal shipping address as the delivery address. Please make sure to provide us with correct and detailed shipping address. To Russia, please the receiver name must write your full name as post office required. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Shipping Detail All the items to USA will ship via ePacket with tracking number. To UK and Australia the buyer can choose "Expedited Int'l Shipping", we also will ship via ePacket with tracking number, it is better than registered mail,usually delivery time is 7-20 business day. But to Australia ZIP code 2898/2899/6798/6799/7151 can NOT ship via ePacket. Other countries, total price below $30 we will ship your item without tracking number. Otherwise, if you need Registered Mail shipping, please add $2.5(Can choose "Standard Int'l Shipping",we will ship via registered mail). Usually all the items will be shipped via Hong Kong Post Airmail or China Post Airmail. If you need the other express way(EMS/DHL/FedEx/UPS),please contact with us for the correct price. Your order will be dispatched within 2 business days after the full payment is cleared. Airmail Packets' Delivery Time(reference only): USA,Australia,New Zealand,Southeast Asia, East Asia. 7-20 business days. Most European countries (France,Spain,Germany,UK,Sweden, Norway, Denmark,Netherlands,Austria,Portugal, Croatia, Finland, Switzerland, etc.) ,Canada,10-25 business days. Some remote city will take more than 25 business day. Italy,Russia, Brazil, Turkey, Ukraine, India, 14-35 business days, 90% take long time. Eastern Europe,West Asia,Central Asia, 15-30 business days,80% take long time. Africa,Chile,Argentina,Mexico,Other Countries. 15-40 business days,usually long time. Delivery time depends on postal process and other factors(Weather,Vacation,Customs,etc.),it can receive as fast as 7 days,but it can take as long as 4-7 weeks in some cases. If you do not get your item in reference delivery time, please contact us first through ebay message (Please do NOT open any case), we will reply you as soon as possible(within 24 business hours). Return Policy Please contact us before you leave Negative or Neutral Feedback if you are not satisfied with our products,we will resolve it asap. DOA(Dead On Arrival) or Wrong Item will be offered exchange. Refund will be offered if stock is not available Defective goods must be returned within 30 days after receiving it for exchange or refund. Buyer is responsible for return shipping cost in any situations. Contact us Please feel free to contact us from ebay if you have any questions , we will reply you within 48 hours except the weekends and public holidays. Please contact with us before you leaving Negative or Neutral feedback, and please DO NOT open any case, we will try my best to resolve your problems ASAP. Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Input voltage	4.5-30V
Output current	5A
Output voltage	0.8-30V
Country/Region of Manufacture	China
