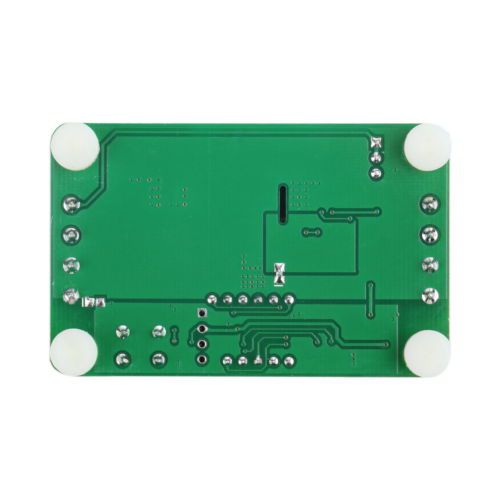

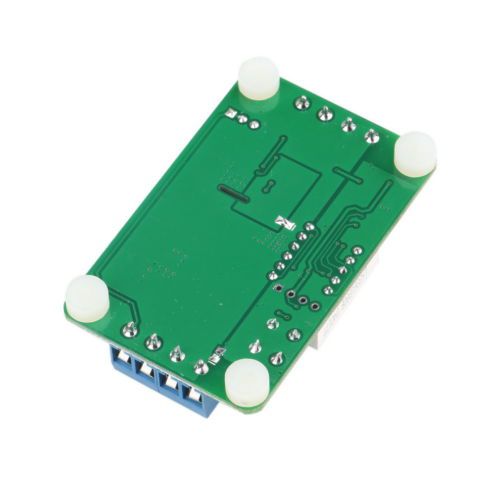

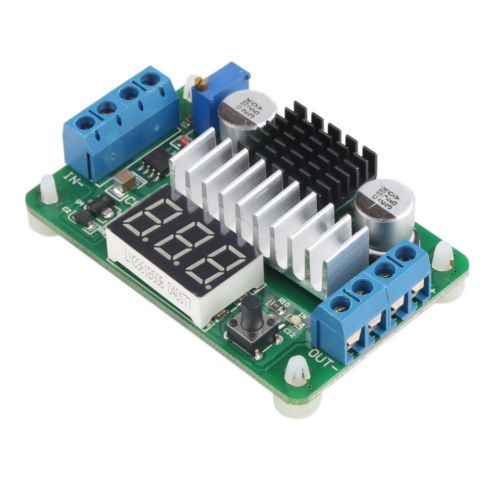

DC-DC LTC1871 Converter 3.5 to 30V 100W Boost Step-up Power Supply Module LED B5, US $8.28 – Picture 0

DC-DC LTC1871 Converter 3.5 to 30V 100W Boost Step-up Power Supply Module LED B5, US $8.28 – Picture 1

DC-DC LTC1871 Converter 3.5 to 30V 100W Boost Step-up Power Supply Module LED B5, US $8.28 – Picture 2

DC-DC LTC1871 Converter 3.5 to 30V 100W Boost Step-up Power Supply Module LED B5, US $8.28 – Picture 3

DC-DC LTC1871 Converter 3.5 to 30V 100W Boost Step-up Power Supply Module LED B5, US $8.28 – Picture 4

Dc-dc Ltc1871 Converter 3.5 To 30v 100w Boost Step-up Power Supply Module Led B5

US $8.28

HK, Hong Kong
Jun 9th

Open on mobile:
QR code

Specifications 1. Input voltage range :3.5-30V Note: 30V maximum voltage limit must be aggressive in order to avoid accidental damage. 2. Output voltage range :3.5-30V (boost mode, the input must be less than or equal to the output voltage). 3. Input Current: 6A maximum 10A output power: 100W. 4. Note: According to the law of conservation of power output current under nominal conditions. 5. UIN * Iin * efficiency = Uout * Iout (UIN: input voltage Iin: input current). 6. Size: 66mm * 42mm * 18mm Weight: 35 g / pcs. 7. The voltmeter accuracy: ?A (5 ?e +1 word). 8. Static power consumption: Typical 15ma (input voltage output voltage and the digital tube color is closely related to the actual current deviation). 9. IN +: Input the cathode IN-: Input negative OUT +: the output cathode OUT-: Negative output. Features: 1: input and output voltage can be alternately displayed. 2: switched on can be freely defined. 3: with a button to turn off the digital control function, reduce power consumption. Working mode: Output voltage mode: the default boot display ** output voltage mode. * LED indicator turns off Input voltage mode: press the switch once to switch to the input voltage mode **. * LED indicator lights Alternating pattern: Once again press the switch input / output voltage alternating 3S alternately display data (press again to return to the display mode of the output voltage) Operation and digital display description: [0] represents the default the boot display output voltage [1] represents the default boot display input voltage [2] represents the default open to input and output voltage are displayed alternately Long press the button more than 2S digital tube display more information (in this case the key is released), the module automatically remembers the current state of the default power-on state. The digital tube close operation: long press button 4s until the digital tube display the contents of the LED is lit, the display section has been closed. Press the button again to restore the display Data test (voltmeter turned on): 3.7V turn 5V/2A efficiency of 82.5% 5V to 12V/2A efficiency of 88.4% 7.4V turn 12V/2A efficiency of 90.2% 12V switch 18V/2A efficiency of 93.6% 18V switch 24V/2A efficiency of 95.3% 24V turn 30V/2A efficiency of 97.1% Summary: The higher the input voltage, the higher the efficiency. Close the voltmeter boost module will get higher efficiency. Package includes: 1 x DC/DC Converter Pictures Shipping Options We offer WORLDWIDE SHIPPING. (Except China, Italy, and Croatia) Orders will be processed and dispatched within 24-48 hours after payment is clear. We only ship to confirmed?eBay addresses. Your?eBay?address MUST MATCH your Shipping address. If you have not received your shipment within 30 business days from payment, please contact us. We will track the shipment and get back to you as soon as possible. Our goal is customer satisfaction! Please note that estimated delivery time is depended on destination countries, and may subject to customs clearance process, and weather condition in your area. Country Delivery Time (days) Not including Handling time, weekend, and holidays 9-12 13-18 19-24 25-29 30-35 >35 United States 5% 50% 30% 11% 5% Refund United Kingdom 10% 63% 19% 3% 4% Refund Australia 21% 50% 14% 7% 7% Refund France 11% 29% 44% 10% 7% Refund Germany 11% 22% 30% 21% 16% Refund Canada 0% 47% 31% 18% 4% Refund Spain 4% 25% 48% 13% 11% Refund Notice

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Unbranded/Generic
MPN	Does not apply
UPC	Does not apply
