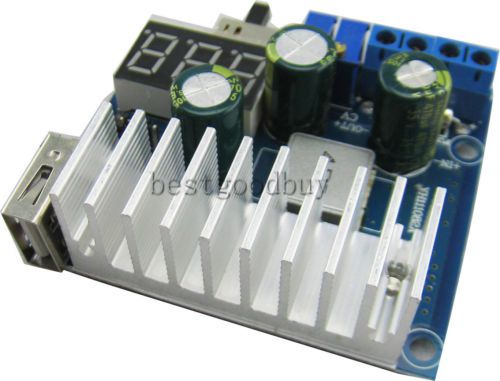

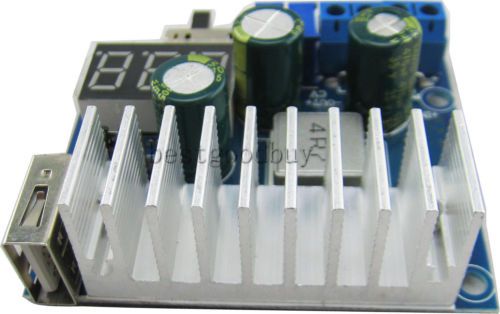

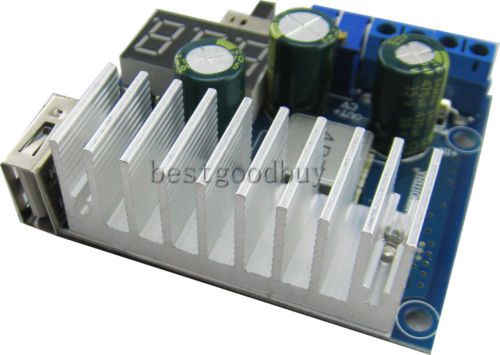

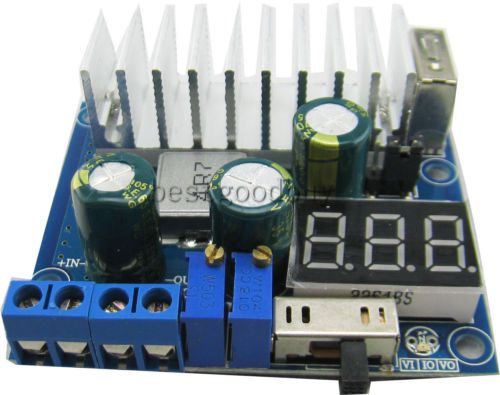

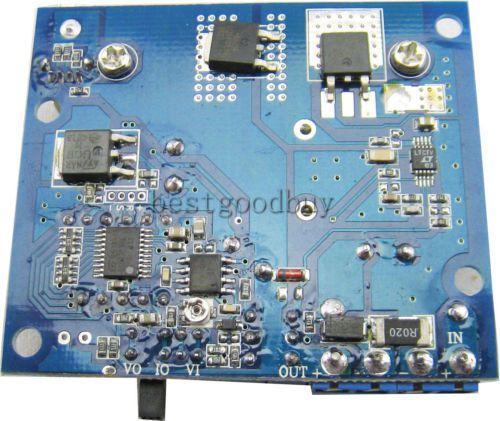

DC to DC converter 100W Constant voltage current Boost power supply Regulator, US $19.20 – Picture 0

DC to DC converter 100W Constant voltage current Boost power supply Regulator, US $19.20 – Picture 1

DC to DC converter 100W Constant voltage current Boost power supply Regulator, US $19.20 – Picture 2

DC to DC converter 100W Constant voltage current Boost power supply Regulator, US $19.20 – Picture 3

DC to DC converter 100W Constant voltage current Boost power supply Regulator, US $19.20 – Picture 4

DC to DC converter 100W Constant voltage current Boost power supply Regulator, US $19.20 – Picture 5

DC to DC converter 100W Constant voltage current Boost power supply Regulator, US $19.20 – Picture 6

DC to DC converter 100W Constant voltage current Boost power supply Regulator, US $19.20 – Picture 7

Dc To Dc Converter 100w Constant Voltage Current Boost Power Supply Regulator

US $19.20

Guangzhou ,Guangdong, China
Jan 29th

Open on mobile:
QR code

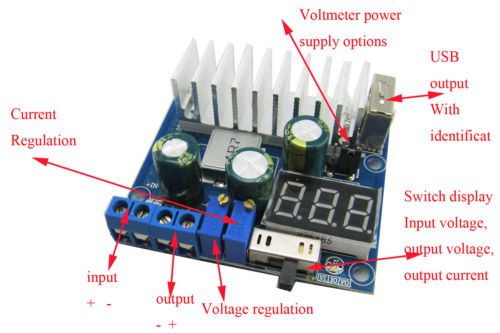

DC to DC converter 100W Constant voltage and current Boost power supply module step up Voltage Regulator with Voltmeter ammete Description DC to DC converter 100W Constant voltage and current Boost power supply module step up Voltage Regulator with Voltmeter ammeter usb output for Charging #1300205 Boost Constant voltage and current, With voltage, current display, Output with USB port With identification resistor, Single lithium battery can be directly rise to 5V to charge the phone. Large output current 2.5A. Module parameters: Module Name: 100W boost constant current module Module Properties: non-isolated step-up module (BOOST) Input voltage: DC 3-35V (limit of 36V) Input Current: 10A (MAX) ,Please enhance heat dissipation exceed 6A Quiescent Current: 15mA excluding voltmeter current (12V rise 20V, the output voltage is higher quiescent current will increase) Output voltage: DC 3-35V continuously adjustable Output Current: 6A MAX ,exceed 5A Please enhance heat dissipation Constant current range :0.1-10A Output power: = Input voltage * 6A, such as: Input 3.8V * 6A = 22.8W, 5V * 6A = 30W, 12V * 6A = 72W, input 24V * 6A = 144W, Operating temperature: -40 to +85 ° C (ambient temperature is too high, please enhance heat dissipation) Operating Frequency: 280KHz Conversion efficiency: max 96% Over current protection: Yes (input exceeds 12A, automatically reduces the output voltage, have a range of error.) Short circuit protection: (input 15A fuse) double circuit protection, use more secure. input Reverse Polarity Protection: None, (if required in the input string into the diode) Output preventionanti-irrigation: Yes, for charging plus blocking diode is not required. identification resistor: Tablet PC, pad, phone (some phones identification circuit is different, need to be adjusted) voltmeter minimum resolution: 0.05V/0.05A (10V following automatic switching decimal point) Installation: 4 pcs 3mm screws Wiring: no need welding output terminals Module dimensions: length 60mm x width 50mm x height 20mm Applications: 1, DIY a power supply, input 12V, output can be 12-35V adjustable with voltage and current display, 2, the power for your electronic devices, can according to your system set output voltage value. 3, as the vehicle power supply for your laptop, PDA, or a variety of digital products supply. 4, DIY a laptop mobile power supply: 12V coupled with high-capacity lithium batteries, 5, the solar panel regulator. 6, DIY high current mobile power with a single lithium battery can be boosted to 5V, comes with USB port and identification resistor, and a large current of 2.5A output to several phones simultaneously charging. Instructions: 1, the voltage meter power supply options: you can choose via jumpers voltmeter provided by the input supply or output is provided (IN table is an input, OUT is the output table) lower voltage can reduce the loss voltmeter, the jump lines jumpered to remove the jumper cap, voltmeter does not work. 2, USB output port: USB interface board is connected directly to the output terminal for 3V l 5V, can be directly used to charge the phone, has been identified with resistance to note is that in using the USB output, make sure the output voltage is the voltage with your digital product line, remember! ! Otherwise it will burn your digital products. 3, shows the voltage and current switching: This module via a band switch display input voltage and output voltage and output current, VI represents the input voltage, VO represents the output voltage. Represents the output current IO. Output current adjustment method: 1, regulating CV potentiometer, According to your battery or LED, the output voltage is set to your desired voltage value. Such as 5-string LED voltage regulator 18.5V, 27.6V tune bunches batteries and so on. 2, set CC potentiometer counterclockwise around 30 laps, the output current is set to minimum, connect the LED, adjust CC China locator to the desired current. For battery charging, the battery is discharged, and then connected to the output, adjust to your desired current CC, (for sure when charging the battery completely discharged before being allowed to adjust, because the battery charge remaining in Vietnam more, the charge current is smaller.) Please do not use short-circuit current way of adjusting the boost module circuit structure can not short-circuit the way tune. packing includidng : 1x 100W boost constant current module Payment We only accept payments via paypal. All payments must be prepaid, no Cash and COD payment. We will ship the item to the address on your paypal payment notice, Please confirm your shipping address in the PayPal Account. If you have any problem about payment , please contact us. Delivery details Item will be shipped within 3 working days after full payment is received. We ship worldwide with flat rate shipping by post Air mail, the shipment usually takes 15-45 business days . We can also provide express post by EMS(5-8 days) or UPS(4-5 days). The cost is higher than standard postage, extra shipping fees is needed. if you need express post please contact us ! About us We will leave positive feedback to buyer as soon as buyer pays for the item .Your satisfaction is our first priority. Please leave us positive feedback upon satisfaction of the item. Please email us before leaving negative and neutral feedback. We will try our best to solve the issue. We will leave positive feedback to buyer as soon as buyer pays for the item . Contact us we do try respond as quickly as possible. Due to time zone difference, please allow 12~24 hours to get your mail replied. If you have any questions, Please contact with us via ebay message or our customer service e-mail .thanks for your buying ,wishes you have a happy shopping from our shop ! Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	prodcuct name	DC to DC converter 100W step up module
Output voltage	DC 3-35V continuously adjustable
Module Properties	non-isolated step-up module (BOOST)
Output Current	6A MAX ,exceed 5A Please enhance heat dissipation
Input voltage	DC 3-35V (limit of 36V)
Constant current range	Constant current range :0.1-10A
