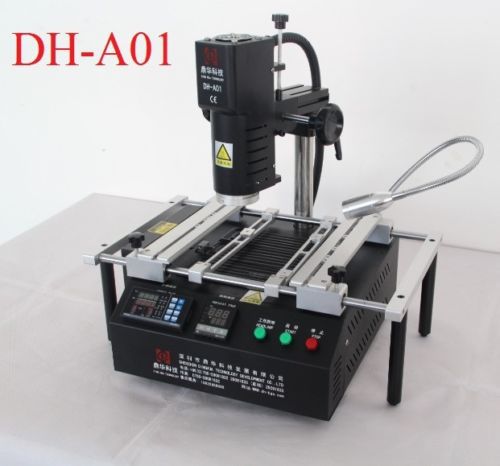

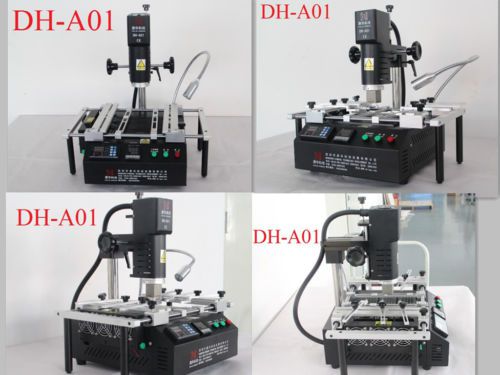

Dh-a01 Professional Infrared Bga Rework Station Pcb Repair

US $780.00

  • Hudson, Florida, United States
  • Jan 31st
Open on mobile:
QR code

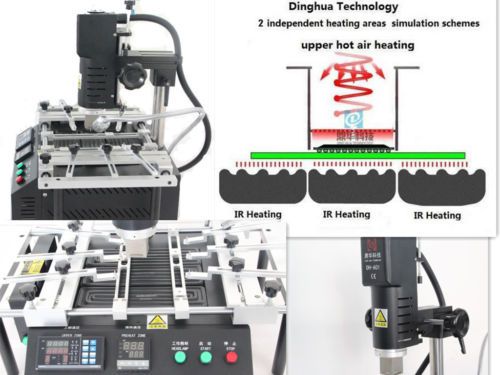

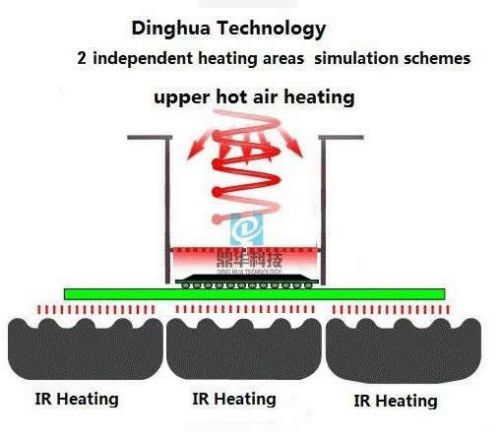

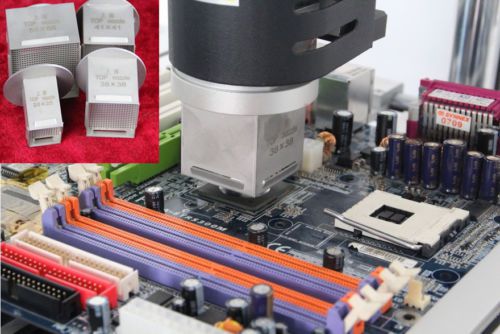

This model is 220v. SPECIFICATION: Power supply:AC220V±10%50/60Hz Total Power:2600W Top heater:Hot air 800W Bottom heater:IR Preheating area 1800w Positioning:V-groove, PCB support can be adjusted in X,Y direction with external universal fixture Temperature control:K-sensor closed loop control, independent heating Temp accuracy:±°C PCB size:Max 300mm*300mm Min20mm*20mm BGA chip:5*5~55*55mm Minimum chip spacing:0.15mm Machine dimension (L*W*H): 470*400*450mm Packing dimension (L*W*H): 48*41*53cm NW/GW 14.5/17KG A01 Main Features 1.Two independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be controlled according to PCB size 2.K sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C 3.Moveable heater, easy to operate. 4.Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available. 5.V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board. 6.Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation. 7.Sound hint system. There is an alarm before the completion of each desoldering and soldering. 8.CE certification, with emergency switch and automatic power-off protection device when emergency happens.
