Digital Audio Signal Generator / Counter, 10hz To 1mhz, Ag-2603ad, (quantity 1)

US $143.21

Weatherford, Oklahoma, United States
Jan 29th

Open on mobile:
QR code

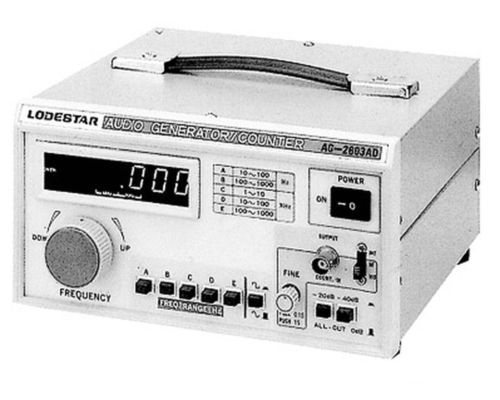

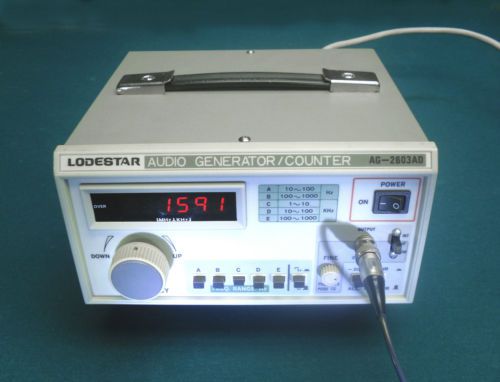

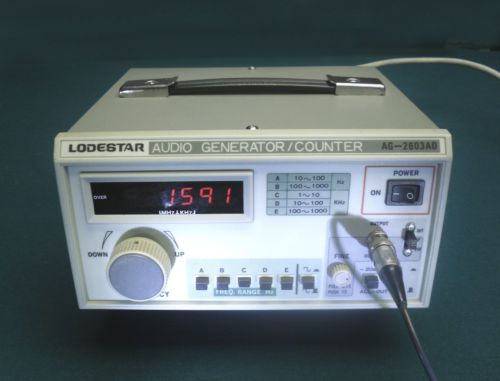

Digital Audio Generator / Counter Lodestar, AG-2603AD, 10Hz~1MHz (Quantity 1) This instrument generates a low distortion sine wave and square wave from 10 Hz to 1 MHz in 5 ranges. The 6 digit frequency counter displays the frequency of the generator itself or it can be used to measure the frequency of any external source up to 150 mhz. I'm amazed at some of the things I see on Ebay. This item is often sold for over $200 (which it's worth), yet several sellers list it with really horrible photos. Can't they take a rag and a bottle of spray cleaner to a small item which they claim is worth over $200 and snap some decent shots - ones without a broken down lawnmower as a background? Then they say, "Well, we turned it on, and it seems to work." But a little further down, they say "This item is being sold 'AS IS'? And I wonder "Well, which is it"? And, anyway, how do you sell it in any other condition than 'AS IS?' Do you sell it 'AS IS NOT'? It's like you're selling a horse, and you say, "Well, he seems to be able to stand up." Then they go on to give you testimonials from customers who have been delighted to find that they bought an item 'AS IS' and found that it actually worked. And, therefore, this indicates that the item you're buying from them will probably - or at least possibly - also work. It makes you wonder how many of the 'stand up horses' they sell are dead on arrival. Oh, well, I'll tell you that this is a good item that I have thoroughly tested and found to be fully functional. If it's not that way when you get it, I'll either replace it or give you your money back. And I'll do my best to get Oklahoma's prolific quantity of dust off it before I ship it to you. I have several of these instruments, but I'll probably be selling them one at a time. If you want one of these, buy it now, because the price is not likely to go down and may even go up a little bit. Upon request, the 20 page Operation Manual will be emailed to the buyer in '.pdf' format. Be forewarned: There is a learning curve on this instrument. I've worked in electronics for a long time, and when I first got these instruments, I sat down with one of them, the manual and my oscilloscope. The more time I spent with the Lodestar, the more impressed I was with its functionality. But I also realized that I couldn't just twist on the knobs and figure it out. So be prepared to read the manual and experiment. Specifications: Oscillator Frequency range: 10Hz ~ 1MHz 5 decade bands. Accuracy: With counter section accuracy. Output impedance: 600?, unbalance. Output control: 0dB / -20dB / -40dB and fine adjuster. Sine wave output Range: 10Hz ~ 1 MHz. Output voltage: 8Vrms, max. Output distortion: Less than 0.05% 500Hz ~ 50KHz. Less than 0. 5% 50Hz ~ 500KHz. Output flatness: ±1dB (1KHz). Square wave output Range: 20Hz ~ 20KHz. Output voltage: 15Vp-p or more. Rise time: 0.5us. Synchronization Range: ±1% / V of oscillator frequency per Vrms. Input impedance: Approx 10K?. Maximum input: 10Vrms. Counter section Frequency range: 10Hz to 150MHz. HF 10 Hz to 10MHz. VHF 10MHz to 150MHz. Accuracy: ±1 count, ±reference time accuracy. Gate time: 0.1 sec and 1 sec. Input sensitivity: 35mV ~ 50mV. 10Hz ~ 150MHz. Input Impedance: HF1M? VHF50? MAX input voltage: Less about 3V effective. Reference time frequency: 10MHz. Reference time accuracy: 5 x 10-5 (50ppm) 0°C to 40°C. 1 x 10-5 (10ppm) 23°C ±3°C. Display: Decimal 6 digital LED. Power requirement: AC 115/230V ± 10% 50/60Hz Approx 4VA. Dimensions & weight: 120mm (H) x 220mm (W) x 215mm (D) 4.72" (H) x 8.66" (W) x 8.5" (D) Approx 2.36 kgs. (about 5.2 lbs) Output: BNC connector Generator Frequency Range 10hz-1mhz in 5 ranges 10hz-100hz, 100hz-1,000hz. 1khz-10khz, 10khz-100khz, 100khz-1mhz Output Voltage 8 Vrms sine wave, 10 Vp-p squarewave Accuracy 30 ppm ±1 count Output Impedance 600? Output Distortion HF .05%, VHF Less than .5% Synchronization ±2% of oscillation frequency per Vrms Frequency Counter Range 1 hz ~ 150 mhz Resolution 1 hz or 10 hz Display 6 digits, for internal and external signals Gate Time 1 sec or 0.1 sec Input Sensitivity 35 mv ~ 50 mv, 10 hz ~ 150 mhz Input Impedance HF 1 M?, VHF 50? Power 110vac or 220 vac, 50 hz or 60 hz Size 4.6"H X 8.5"W X 8.1"D Weight 5.2 lbs. I will, of course, send you a power cable with the instrument, but I don't have a BNC cable for it. I used a scope probe with it, but you may prefer something else. If you search Ebay for "BNC cable", you get over 8,000 choices, including good low prices on things like BNC to alligator clips, etc. I have many other electronic items for sale. If you'd like to see them, just click the green link below. Click here to see my other Electronics items Click here to visit my store (list view) Click here to visit my store (gallery view) Click here to save me as a seller

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“No BNC output cable”
