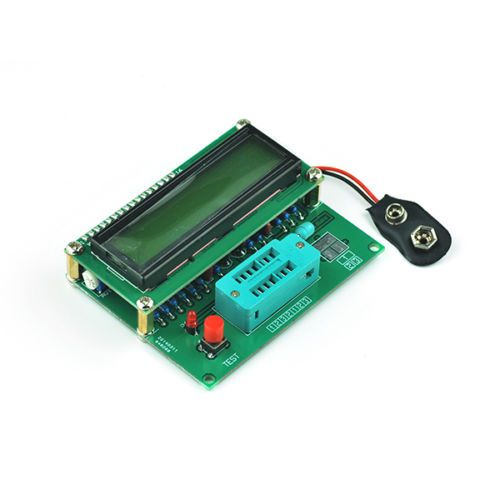

Digital Mosfet Transistor Meter Lcr Esr Capacitance Resistance Inductance Test

US $590

Shenzhen,Guangdong, China
Jan 29th

Open on mobile:
QR code

Contact us Store Home Best Deals Wholesale Payment & Shipping Return Feedback & FAQ About Us Store categories tester& meter equipment RF Cable Assembly ufl Pigtail SMA Pigtail SMB Pigtail N Pigtail BNC Pigtail TNC Pigtail MMCX Pigtail MCX Pigtail MC-Card Pigtail CRC9 Pigtail TS9 Pigtail Fakra Pigtail UHF Pigtail F Pigtail FME Pigtail Other Pigtail RF Connector SMA Connector SMB Connector SMC Connector N Connector BNC Connector TNC Connector UHF Connector MCX Connector MMCX Connector Fakra Connector F Connector FME Connector 7/16 Connector XLR Connector Other Connector RF Adapter SMA Adapter SMB Adapter N Adapter BNC Adapter TNC Adapter UHF Adapter F Adpater FME Adapter Other Adapter RF Coaxial Cable 3G Antenna 15Dbi 3G Antenna 13DBi 3G Antenna 12Dbi 3G Antenna 11Dbi 3G Antenna 10Dbi 3G Antenna 9Dbi 3G Antenna 7Dbi 3G Antenna 5Dbi 3G Antenna 3.5Dbi 3G Antenna 3Dbi 3G Antenna 2Dbi 3G Antenna 3G- Other GPS Antenna WIFI Antenna Other Antenna Aluminum Box Solar Junction Box Solar Panel Connector Crimp tool POE Part Other Digital Mosfet Transistor Meter LCR ESR Capacitance Resistance Inductance Test click to visit more our test equipment~! Description: NEW Arrival! 100% BRAND NEW & HIGH QUALITY! Feature: ---Use the latest V1.10 version software and M328 chip, more function than M8 version. ---The microcontroller adopts 8MHz external crystals oscillator, better measurement accuracy ---The related resistance of affecting the accuracy use 1‰metal film resistor, and the rest also use 1%metal film resistor. ---Use backlight low-power consumption LCD screen, the backlight current is about 2mA, compared with the overall power consumption is almost negligible, convenient to read the data in the dark. --- 9V laminated batteries as power supply ---High quality component and element ---Weight: 80g Description: 1. A key operation with automatic shutdown 2. Battery operation is possible since shutdown current is only about 20nA 3. Automatic detection of NPN and PNP bipolar transistors, N- and P-Channel MOSFETs, JFETs, diodes, double diodes, unidirectional thyristor and bidirectional thyristor. 4. Automatic detection of pin layout of the detected part. 5. Measuring the current amplification coefficient of the bipolar transistor and the voltage of base - emitter threshold 6. Darlington transistors can be identified by the threshold voltage of the high current amplification factor. 7. Detection the bipolar transistor and the protection diode of MOS 8. Measuring the Gate threshold voltage and Gate capacity value of MOSFETs. 9. Up to two Resistors are measured and shown values with up to four decimal digits in the right dimension. All symbols are surrounded by the probe numbers of the Tester. So Potentiometer can also be measured. If the Potentiometer is adjusted to one of its ends, the Tester cannot differ the middle pin and the end pin. 10. The resolution of the resistance measurement is 0.1?, can measure up to 50M? 11. One capacitor can be detected and measured. It is shown value with up to four decimal digits in the right dimension. The value can be from 30pF to 100mF. The resolution can be up to 1 pF 12. For capacitors with a capacity value above 2µF the Equivalent. Serial Resistance (ESR) is measured with a resolution of 0.01? and shown with two significant decimal digits 13. Up to two diodes are shown in correct order and by diode symbol. Additionally the forward voltages are shown. 14. LED is detected as diode; the forward voltage is much higher than normal. Two-in-one LEDs are also detected as two diodes. 15. If Reverse breakdown voltage is below 4.5 V,zener diode can be identified 16. Measurement of the capacity value of a single diode in reverse direction. Bipolar Transistors can also be analysed, if you connect the Base and only one of Collector or Emitter 17. Only one measurement is needed to find out the connection way of a rectifier bridge. 18. Capacitors with value below 30pF are usually not be detected, but can be measured together with a parallel diode or a parallel capacitor with at least 30pF. In this case you must subtract the capacity value of the parallel connected part. Note: please discharge the capacitor before measuring the capacitance, or else may be destroy the meter Package Content: 1pcs Transistor Meter (not include battery)

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	MPN	TOOL079-328M
Display Mode	LCD
Weight	80g
power supply	9V laminated batteries
