Digital Temp Regulator Heater Colling Thermostats Temperature Control -50-110°c

US $14.80

Guang Zhou, China
Jan 29th

Open on mobile:
QR code

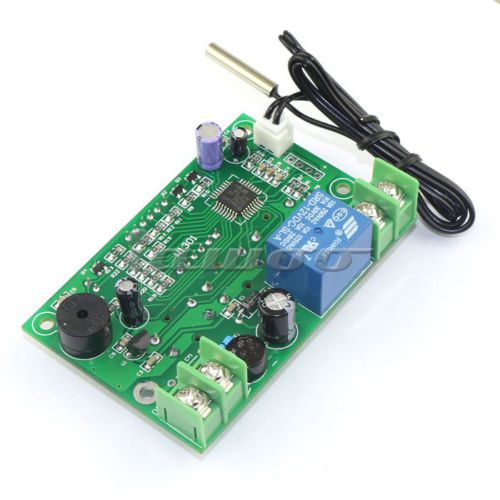

Buzzer Alarm Digital Temp Regulator Heater Colling Thermostats Temperature Controllers 1M Sensor Cable -50-110 °c 12V AC/DC #090 Product Description Features: Temperature control range: -50 ~ 110 °c Resolution: 0.1 °c (-9.9°c to 99.9 °c), 1 °c (other temperature ranges) Measurement accuracy: 0.1 °c Control accuracy: 0.1 °c Backlash accuracy: 0.1 °c Refresh rate: 0.5 S Input Power: DC / AC 12V Measuring inputs: NTC (10K 0.5%) Waterproof sensor Output: 1 relay output, capacity = 10A Environmental requirements: -10 ~ 60 °c, Humidity 20% -85% Power consumption: Static current: < / = 35MA Attract current: < / = 65MA Size: 78 x 51mm (mounting holes M3. Diagonal 75mm) Sensor Cable Lenght: About 0.5 meter Can set the automatic power-off memory Button buzzer (can be turned off) High temperature buzzer alarm (0-110 °c,set free) Instructions for use: Connect the power supply and equipment, the measuring temperature is displayed, press the "SET" button, press " + or - " to set the desired temperature (long press " + or - " to quickly increase or decrease), press "SET" to confirm the setting and return, controller automatically performs the relay ON/OFF The thermostat output is 10A relay, meet a variety of high-power loads, connect to control circuit and power for the thermostat, then will display the ambient temperature. LED Indicator, Digital LED Tubes And Buzzer Status Instructions: LED Indicator: Flashing,indicate cooling or heating delay;Lighting,indicate the relay is closed. Digital LED Tubes: "LL" indicates sensor open, "HH" indicates overrange, the relay will be forcibly disconnected; "---" indicates high temperature alarm Buzzer: When digital tubes display "LL", "HH" or "---" ,the buzzer will sound beep "Di,Di,Di" Factory Setting Parameters: Codes Code Description Setting range Factory setting P0 Cooling / Heating C / H C P1 Hysteresis Setting 1-15 2 P2 Highest Setting Limit 110 110 P3 Lowest setting Limit -50 -50 P4 Temperature Correction -7 - 7 °c 0 P5 Delay Start Time 0-10 minutes 0 P6 Key Tone Switch ON/OFF ON P7 Temperature Alarm 0-100 ° c OFF P8 Restore Factory Settings ON/OFF OFF Parameter Function Description: Press the "SET" button for 5 seconds to enter menu display, press" + " or " - " can switch P0 to P8, long press "SET" or 10 seconds of no button action, the controller will automatically confirmed and return. P0 (Cooling, Heating Mode) Cooling mode: When the temperature measurement value >/= temperature set point, the relay ON, cooling starts; when the temperature measured value <temperature setpoint - hysteresis, the refrigeration relay OFF, cooling closed . Heating mode: When the temperature measured value < /= temperature set point, the heating relay ON, heating starts. when the temperature measurements > /= Temperature set point + hysteresis, the relay OFF, heating closed; P1 (Hysteresis Setting) Cooling Mode: When the temperature measurement value > / = set value, the relay ON, refrigeration starts; when the temperature measured value < /= set value - hysteresis value, the relay OFF, cooling closed. for example,when the setting is 20 °c,the environment is 30 °c, the hysteresis setting is 2 °c, after powered,relay OFF,cooling starts, when cooling to 17.9 °c, relay OFF,cooling closed, because the cooler has been closed, the temperature began to rise, when rise up to the set value 20 °c, the relay OFF ,the cooler to start again, so repeated cycle control temperature not higher than 20 °c. Heating Mode: When the temperature measurement value < / = setpoint, the relay ON, the heater starts; when the temperature measured value >/ = set value + hysteresis value, the relay OFF, the heater closed. for example setting is 30 °c, the environment is 20 °c, the hysteresis setting is 2 °c, after powered, relay OFF, heating starts, when heated to 32.1 °c, the relay OFF, the heater colsed, because the heater has been colsed, the temperature begins to drop,drop to the set value dropped 30 °c, the relay closes and the heater to start again, so repeated cycle control temperature not lower than 30 °c P2 (Highest Temperature Setting Limit) Long press "SET" 5 seconds display P0, Press "+ or -" to switch to P2, press "SET" to set maximum limit, press "+ or -" to set up temperature, the maximum value of 110. press finished press "SET" to return, long press "SET" or 10 seconds of no button action, the controller will automatically confirmed and return. For example: the temperature set point is set to 60°c,then the Maximum can only be set to 60°c, if want to expand the scope of the temperature set-point, it needs to adjust the upper and lower limit settings. P3 (Lowest Temperature Setting Limit) Long press "SET" 5 seconds display P0, Press "+ or -" to switch to P3, press "SET" to set minimum limit,press "+ or -" to set up temperature,the maximum value of 110, finished press SET to return, long press "SET" or 10 seconds of no button action, the controller will automatically confirmed and return. For example: the temperature set point is set to 2°c, then the Minimum can only be set to 2°c, if want to expand the scope of the temperature set-point ,it needs to adjust the upper and lower limit settings. P4 (Temperature Correction) when the measured temperature and the standard temperature have deviation, can use this feature, the temperature after correction = the temperature before correction + correction value. Long press "SET" 5 seconds display P0, Press "+ or -" to switch to P4, press "SET" for correction, press the "+ or -" setting a correction value, press "SET" to return, long press "SET" or 10 seconds of no button action, the controller will automatically confirmed and return. For example, the normal display is 25°c, if the temperature correction is 0°c, display 25°c; if the temperature correction is 1.5°c, display 26.5°c ; if the temperature correction is -1.5°c,display 23.5°c. P5 (Delay Start Time, Unit: Minutes) Long press "SET" 5 seconds display P0, Press "+ or -" to switch to P5, press "SET" to set delay start time, press "+ or -" to set 0-10 minutes, finished press SET to return, long press "SET" or 10 seconds of no button action, the controller will automatically confirmed and return. Cooling mode: the first powered, if the current temperature >/= the set value, the cooler does not immediately start cooling, it needs to run the set delay time to start. Heating mode: the first powered, if the current temperature </= the set value, the heater does not immediately start heating, it needs to run the set delay time to start. If refrigeration or heater adjacent downtime between two starts greater than the delay start time setting, cooler starts immediately; If refrigeration or heater adjacent downtime between two starts less than the delay start time setting, it needs to run through the delay start setting time,then the cooler to starts. delay time start calculation from the downtime. P6 (Key Tone Switch) Long press "SET" 5 seconds display P0, Press "+ or -" to switch to P6, press the "SET" button and the "+ or -" to set ON / OFF, finished press "SET" to return, long press "SET" or 10 seconds of no button action, the controller will automatically confirmed and return. P7 (Temperature Alarm) Long press "SET" 5 seconds display P0, Press "+ or -" to switch to P7, press "SET" to set ON / OFF, if set to ON, press the "SET" to set the high temperature alarm point,press "+ or -" to set 0 ~ 110, finished press "SET" to return, long press "SET" or 10 seconds of no button action, the controller will automatically confirmed and return. P8 (Restore Factory Settings) Long press "SET" 5 seconds display P0, Press "+ or -" to switch to P8, press "SET" set to ON/OFF, "ON" to restore the factory settings, "OFF" to not perform any action. finished press "SET" to return, long press "SET" or 10 seconds of no button action, the controller will automatically confirmed and return. Package Included: 1x Digital Temp Controller Payment Method We accept only Paypal for both domestic and international. We will ship to the shown address on you PAYPAL Payment notice,Please confirm your shipping address in the PayPal Account. If buyer want to delay the payment because of financial problem, please contact me by the ebay message within 3 days. Shipping Detail Ship by Post Air-mail within 3 working days after full payment is received. The shipment usually takes 15-45 business days to Worldwide. We also provide international Expressed delivery such as EMS, DHL and UPS,extra shipping fees is needed. The shipping time may vary, depends on receiver's location. Feedback Policy We will leave positive feedback to buyer as soon as buyer pays for the item. Leaving Negative feedback or Netural Feedback is never a good way to resolve problem .We hightly appreciate that you can contact with us before you leaving Negative feedback or Neutral feedback .We will offer help to resolve your problems as fast as possible. Customer Service Work Time If you have any questions,Please contact with us via eBay message or our customer service e-mail . please be advised that e-mails will be replied by our customer services officers Mon. - Fri. 11:00 - 20:00 and Saturdays 11:00 – 15:00(Excluding Weekends and Public Holidays) You may expect to receive a response to your inquiry within 24 hours. (Excluding Weekends and Public Holidays) Engineered for professional eBay sellers! On Nov-30-14 at 10:26:44 PST, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Temperature control range	-50 ~ 110 °c
Measuring inputs	NTC (10K 0.5%) Waterproof sensor
Measurement accuracy	0.1 °c
Output	1 relay output, capacity = 10A
Control accuracy	0.1 °c
Environmental requirements	-10 ~ 60 °c, Humidity 20% -85%
Backlash accuracy	0.1 °c
Size	78 x 51mm (mounting holes M3. Diagonal 75mm)
Refresh rate	0.5 S
Sensor Cable Lenght	About 0.5 meter
Input Power	DC / AC 12V
Can set the automatic power-off memory	Yes
