Diversitech Cp-22 Condensate Pump 120v Air Conditioner Water Condensation Pump

US $150

  • Hamden, Connecticut, United States
  • Apr 24th

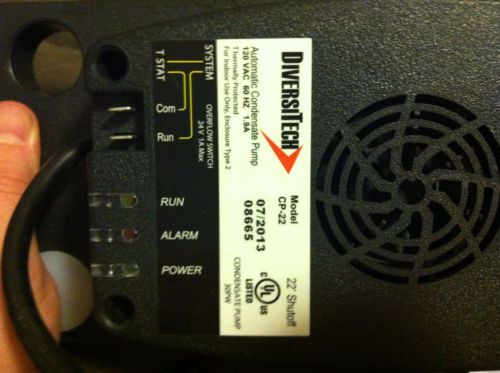

Diversitech CP-22 Condensate Pump 120V Diversitech CP22 Specifications: Rated Voltage 120 Volts / 60 Hz Rated Current Draw 1.9 Amps Input Type USA 3-prong plug Head Height 22 ft. maximum Flow Rate at Zero Head 1.6 GPM Product Dimensions (LxWxH) 11.8” x 5.9“ x 6.7” Inlet Height from Base 4.4” Included Accessories: • Instruction Sheet • Stainless Steel Hang Tabs • Plug Protector • 4’ Remote Shutoff Leads with Insulated Terminals • Polyethelene Inlet Covers (3) Wiring Color References Black - Live/Hot, White - Neutral, Green - Ground Suitable for use with condensate from high efficiency condensing furnaces and boilers which produce acidic condensate. 22 feet of lift, compared to the typical 20 feet. Features include vibration dampening feet and motor mounts, metal hang tabs, four versatile inlet holes, an easy to understand indicator display, a simple float switch and check valve. Integrating the CP-22 into your system is easy. 1/4” inch quick connect terminals provide easy connection to the built in overflow switch. Three terminals are provided allowing the installer flexibility to connect air-handler shut-down and optional alarm as needed. Switch features SPDT isolated contacts ready for connection to building automation systems. Continuous duty 140F°.Maximum inlet temperature 160F°.Not suitable for contact with steam or gasses that exceed 160F°.
