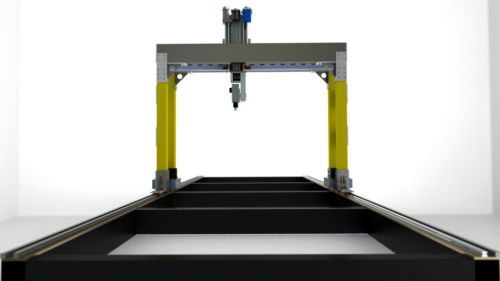

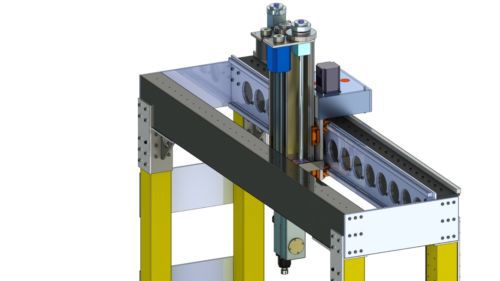

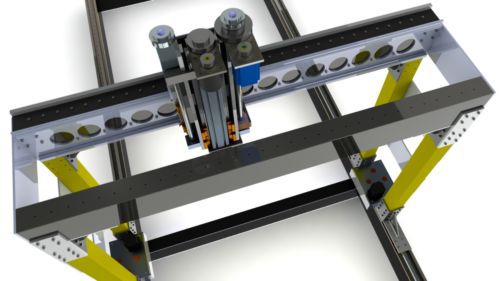

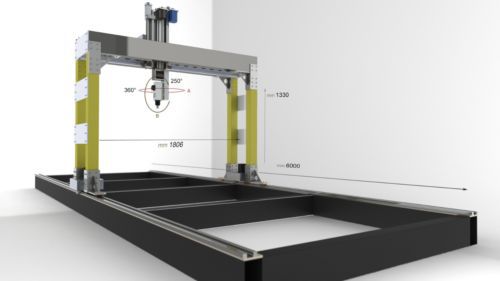

SOLIDWORKS PROJECT OF INDUSTRIAL GRADE DIY CNC 5 AXIS MULTI-PURPOSE ROUTER (DIGITAL PLANS ONLY). Custom designed for marine industry this 5-Axis CNC router is truly a work of art in modern engineering, built precisely for rapid assembly as a turn-key Solidworks project. This tool is indispensible not only in marine construction and furniture production industries, it is cheap enough to build by a hobby enthusiast on weekends below 7000 USD price tag. For the first time this CNC router delivers multi-axis capability at an affordable price for wider industrial use and hobby artists. 5-Axis CNC router is ready for production cutting, drilling, trimming, as well as prototype-and fixture-machining in a large work envelope (6 meters by 1.8 by 1.0 meters), accessible from all angles. Meticulously engineered 5-Axis CNC is built on rigid support profiled stock tubes and cold rolled HIWIN rails with extended height that allows good 5-axis reach and breathtaking 0.01 mm tolerance if constructed properly. The X axis structure is a stationary assembly six meters in length, which allows for one-piece polyurethane hull machining or processing "lego style" parts for a larger 10 meters + molds. The Y axis makes use of hardened steel precision cold-rolled linear rails and HIWIN sliders. Precision drilled and tapped holes of the twin overhead gate assembly are engineered with durability and rigidity in mind. When support plates are fixed, Y structure is rock solid and could be subjected to different types of rigidity configurations, - if your budget is limited and you intend to process only soft woods and foam, you can save on the second overhead frame. The practical work envelope of the tool is: 236.2” (6000mm) X (extendable with longer beams) x 700” (1778mm) Y x 41.3” Z (1050mm). All 5 axes are powered by advanced technology, closed-loop, step motors (servo drives could be used as well) providing production speed and precision. The tool includes a 0,75 - 2.2hp spindle fit to machine's 5-axis head. The 5-axis head, or wrist, utilizes 2 motors as A and B axis. Resolution per step is calculated in a separate file so Mach3 could be used natively. The tool is perfect for 5-axis machining of prototyping materials such as: hard and soft woods, composite materials, plastics and urethane foams in marine applications, as well as trimming, drilling, and slotting operations in a variety of materials. It does not have sufficient rigidity or aggressiveness for production machining of metal parts, although you can machine aluminium with reduced speeds. SOLIDWORKS PROJECT OF THE 5-AXIS CNC ROUTER (DIGITAL PLANS AND FILES ONLY) CONTAINS : - Detailed engineering assemblies of the router (production grade Solidworks design) - Technical drawings (screen captures), and links for ordering parts in machine shops or machining in-house. - EXCEL BOM (with over 670 individual parts and 100+ types). - PCB plans in Protel (scematics and pcb printing image) - Detailed description of parts used in machine's build (gears, pulleys, belts, stepper motors, guide rails, etc.) with pictures and eCommerce supplier's reference - Instructional screen capture video introducing you to specifics of Solidworks assembly and parts used - EXCEL axis movement calculations - 5 axis CNC router rendered illustrations - MACH 3 settings and calculations, also in EXCEL SOLIDWORKS PROJECT OF THE 5-AXIS CNC ROUTER DOES NOT CONTAIN: - step-by-step guidance of machine build - instructions of Solidworks design process - technical support of any kind by the Seller - Solidworks assembly files do not show gears on pulleys and belts since this information is redundant - pulleys are internally coded according to supplier's catalogue and belts are included in specifications ! All in all, a very good and detailed project for a hobby enthusiast or a professional company ! Our clients use their machines from producing renaissance furniture to boat hull molds construction ! The files are over 100 MB, download link will be sent to you after payment. Please note, - this lot is an expensive digital product with over 200 hrs professional developing, once you purchase it, we do not accept any refund requests. If you have questions, please ask, our support works 24/7 for you.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Fujikawa Engineering Ind.
MPN	5 Axis CNC router 6x1.8x1.2 Meters
Model	5 Axis CNC router
Country/Region of Manufacture	Japan
