Dsls Bluflame 30 Watt 445nm Blue Laser All-diode Oem Module -forensics Lasershow

US $12,500.00

Van Nuys, California, United States
Feb 23rd

Open on mobile:
QR code

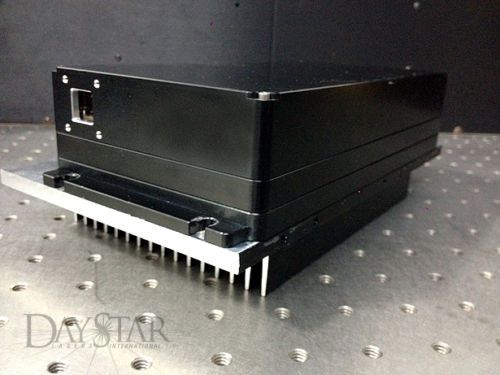

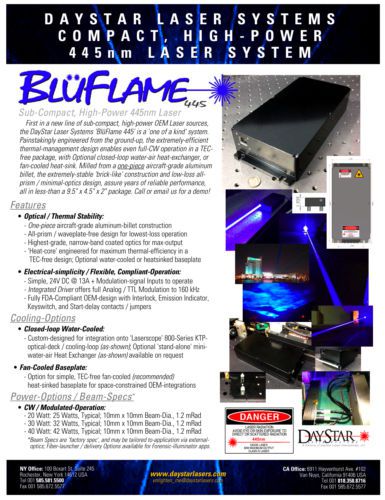

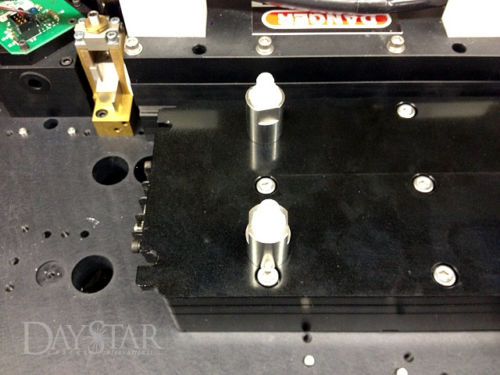

DSLS 'BluFlame 445', First in a new line of sub-compact, high-power OEM Laser sources, the DayStar Laser Systems 'BluFlame 445' is a 'one of a kind' OEM-Laser System. Painstakingly engineered from the ground-up, the highly-efficient thermal-management design enables even full-CW operation in a TEC-free package, with Optional closed-loop water-air heat-exchanger, or fan-cooled heat-sink. Milled from a one-piece aircraft-grade aluminum billet, the extremely-stable 'brick-like' construction and low-loss all-prism / minimal-optics design, assure years of reliable performance, all in a package less-than 9.5" x 4.5" x 2". Excellent 'engines' for High-Power Beam / Aerials Projectors, or for 445nm Forensic Illuminators. As-shown, unit Outputs 32 Watts of 445nm in a 10mm x 10mm Beam, out of the Aperture; Also-available - in the same form-factor - with Outputs of 40W of 445nm Blue, 30W of 462nm Blue, 30W of 445/462nm mixed-Blue, 20W of 520nm Green, and 15W of 638nm Red (still under Dev't), as-per Quote. Features: • Optical / Thermal Stability: - One-piece base / optical-positioners milled from aircraft-grade aluminum-billet - All-prism / waveplate-free design for lowest-loss operation - Highest-grade, narrow-band coated optics for max-output - 'Heat-core' engineered for maximum thermal-efficiency in a 'TEC-free' design; Optional water-cooled or heatsinked baseplate • Electrical-simplicity / Flexible, Compliant-Operation: - Simple, 24V DC @ 13A + Modulation-signal Inputs to operate - Integrated Driver offers full Analog / TTL Modulation to 160 kHz - Fully FDA-Compliant OEM-design with Interlock, Emission Indicator, Keyswitch, and Start-delay contacts / jumpers • Flexible Cooling Options - Closed-loop Water-Cooled: - Custom-designed for integration onto 'Laserscope' 800-Series KTP-optical-deck / cooling-loop (as-shown); Optional 'stand-alone' water-air Heat Exchanger available, per-Quote - Option for simple, TEC-free heat-sinked / fan-cooled baseplate for space-constrained OEM-integrations PLEASE NOTE: THIS OEM MODULE IS *NOT* FOR 'BEGINNERS', it is an *Extremely-Powerful* Laser-source, so it will *not* be sold to 'just anybody'. Before sale / accepting any Bids, we will require Proof of an existing, Valid CDRH Class IV-use-approved Variance / evidence of being a 'seasoned' OEM-Manufacturer. If you do not possess one, we are willing to help you 'apply for a Variance' and fully-train on safety, maintenance, etc., but that will add to the cost of the 'Final-Deliverable', as-per Quote. This module, as-is, is CDRH-Compliant as an OEM-module *only*, for integration into a Varianced-projection or Illumination System. It is not intended / designed for 'stand-alone' use. Also, eBay makes us tell you: "The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item." Lastly, PLEASE - questions BEFORE you bid, and also, PLEASE, serious / qualified bidders ONLY. Thanks, and happy bidding!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	DayStar Laser Systems
Country/Region of Manufacture	United States
Model	BluFlame 445
