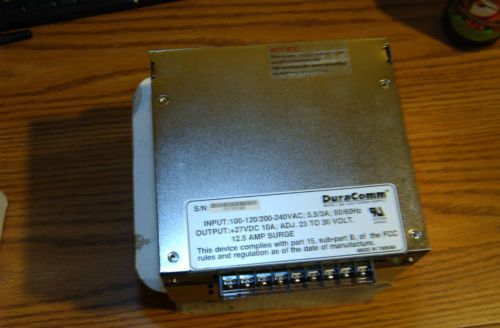

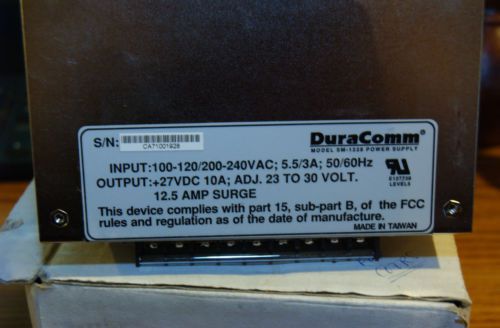

Duracom Model Sm-1228 Power Supply Input 100-120 Output 27vdc

US $125.00

Firestone, Colorado, United States
Jan 29th

Open on mobile:
QR code

Output Voltage.................................................................................................... 23-29 V. adjustable Output Voltage Tolerance.....................................................................................................+/- 1 pct Output amperage, max continuous ............................................................................................10 A Maximum Output Amperage.............................................................................. Single Surge 12.5 A Maximum Power, continuous ............................................................................................280 Watts Maximum ripple and noise...................................................... 150 mV p-p max, 10 mV RMS typical Input voltage range......................................................................................90-130 or 180-280 VAC Input frequency range......................................................................................................... 47-63 Hz Maximum AC current............................................................................. 5 A/120 VAC; 3 A/240 VAC Typical Efficiency..................................................................................................................... 80 pct Max inrush current, single cycle .................................................................................................35 A Short Circuit protection .......................................................................................... Foldback Limiting Overload Protection (operates) ...........................................................................typical 110-120 pct Line Regulation........................................................................................................................50 mV Load Regulation ....................................................................................... 100 mV (20-100 pct load) Fan Control............................................................................... Heat sink temp >140 F (60 C) = ON Over Temperature ................................................................... >195 F (90 C) auto output shutdown Rise Time following ON ...........................................................................................................50 mS Hold Time following OFF .........................................................................................................10 mS Working Temperature range .......................................................................... 32 - 125 F (0 - +50 C) Storage Temperature .................................................................................... 0 - 185 F (-20 - +85 C) Withstand Voltage*.............................................................1.5 KV @ 10 ma (I/P-O/P, I/P-FG)/1 min (Continued)...................................................................................... 500 V @ 10 ma (O/P-FG)/1 min Dimensions.........................................................................3.39H x 5.55W x 5.88D inches, nominal Weight .........................................................................................................................3 lbs, nominal

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	DURACOM
Model	SM-1228
