Dwyer 1820-5-mr Series 1800 Low Differential Pressure Switch - New- Show Original Title

US $45.00

Elgin, Illinois, United States
May 8th

Open on mobile:
QR code

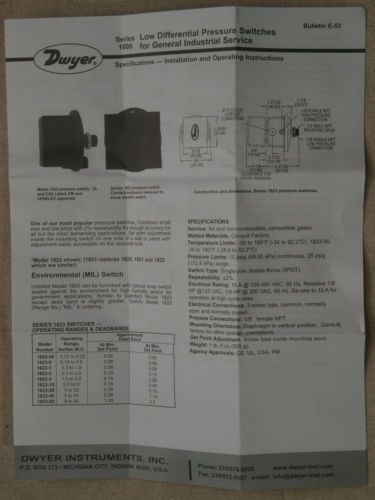

Dwyer 1820-5-MR Series 1800 Low Differential Pressure Switch - NEW Essential for industrial environments, the Series 1800 combines small size and low price with 2% repeatability for enough accuracy for all but the most demanding applications. Set point adjustment inside the mounting stud permits mounting switch on one side of a wall or panel with adjustment easily accessible on the opposite side. UL and CSA listed, and FM approved. SPECIFICATIONS Service: Air and non-combustible, compatible gases. Wetted Materials: Consult Factory. Temperature Limits: -30 to 180°F (-34 to 82.2°C). 1823-00, -20 to 180°F (-28.9 to 82.2°C). Pressure Limits: 10 psig (68.95 kPa) continuous, 25 psig (172.4 kPa) surge. Switch Type: Single-pole double-throw (SPDT). Repeatability: ?}2%. Electrical Rating: 15 A @ 120-480 VAC, 60 Hz. Resistive 1/8 HP @125 VAC, 1/4 HP @ 250 VAC, 60 Hz. De-rate to 10 A for operation at high cycle rates. Electrical Connections: 3 screw type, common, normally open and normally closed. Process Connections: 1/8? female NPT. Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations. Set Point Adjustment: Screw type inside mounting spud. Weight: 1 lb, 5 oz (595 g). Agency Approvals: CE, UL, CSA, FM. Item is new, in its original open packaging as shown on the images. The pictures are showing the actual product the buyer is getting. International buyers are responsible to pay for the applicable importing fees and duty if it applies. Thank you for looking. Return Policy: If the item you purchased was misrepresented by me or it was damaged during shipping, you can obtain a full refund. In order to receive your refund, you must notify within 14 business days of receiving your item. In case you have received the item in a damaged condition you must keep all packaging material for inspection and please notify me ASAP after receiving it and please provide pictures. Full refund (including original S&H) only applies for defective items and it must be sent back in the original condition; including the original accessories and all packing materials. Restocking Fee (up to 20%) will be charged for any item without original package, abused, altered, or damaged. I will not accept returned items with missing accessories or packaging. Returns require my approval and return authorization and item must be received by me before I can issue your refund. Please note: I record all serial numbers to discourage fraud.

“New in open box.”

Brand	Dwyer Instruments
MPN	Dwyer 1820-5MR
Model	Dwyer 1820-5-MR Series 1800 Low Differential Press
Country/Region of Manufacture	United States
