Dynalec Thermostatic Switch Military Surplus 803-1197 5930-00-565-5153 Naval New

US $161.50

Westerville, Ohio, United States
Jan 30th

Open on mobile:
QR code

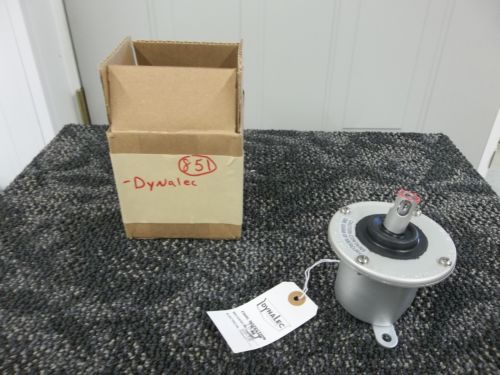

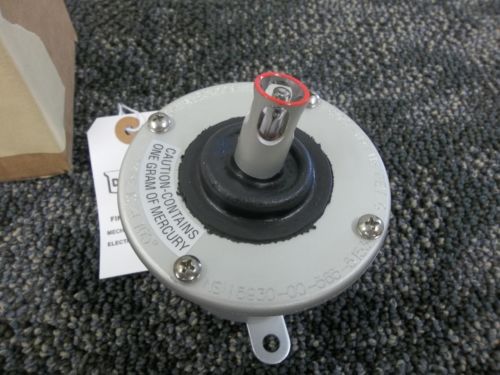

FOR SALE IS A BRAND NEW DYNALEC THERMOSTATIC SWITCH. PART NUMBER 803-1197 118 REV G. TYPE IC/J 105°. THE NSN IS 5930-00-565-5153. THE SPECIFICATIONS ARE AS FOLLOWS: MRC Parameter Characteristics ABHP Overall Length 3.125 inches nominal ABPM Body Diameter 1.500 inches nominal ADAQ Body Length 1.500 inches nominal ADAV Overall Diameter 3.875 inches nominal AEBV Unthreaded Mounting Hole Diameter 0.219 inches nominal AEVT Capillary Tube Length 2.250 inches nominal AEVU Bulb Length 0.313 inches nominal AEVV Bulb Diameter 0.125 inches nominal AKBY Temp Sensing Element Type Capillary tube-bulb ALAQ Mounting Facility Circle Radius 1.381 inches nominal AWTN Operating Temp Rating -55.0 deg fahrenheit minimum and 175.0 deg fahrenheit maximum AXGY Mounting Method Flange and unthreaded hole CQGB Contact Action Stimulus Increase CQYJ Mounting Facility Pattern Four position circular CRLD Nonpile-UP Contact Arrangement 1 pole, double throw, one position momentary CSCF Terminal Type Wire lead CTHF Contact Load Current Rating 700.0 milliamperes resistive load single voltage CTYC Contact Adjustability Deactuation point not adjustable and actuation point not adjustable CTYX Contact Stimulus Rating 105.00 actuation point nominal degrees fahrenheit and 103.00 deactuation point nominal degrees fahrenheit CTZB Contact Voltage Rating IN Volts 115.0 ac at sea level single voltage MEDA Media FOR Which Designed Gas or liquid STYL Style Designator Cylindrical W/flange TEST Test Data Document 81349-MIL-S-16032 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.). IF YOU HAVE ANY QUESTIONS, YOU CAN CALL ME 1-614-580-0951. You will not be disappointed. My feedback speaks for itself. If you have any questions please email me and please check out the other items i have for sale. If you have problems with your order, PLEASE CONTACT ME BEFORE LEAVING FEEDBACK. Thanks, mark ATTENTION! - ATTENTION! - NOTICE! - NOTICE! BEFORE LEAVING FEEDBACK PLEASE PLEASE PLEASE CONTACT ME. I WANT TO MAKE YOU HAPPY AND FIX THE ISSUE. IF YOU BOUGHT THE WRONG THING, IT IS BROKEN, IF SHIPPING TOOK TO LONG OR EVEN IF YOUR HAVING A BAD DAY. I WANT TO HELP!! I WANT TO KEEP MY FEEDBACK CLEAN

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	DYNALEC BAE SYSTEMS
NSN	5930-00-565-5153
MPN	803-1197 118 REV G
