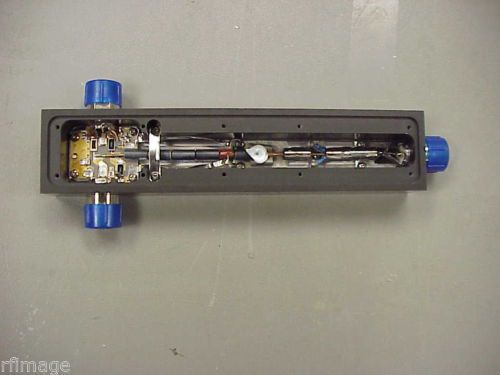

EAGLE RLB254NF RETUEN LOSS BRIDGE 5MHZ TO 3000MHZ 45DB RETURN LOSS, US $695.00 – Picture 1

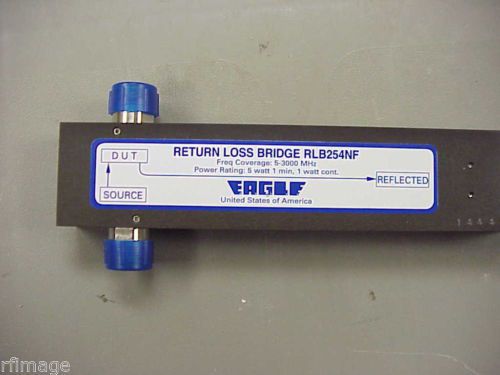

EAGLE RLB254NF RETUEN LOSS BRIDGE 5MHZ TO 3000MHZ 45DB RETURN LOSS, US $695.00 – Picture 2

Eagle Rlb254nf Retuen Loss Bridge 5mhz To 3000mhz 45db Return Loss

US $695.00

Las Vegas, Nevada, United States
Jan 29th

Open on mobile:
QR code

Click Here. Double your traffic. Get Vendio Gallery - Now FREE! RLB254NF Return Loss Bridge, 5-3000 MHz Features: Coverage: 5-3000 MHz Excellent directivity: >40 dB 50-2600 MHz >35 dB 2600-3000 MHz Internal 50 ohm reference RF Reflected port Great for Antenna Work Use with Vector Analyzers Use with Spectrum Analyzers Rugged case and connectors Five watt power rating Covers Cell, 1.8 GHz PCS, 2.45 GHz ISM Applications Return loss bridges are useful in measuring VSWR, or return loss of filters, mixers, antennas and amplifiers. With directivity ratings of better then 40 dB, EAGLE bridges yield excellent results. The bridges may also be used for coupling two generators for inter-modulation testing, or power splitting for leveling systems. All EAGLE bridges have a true RF output; they can be connected directly to vector or spectrum analyzers. Even spectrum analyzers contained in communications service monitors can be used. With the high degree of accuracy found in EAGLE bridges error correction is not absolutely necessary. Description The RLB254NF return loss bridge has been designed for lasting service in either laboratory or field service applications. This bridge yields laboratory performance in directivity and open/short ratio over a frequency range of 5 to 3000 MHz. pro of measuring VSWR for VHF, UHF, Cellular, PCS and 2.45 GHz ISM. Each bridge is constructed in a machined aluminum case. Connectors are heavy duty with field replaceable center pins. Power rating is a maximum of five watts up to one minute or 1.5 watt continuous. Description-continued These bridges have three ports: SOURCE, DUT(device under test) and REFLECTED. The REFLECTED port on all EAGLE bridges is an RF port. The bridge may be connected directly to a network or spectrum analyzer. There is no REFERENCE port as the bridge contains an internal 50 ohm reference. To insure that high quality is maintained, each unit is thoroughly inspected, both mechanically and electrically. Critical components are 100% inspected and tested before assembly into the units. After pretest the bridges are aged at 100 C and then retested. Quality To insure that high quality is maintained each unit is thoroughly inspected both mechanically and electrically. All units are aged and then retested to insure superior stability over the lifetime of the instruments. Availability These units are normally stock items: 1 week delivery. Special orders or large quantities usually require 2-4 weeks. Specifications Please refer to next page for detailed specifications. CALL PAUL AT 1-702-285-3432 EMAIL VIA EBAY EMAIL LIST PRICE IS $795.00-WE HAVE 5 UNITS IN INVENTORY

Condition	New other (see details) : A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“WITH 6 MONTH WARRANTY”
