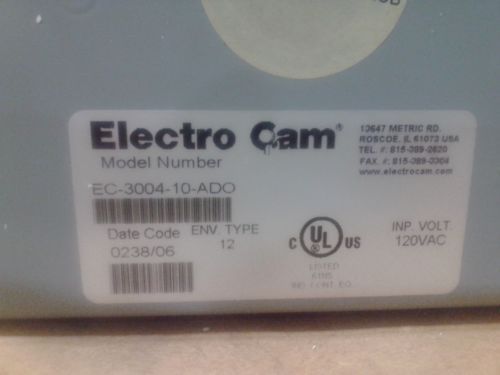

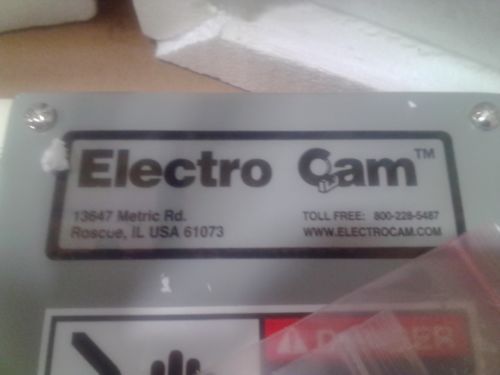

Electro Cam Ec-3004-10-ado 4 Channel Optical Rotary Cam System

US $300.00

Aiken, South Carolina, United States
Jan 29th

Open on mobile:
QR code

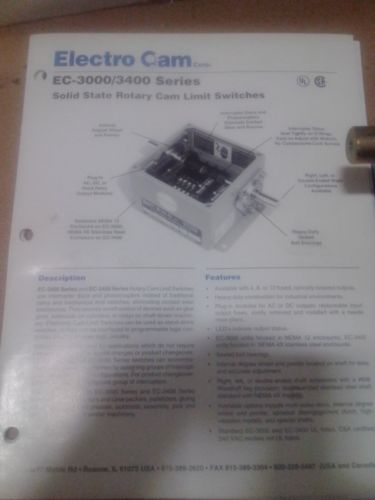

The EC-3000 and EC-3400 Series Rotary Cam Limit Switches replace traditional cams and mechanical limit switches, eliminating contact wear and bounce. They are shaft-driven and use interrupter discs and photocouplers for on/off switching based on rotary position. These switches provide on/off control to devices such as glue guns, solenoids, air cylinders, or relays. They can be used as stand-alone controls or interfaced to other circuitry such as Programmable Logic Controllers (PLC). Five standard models are available in the EC-3000 Series and four standard models in the EC-3400 Series units. The EC-3000 units are rated NEMA 12, and the EC-3400 units are NEMA 4X rating with a stainless steel enclosure. The cover plate on the EC-3400 units is secured with clamps to avoid contamination. The EC-3400 units are standard with a double-ended stainless steel shaft. Unit Specifications Max Speed: 3000 RPM, clockwise or counterclockwise rotation Max Phase Shift: 1°/1000 RPM Ambient Temp: 0° to 60°C (32° to 140°F) Humidity: 95% maximum relative non-condensing Input Voltage: 120 VAC (108 to 132 VAC), 50 or 60 Hz. 12 VDC, 24 VDC or 240 VAC units available Input Power: EC-3004/EC-3404 3 VA Max EC-3008/EC-3408 6 VA Max EC-3012/EC-3412 6 VA Max Shaft: 3/4" diameter shaft extensions. The shaft is rated at 32,000 PSI yield and necked down to 0.500" internally. Power transmission through the shaft should be based on these figures. Max Side Load: 100 lbs. up to 1800 RPM / 200 lbs. up to 500 RPM Bearing Life: 10 years (87,660 hours) continuous running with 75 lbs. side load at 1000 RPM. Note: Consult factory if higher speeds or larger loads are required. Enclosures: EC-3000—NEMA 12 JIC, oil-tight steel housing EC-3400—NEMA 4X stainless steel housing Printed Circuit Board: EC-3000—conformal coating on top only EC-3400—conformal coating on top and bottom Net Weight: EC-3004/EC-3404 9.00 lbs. 4.0 kg EC-3008/EC-3408 13.50 lbs. 6.1 kg EC-3012/EC-3412 15.00 lbs. 6.8 kg This item is new, never installed in the original manufacturers box. The item pictured is exactly what you will receive. It comes with a full set of manuals. Payment is required within 2 business days of auction end (bidding time complete or buy it now utilized). If payment is not received within 2 business days the item will either revert to the second highest bidder, be relisted, or removed from ebay. The item will ship within 2 business days after payment is received. We ship to the US only and accept paypal only. Please contact us with any questions and we will do our best to answer promptly.
