Electrodynamic Vibration Shaker 1200 Lb W/ Slip Table, Amplifier, Mb C10e M/rad

US $19,500.00

Morgantown, Pennsylvania, United States
Jan 30th

Open on mobile:
QR code

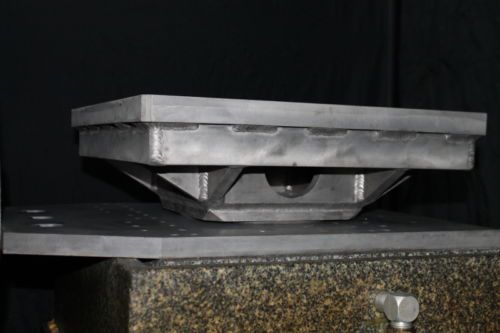

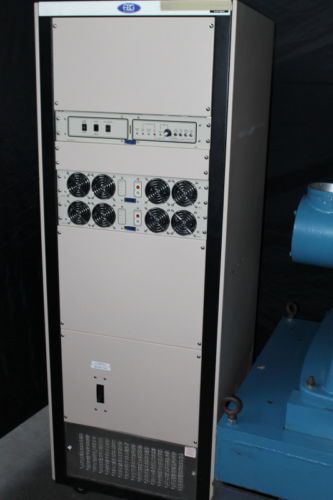

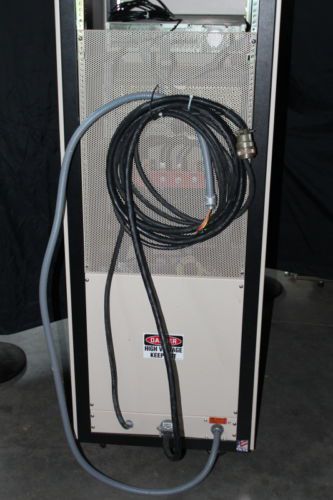

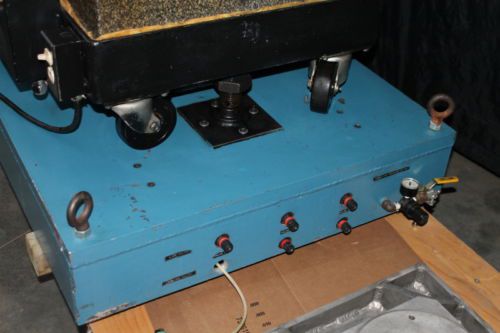

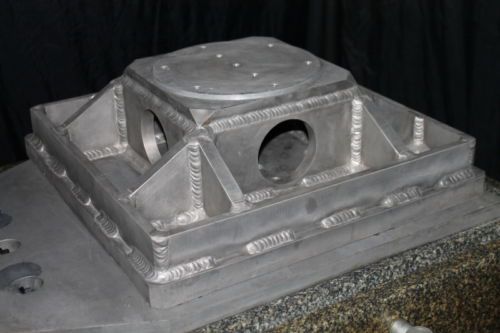

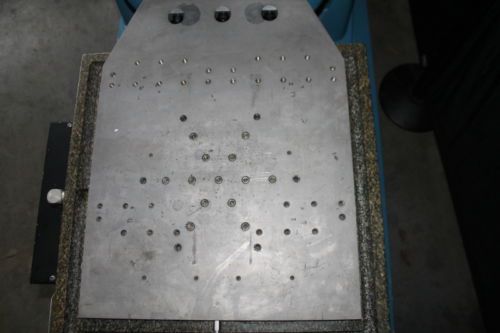

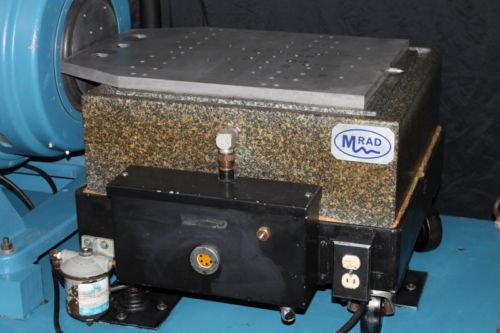

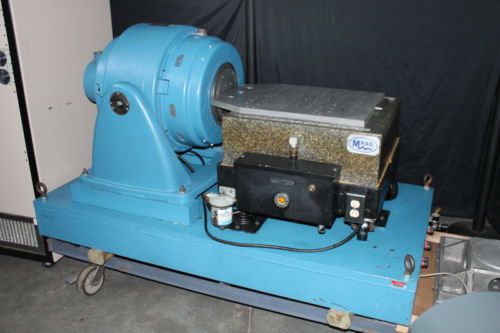

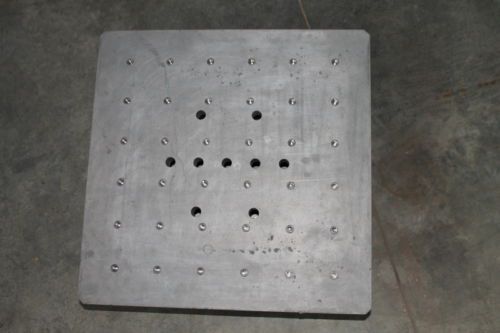

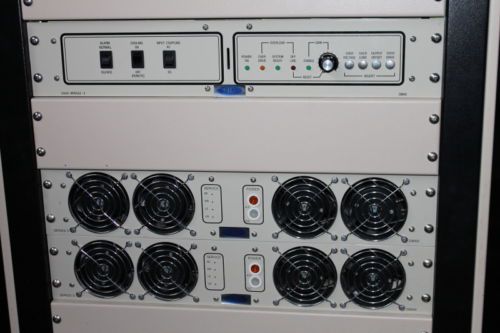

Electrodynamic Vibration Shaker 1200 lb w/ Slip table, Amplifier, MB C10E M/RAD This is a used electrodynamic shaker system consisting of a shaker head mounted to a slip table, solid state amplifier cabinet and cooling blower. Shaker head is a MB Dynamics C10E and the slip table is made by Mrad .The entire system was assembled and updated by ACG Inc. The 25 kVA solid state amplifier system consists of a power supply, logic module and two modular power modules. The control cabinet to shaker head cable is included along with a manual for each the shaker head, slip table and control cabinet. Slip-table has a 20x20" mounting plate that rides on a granite block with an oil film established between them which results in a coefficient of friction of less than 0.01. Included is a 20x20" expander head to increase the mounting size when the shaker is used in the vertical orientation. The system is very clean and in excellent condition. Shaker head: MB Dynamics model C10E S/N: 695 Accommodates loads up to 100 lbs to 10 g Force output: 1200 lbs vector (continuous duty sinusoidal input) 850 lbs RMS (noise testing 15-2000 cps bandwidth) 2550 lbs peak (noise testing 15-2000 cps bandwidth) Frequency range: 5 to 3000 cps Total table displacement: 1" (+-1/2") between stops Continuous rating +-1/2" except as limited by 70"/sec velocity or 1200 lbs force Moving table assembly: 8" outer bolt circle Magnesium construction Weight: 17.5 lbs Forced air cooling permits continuous duty at max rated force Expander head: Magnesium 20x20x7" Slip Table: M/RAD Vibraglide model 2020 OAD: 30 x 34 x 20.5" Mounting area: 20 x 20" Magnesium Granite base 30 psi oil supply to provide oil film for table to float on 120V Adjustable height Power amplifier: Ling Model DMA-3HB/2-C10-Mt S/N: 9702-7691 Overall power: 25kVA Logic Module II Two power modules 12 Kva combined output Specifications: MFG: MB Dynamics, M/RAD, Ling Model: Serial: Volts: 480 Amps: Phase: 3 Drive: Controls: Manuals: Air: Weight: Lbs Condition: Used Length: Width: Height: All dims inches unless otherwise noted Inventory #: 5699 For more information call 610-286-1655. Please call or email for shipping rates. International purchases: A $40 documentation processing fee will be added to total purchase for items under $150. When communicating with us please use your own email address or call 610-286-1655. We want to know who we are communicating with and we cannot identify specific emails in our inbox using the ebay email system. Send emails to heritageequipment AT gmail.com The new ebay buyer protection program has inspired us to offer all of our items “as-is”.This does not mean that you are buying a machine with deficiencies, known or unknown. What it means is that some of our items will be tested and will include the results in the description and others will be untested but described accurately to the extent that is possible without actually powering up the machine. In addition to this written description you will have the opportunity to view high quality photos of the item. With these two sources of information you will have as much information as possible without being physically here to inspect the machine. Feel assured that we will make a diligent effort to give you an accurate description of the equipment. As a buyer you should be aware that you are buying an expensive piece of equipment at a greatly reduced price and as such you may have to deal with certain unknowns and defective components which were not known and could not be known without full scale setup and operation of the machine. Our experience in dealing with many specialized pieces of equipment has proven this to be a rare occurrence however it is a risk inherent in buying used equipment. The very few times we have had to deal with these issues we have been very helpful in resolving the problem.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Used”
