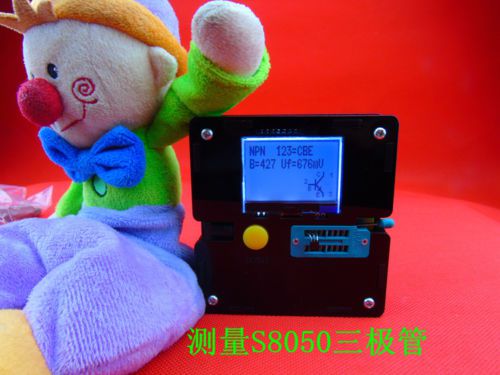

ESR Meter 12864 LCD Transistor Tester Diode Triode Capacitance MOS PNP/NPN +CASE, US $23.99 – Picture 0

ESR Meter 12864 LCD Transistor Tester Diode Triode Capacitance MOS PNP/NPN +CASE, US $23.99 – Picture 1

ESR Meter 12864 LCD Transistor Tester Diode Triode Capacitance MOS PNP/NPN +CASE, US $23.99 – Picture 2

ESR Meter 12864 LCD Transistor Tester Diode Triode Capacitance MOS PNP/NPN +CASE, US $23.99 – Picture 3

ESR Meter 12864 LCD Transistor Tester Diode Triode Capacitance MOS PNP/NPN +CASE, US $23.99 – Picture 4

Esr Meter 12864 Lcd Transistor Tester Diode Triode Capacitance Mos Pnp/npn +case

US $23.99

???, ???, China
Jun 9th

Open on mobile:
QR code

Features: 1:Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, transistor, resistor and capacitor and other components 2: Automatic test the pin of a component, and display on the LCD 3:Can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage 4: Measure the gate and gate capacitance of the MOSFET threshold voltage 5:Use 12864 liquid crystal display with green backlight Specifications: For you reference 1,One -button operation, automatic shutdown . 2,Only 20nA shutdown current. 3,Automatically detect NPN, PNP bipolar transistors , N -channel and P -channel MOS FET, JFET , diodes , two diodes, thyristors small power unidirectional and bidirectional thyristor. 4,Automatic identification components pin arrangement . 5,Measuring bipolar transistor current amplification factor and base - emitter threshold voltage. 6,Via the base - emitter threshold voltage and high current amplification factor to identify Darlington transistors. 7,Can detect bipolar transistors and MOS transistors protection diodes. 8,Measuring the gate MOS FET threshold voltage and the gate capacitance. 9,Can simultaneously measure two resistors and resistor symbol is displayed. Displayed on the right with a decimal value of 4 . Resistance symbol on both sides shows the pin number. So you can measure the potentiometer. If the potentiometer wiper is not transferred to an extreme position , we can distinguish the middle and both ends of the pin. 10,Resistance measurement resolution is 0.1 ohms , 50M ohms can be measured . 11,Can measure capacitanceCan measure capacitance of 30pF-100mF , resolution 1pF. 12.2uF more capacitors can simultaneously measure the equivalent series resistance ESR values. The two can be displayed with a decimal value , resolution 0.01 ohms. 13,Can be in the correct order and the diode symbol display two diodes , and gives the diode forward voltage. 14.LED is detected as a diode forward voltage higher . Combo of the LED is identified as two diodes. 15,Eeverse breakdown voltage is less than 4.5V Zener diode can be identified. 16,Can measure a single diode reverse capacitance. If the bipolar transistor connected to the base and collector or emitter of a pin , it can measure the collector or emitter junction reverse capacitance . 18. can be obtained with a single measurement rectifier bridge connection. Notice: Before measuring capacitance , the capacitor must be discharged , otherwise very likely damage the meter . Method of use: Before using apart two screws at the bottom of the first, with 9 v battery! Or enter 9 v dc regulated power supply The machine is very simple to use, every two feet element, can access any of the three TEST end (1.2.3), two triode can freely access three terminals, such as press the TEST button and the machine Dynamic identification element types, pins and parameters. Measurable elements include: Resistor, capacitor, inductor, potentiometer, diode, the light-emitting diodes, transistors, field effect,Tube, silicon controlled rectifier, etc. Note: please before measuring capacitance capacitor discharge, otherwise may damage the instrument. Package Contents 100% Brand New 1 x ESR Meter 12864 LCD Transistor Tester Diode Triode Capacitance MOS PNP/NPN +CASE We only accept Paypal in Ebay. If you want to pay via other method please contact us. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to biding Item will be shipped within 24 hours on payment received from Hong Kong using Airmail. Delivery time depends on destination and other factors, it may takes up to 30 business days. Optionally, Express Shipments with tracking service via EMS/DHL/UPS with a quoted delivery time of 5 to 7 business days is also available Here is the estimated time for your reference only: The delivery time may vary due to public holidays, countries, and customs etc. Thanks for your understanding You feedback is very important to us, please let us know before leaving any negative feedback or open any disputes on Paypal, please give me an opportunity to resolve any problems and we will try our best to satisfy your requirement. If the item is defective, please let me know as soon as possible after receive the items. The item will be returned its original condition, in order to get it refunded and replaced (please inquire us the returning address before you ship it back.) . Buyer is responsible for shipping costs when shipping products.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Does Not Apply
MPN	Does Not Apply
