Extron RGB 203 Rxi, US $50.00 – Picture 0

Extron RGB 203 Rxi, US $50.00 – Picture 1

Extron Rgb 203 Rxi

US $50.00

San Jose, California, United States
Jan 30th

Open on mobile:
QR code

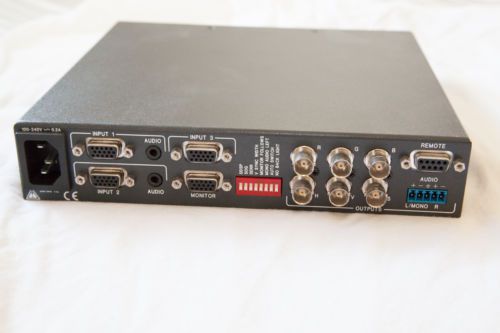

You are looking at a barely used Extron RGB 203 Rxi. This unit is in like new condition. I personally owned this unit and it never got used. I accept Paypal only. Shipping to continental US via USPS Priority. No PO/APO Overview: The Extron RGB 203 Rxi is a universal, analog computer-video and audio interface with EDID Minder®. It allows up to three computer-video inputs with resolutions up to QXGA to be converted for output to projectors and flat panel displays. It also accepts unbalanced computer stereo audio and converts it to balanced, line level stereo or mono audio. Extron enhanced ADSP technology provides all-digital processing of sync signals, eliminating compatibility issues encountered when using analog sync processing with digital display devices. The RGB 203 Rxi is ideal for use in applications that require signal amplification and sync processing to ensure compatibility between different types of displays and computer-video signal sources found in classrooms, auditoriums, and conference rooms. Specs: Video Routing 3 x 1 router Gain 0.5 V to 1.45 Vp-p Bandwidth 300 MHz (-3 dB) Rise time 1.5 ns EDID Supports emulation of custom or factory preset Extended Display Identification Data (EDID) tables Video input Number/signal type 3 analog VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs Connectors 3 female 15-pin HD Nominal level 0.7 Vp-p for RGB Minimum/maximum levels Analog: 0.3 V to 1.45 Vp-p with no offset at unity gain Impedance 75 ohms Horizontal frequency 15 kHz to 150 kHz Vertical frequency 40 Hz to 140 Hz Return loss <-30 dB @ 5 MHz DC offset (max. allowable) 4 V Video output Number/signal type 1 analog RGBHV, RGBS, RGsB Connectors 6 female BNC Nominal level 0.7 Vp-p for RGB Minimum/maximum levels 0.3 V to 1.30 Vp-p Impedance 75 ohms Return loss -30 dB @ 5 MHz DC offset ±5 mV maximum with input at 0 offset Sync Input type RGBHV, RGBS, RGsB, RsGsBs Output type RGBHV, RGBS, RGsB Input level 2 V to 5.5 Vp-p with ±0.2 VDC offset max. Output level TTL: 4V to 5V p-p, unterminated Input impedance 510 ohms Output impedance 75 ohms Max. propagation delay 85 ns Max. rise/fall time 2 ns Polarity RGBHV: tracks polarity (or force negative sync via internal jumper) RGBS, RGsB: negative Audio Routing 2 x 1 stereo router Gain Unbalanced output: 0 dB; balanced output: +6 dB Frequency response 20 Hz to 20 kHz, ±0.05 dB THD + Noise 0.03% @ 1 kHz, 0.3% @ 20 kHz at nominal level S/N >90 dB at rated maximum output (17 dBu), balanced (unweighted) Crosstalk <-90 dB @ 1 kHz, fully loaded Stereo channel separation >90 dB @ 1 kHz Audio input Number/signal type 2 PC level stereo, unbalanced Connectors (2) 3.5 mm mini audio jacks (female) Impedance >10k ohms, unbalanced, DC coupled Nominal level -10 dBV (316 mVrms) Maximum level +8.5 dBu, (balanced or unbalanced) at 1% THD+N NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ? 2 dBu Audio output Number/signal type 1 buffered stereo (2 channel) or mono, balanced/unbalanced Connectors (1) 3.5 mm captive screw connector, 5 pole Impedance 50 ohms unbalanced, 100 ohms balanced Gain error ±0.1 dB channel to channel Maximum level (Hi-Z) >+14 dBu, balanced at 1% THD+N Maximum level (600 ohm) >+8.5 dBm, balanced at stated %THD+N Control/remote — interface Serial control port RS-232, female 9-pin D connector (also used for contact closure) Baud rate and protocol 9600 baud, 8 data bits, 1 stop bit, no parity Serial control pin configuration 2 = Tx, 3 = Rx, 5 = GND Contact closure 1 female 9-pin D connector (also used for RS-232) Contact closure pin configuration 1 = input 1, 4 = input 2, 5 = GND Program control Extron control/configuration program for Windows® Extron Simple Instruction Set (SIS™) General Input power 100 VAC to 240 VAC, 50-60 Hz, 18 watts, internal MBC power jacks 9.0 VDC, 0.15 A Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +113 °F (0 to +45 °C) / 10% to 90%, noncondensing Cooling Convection, vents on left and right sides Mounting Rack mount Yes, with optional 1U rack shelf Furniture mount Yes, with optional under-desk mounting kit or through-desk mounting kit Enclosure type Metal Enclosure dimensions 1.75" H x 8.75" W x 8.0" D (1U high, half rack wide) (4.4 cm H x 22.2 cm W x 20.3 cm D; with rear BNCs, D = 8.4" [21.3 cm]) (Depth excludes knobs.) Product weight 2.2 lbs (1.0 kg) Shipping weight 5 lbs (3 kg) Vibration ISTA 1A in carton (International Safe Transit Association) Regulatory compliance Safety CE, c-UL, UL EMI/EMC CE, C-tick, FCC Class A, ICES, VCCI Warranty 3 years parts and labor NOTE All nominal levels are at ±10%. NOTE Specifications are subject to change without notice.
