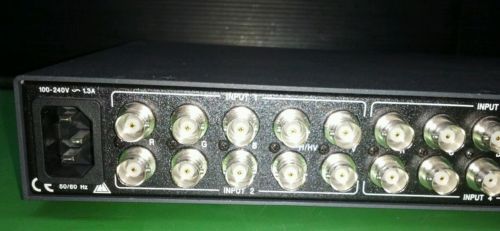

Extron Sw6 Rgbhv A Audio Switch Rgbhv & Audio Switcher

US $49.99

Los Angeles, California, United States
Jan 30th

Open on mobile:
QR code

100% Of The Proceeds From This Auction Raises Money For Our Non Profit. 30 Day DOA Return/Replacement or Full Refund Policy. 1 Day Handling Time -Bid With Confidence ! Product Condition Used Plugged in the unit and powers on. Actual item is similar to the one shown in the pictures Please contact us if you see any problems with the item Includes 1 x Extron SW6 RGBHV 1 x Power Cable Product Information (Taken from manufacturer's) Video Gain Unity. Bandwidth 350 MHz (-3 dB) Crosstalk -70 dB @ 10 MHz Switching speed 5 ms (max.) Video input Number/signal type SW2 RGBHV/RGBHV A 2 RGBHV, RGBS, RGsB, RsGsBs, HDTV component video, S-video, composite video (or digital audio) SW4 RGBHV/RGBHV A 4 RGBHV, RGBS, RGsB, RsGsBs, HDTV component video, S-video, composite video (or digital audio) SW6 RGBHV/RGBHV A 6 RGBHV, RGBS, RGsB, RsGsBs, HDTV component video, S-video, composite video (or digital audio) Connectors SW2 RGBHV/RGBHV A 2 x 5 female BNC SW4 RGBHV/RGBHV A 4 x 5 female BNC SW6 RGBHV/RGBHV A 6 x 5 female BNC Nominal level 1.0 Vp-p for Y of component video and S-video, and for composite video 0.7 Vp-p for RGB and for R-Y and B-Y of component video 0.3 Vp-p for C of S-video Minimum/maximum levels Analog: 0.3 V to 1.5 Vp-p with no offset Impedance 75 ohms Return loss <-30 dB @ 10 MHz DC offset (max. allowable) 5.0V Input coupling DC Video output Number/signal type 1 RGBHV, RGBS, RGsB, RsGsBs, HDTV component video, S-video, composite video (or digital audio) Connectors 5 female BNC Nominal level 1.0 Vp-p for Y of component video and S-video, and for composite video 0.7 Vp-p for RGB and for R-Y and B-Y of component video 0.3 Vp-p for C of S-video Minimum/maximum levels 0.5 V to 1.5 Vp-p (follows input) Impedance 75 ohms Return loss <-30 dB @ 10 MHz DC offset ±5 mV maximum with input at 0 offset Sync Input type RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync Output type RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync Input level Analog or TTL, 0.5 V to 5.0 Vp-p Output level 5.0 Vp-p, unterminated, for V output; H output follows input Input impedance 510 ohms for V input and unselected H input; the selected H input impedance is determined by the device connected to the H output. Output impedance 75 ohms for V output; the H output impedance is determined by the device connected to the selected H input. Max. input voltage 5.0 Vp-p Max. propagation delay 35 ns Max. rise/fall time 4 ns Polarity Positive or negative (follows input) Audio — SW 2/4/6 RGBHV A only Gain -18 to +24 dB, adjustable When audio gain is set to unity (0 dB), balanced output will have a 0 dB gain; unbalanced output will be attenuated by 6 dB. Frequency response 20 Hz to 20 kHz, ±0.05 dB THD + Noise 0.03% @ 1 kHz, 0.3% @ 20 kHz at nominal level S/N >90 dB at maximum output Crosstalk <-65 dB @ 20 kHz, <-80 dB @ 1 kHz or below 60 Hz Stereo channel separation >80 dB @ 20 Hz to 20 kHz CMRR >75 dB @ 20 Hz to 20 kHz Digital audio — all models' H channel Input type Dolby® Digital, DTS, AES/EBU Output type Dolby Digital, DTS, AES/EBU Bandwidth 250 MHz (-3 dB) Sampling rates 32, 44.1, 48, 96 kHz Input level 0.5 V to 5.0 Vp-p Output level 2.5 Vp-p (when terminated with 75 ohms) Input impedance 510 ohms for unselected inputs; for the selected input, impedance is determined by the device connected to the output Output impedance Determined by the device connected to the selected input Max. input voltage 5.0 Vp-p Max. propagation delay 35 ns Max. rise/fall time 4 ns NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ? 2 dBu Audio input — SW 2/4/6 RGBHV A only Number/signal type 2, 4, or 6 (depending on the model) stereo, balanced/unbalanced Connectors 2, 4, or 6 (depending on the model) 3.5 mm captive screw connectors, 5 pole Impedance >10k ohms unbalanced, 20k ohms balanced, DC coupled Nominal level -20 dBV (100 mVrms), -10 dBV (316 mVrms), 0 dBu (0.775 Vrms), or +4 dBu (1.23 Vrms), configurable Maximum level +20 dBu, (balanced or unbalanced) at 1% THD+N Input gain adjustment -24 dB to +18 dB, adjustable per input Input coupling DC Audio output — SW 2/4/6 RGBHV A only Number/signal type 1 stereo, balanced/unbalanced Connectors (1) 3.5 mm captive screw connector, 5 pole Impedance 50 ohms unbalanced, 50 ohms balanced Nominal level -10 dBV (316 mV) or +4 dBu (1.23 V), configurable Maximum level (Hi-Z) >26 dBu, balanced; >+20 dBu, unbalanced at 1% THD+N Maximum level (600 ohm) >+21 dBm, balanced; >+15 dBm, unbalanced at 1% THD+N Control/remote — switcher Serial control port RS-232, female 9-pin D connector (same as the contact closure port) Baud rate and protocol 9600 baud, 8 data bits, 1 stop bit, no parity Serial control pin configuration 2 = TX, 3 = RX, 5 = GND Contact closure 1 female 9-pin D connector (same as the RS-232 port) Contact closure pin configuration 1 = input #1, 4 = input #2, 6 = input #3, 7 = input #4, 8 = input #5, 9 = input #6 Program control Extron control/configuration program for Windows® Extron Simple Instruction Set (SIS™) General Power 100 VAC to 240 VAC, 50-60 Hz, 20 watts, internal Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, non-condensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, non-condensing Cooling Convection, no vents Rack mount SW2 RGBHV, SW2 RGBHV A Yes, with optional 1U deep rack shelf All other models Yes, with included mounting kit Enclosure type Metal Enclosure dimensions SW2 RGBHV, SW2 RGBHV A 1.75" H x 8.75" W x 9.5" D (1U high, half rack wide) 4.4 cm H x 22.2 cm W x 24.1 cm D (Depth excludes connectors.) All other models 1.75" H x 17.5" W x 8.5" D (1U high, full rack wide) 4.4 cm H x 44.5 cm W x 21.6 cm D (Depth excludes connectors.) Product weight SW2 RGBHV 2.4 lbs (1.1 kg) SW2 RGBHV A 2.5 lbs (1.1 kg) All other models 7.0 lbs (3.2 kg) Shipping weight SW2 RGBHV, SW2 RGBHV A 5 lbs (3kg) All other models 12 lbs (6 kg) Vibration ISTA 1A in carton (International Safe Transit Association) Regulatory compliance Safety CE, c-UL, UL EMI/EMC CE, C-tick, FCC Class A, ICES, VCCI Terms Prefer Payment from Paypal Ships only to United States All payments must done with in 4 days of purchasing the item unless otherwise noted Alternative Shipping available upon request Buyers must contact with eBay message for any questions No technical support or warranty will be provide after the return period The Description is based off the best information we can find on the item processed by MV

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Item came from a working environment. Tested and powers on but, no further testing after that.”
