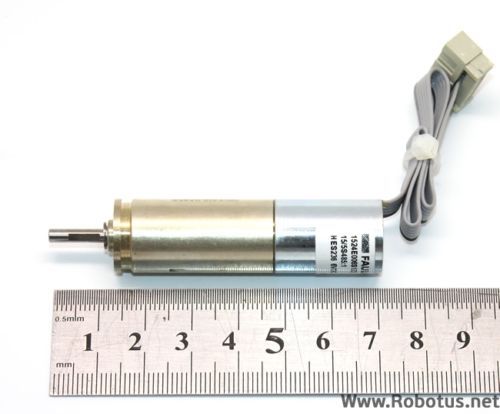

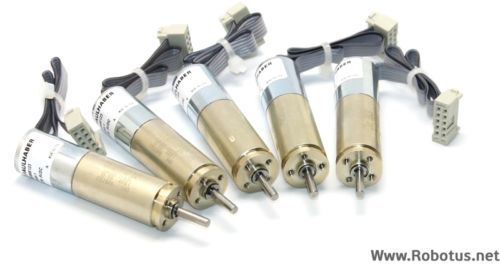

Faulhaber DC Motor (1524) 6V 485:1 Reduction 24 RPM + Magnetic 16 CPR Encoder, US $85.00 – Picture 0

Faulhaber DC Motor (1524) 6V 485:1 Reduction 24 RPM + Magnetic 16 CPR Encoder, US $85.00 – Picture 1

Faulhaber DC Motor (1524) 6V 485:1 Reduction 24 RPM + Magnetic 16 CPR Encoder, US $85.00 – Picture 2

Faulhaber Dc Motor (1524) 6v 485:1 Reduction 24 Rpm + Magnetic 16 Cpr Encoder

US $85.00

Istanbul, Marmara, Turkey
Jun 9th

Open on mobile:
QR code

Micro geared DC motor is a German-made unique. Gear box is Swiss made. It has pitted motor. Acceleration of the engine and braking is much faster than standard DC motor. A DC motor is suitable for use in systems such as motion control. Neodymium is magnetic. The same volume of 3 times more power density compared to normal DC motors. There are built-in magnetic encoder on the motor. The magnetic encoder features 16 signals per round (the 16CPR) Channel A and B 5V voltage. Output pin is located below the motor connector. Technical Data Weight: 51 g Rpm: 24 rpm Strain Torque: 3,336Nm (34 kg-cm) Continuous Operation Torque: 1,212Nm (12kg-cm) Current: 21 mA (unloaded) Watt: 1,7W Dimensions: 16mm diameter, 71mm length from end to end (shaft included) Shaft-sectional diameter of 3mm and 12mm length.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	FAULHABER
MPN	FAULHABER
Model	1624
Country/Region of Manufacture	Turkey
