Flo-tron Fuel/liquids Measurement System - Dual Transmitters

US $1,350.00

Walled Lake, Michigan, United States
Jan 29th

Open on mobile:
QR code

The Flo-Tron Linear Mass Flow Meter combines the familiarity and simplicity of orifice meter with the ability to read true mass flow.The differential pressure output signal is linear and proportional to mass flow independent of viscosity and density. In the meter, four matched orifices are arranged in a hydraulic "Wheatstone Bridge" network with a constant volume pump producing a recirculating flow. In the Type I Meter, the recirculating flow is less than the inlet/outlet flow. Type I Meter uses the differential pressure across the pump to correlate to fluid/fuel mass flow. In the Type II Meter, the recirculating flow is greater than the inlet/outlet flow. Type II Meter uses the differential pressure across the inlet/outlet to correlate to fluid/fuel mass flow. This measurement system has two Rosemout Transducer to accommodate the Type I and Type II Meter configurations (PPH= Pounds per hour). 0-15 PPH Rosemount Explosion-Proof Transducer Specifications Transducer Model: IDP3A12T0277 Serial No.: 148034 Calibration Range: 0-30 inch H2O Output Type: 4-20 mA Max. Supply Voltage: 45 VDC Max. Pressure: 2000 PSI 0-300 PPH Rosemount Explosion-Proof Transducer Specifications Transducer Model: IDP4A12T0277 Serial No.: 150047 Calibration Range: 0-100 inch H2O Output Type: 4-20 mA Max. Supply Voltage: 45 VDC Max. Pressure: 2000 PSI Flo-Tron Pressure Regulator Specifications (located at outlet port, primer pump recommended to supply fluid to inlet port): P/N: 41-03 S/N: 69-12 Connections: 1/4 inch NPT Flow Range: 0-400 lbs/hr Inlet Pressure: 60 psi max. Regulated Pressure: 1-12 psi Repeatibility: +/- 0.02 psi Inlet Pressure Sensitivity: 0.006 psi/psi The Output Pressure is displayed with on a 30 psi Gauge, with a calibration quick-connection.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.

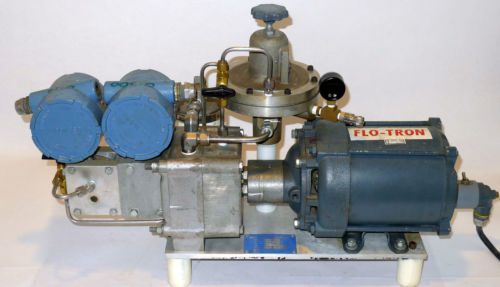

Seller Notes	“This system has been enhanced with two independent Rosemout Differential Pressure Transducers (0-15 PPH and 0-300 PPH)for Type I and Type II metering, Inlet Fuel/Liquid Filter, Outlet Pressure Regulator for Carburetor supply-type pressure, Degassing/Purge switchable lines. The system has been kept indoor in a cabinet with sealed inlet and outlet ports. Some documentation included.”
