Fluke Networks Electrical Contractor Telecom Kit Ii With Pro3000 Analog Tone ...

US $257.49

United States
Jan 29th

Open on mobile:
QR code

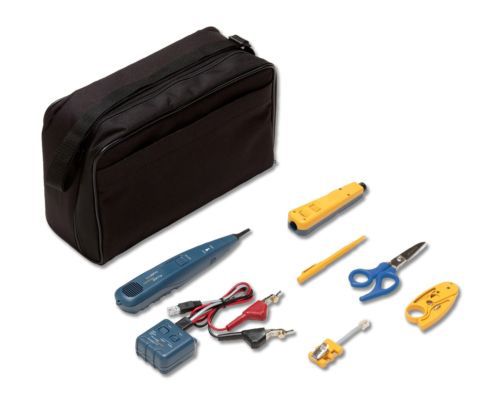

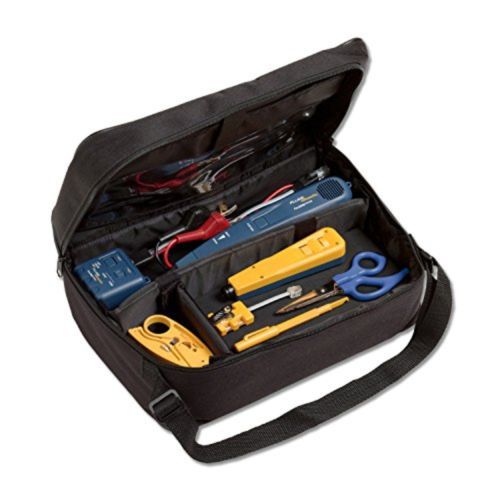

Fluke Networks Electrical Contractor Telecom Kit II with Pro3000 Analog Tone and Probe Kit and Case Product Description The Fluke Networks Electrical Contractor Telecom Kit II features a Pro3000 analog tone generator and probe plus accessories for testing, troubleshooting, and terminating wiring in telephone and data lines. The tone generator has ABN (angled bed-of-nails) clips and an RJ11 plug for connecting to inactive networks to locate and trace cables, wires, and wire pairs by sending a loud tone up to 16km (10 miles) in most cables and providing five distinct cadences for isolating individual wire pairs, and also checks continuity and polarity. Continuity and polarity are indicated by dual-color LEDs—red for continuity, and red and green for polarity of a DC-powered wire pair. The ABN clips allow access to individual wire pairs and the RJ11 plug connects to telephone jacks. The tone generator injects a tone, either constant or alternating, into a cable, and its SmartTone feature allows that tone to be modified to any of five distinct cadences for isolating individual wire pairs within a multi-pair cable. The probe detects the generated tone so that the cable can be located, and has an adjustable-volume speaker that amplifies the tone for tracing through drywall and wooden barriers such as walls and other enclosures. Its 3.5mm jack allows for an earphone (sold separately) to be attached, muting the speaker for discrete toning or toning in noisy environments. The nonmetallic tip of the probe enables testing in distribution blocks without disturbing other services and a spare tip is included inside the probe's battery compartment. Also included in the kit are a D814 punch-down tool that accepts industry standard blades and has an adjustable spring impact mechanism with high and low settings for performing reliable terminations; an EverSharp 66/110 cut blade that fits the punch-down tool; a cable stripper that scores, strips, and cuts round cables, UTP/STP telephone and data cables, and other flexible cables; a probe pic that separates and traces wires to check for loose or damaged connections; electricians' D-snips with forged steel blades and a handle design that increases force for clean cuts through up to 16-gauge solid and 12-gauge stranded wire, a notched blade for stripping 19- and 23-gauge wire, and a file and scraper on each blade for cleaning wire; and a standard 4-wire modular adapter for connecting to telephone jacks for testing line status without disrupting service. Additional specifications include various environmental operating conditions. This kit is used by network and telephone technicians to test and troubleshoot datacom and telecom cabling. Pro3000 Analog Tone Generator and Probe Specifications Cable compatibility Inactive AC wire, telephone/twisted pair wire, voice and data cable, coaxialcable, speaker wire, security wire Maximum length tested 16km/10 miles of 24 AWG twisted pair (varies for other wire types); 3.3km/2 miles for SmartTone signals Line cord connectors ABN (angled bed-of-nails) clips; RJ11 plug Tone frequency (nominal) 1,000 Hz for constant tone; 1,000/1,500 Hz for alternating tone Over voltage protection 60VDC in toner or polarity mode Output power in tone mode 8 dBm into 600Ω Output voltage in continuity mode 8VDC with fresh battery Agency certifications and standards met CE (European Conformity) marking; Canadian Standards Association CAN/CSA-C22.2 No. 60950-1-03, CAN/CSA-C22.2 No. 1010.1-92, and CSA-C22.2 No. 1010.1B-97; UL/ANSI (Underwriters Laboratories/American National Standards Institute) 3111-1 Power source (2) 9V alkaline batteries (sold separately), one each for tone generator and probe Dimensions Tone generator: 6.9 x 6.1 x 3.6cm/2.7 x 2.4 x 1.4 inches Probe: 24.9 x 4.1 x 3.3cm/9.8 x 1.6 x 1.3 inches (H x W x D) *H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back. Datacom and telecom installation and test devices, such as toners and test sets, check cabling and wiring to help ensure proper connections and operation. Tone generator and probe sets, also called toners, are used to locate, trace, and isolate cables in copper media networks. Telephone test sets, also called butt sets, are specialized telephones that connect to telephone lines to check for proper operation and to isolate trouble. Some test sets incorporate a TDR (time-domain reflectometer) and toner for determining cable length and locating faults. While certain devices may be used on live networks, others are only suitable for inactive networks. Field technicians and installers use these devices to set up, maintain, and troubleshoot datacom and telecom cabling within a building or in outside plant (OSP) applications. Fluke Networks manufactures tools for network infrastructure installation, testing, certification, and troubleshooting, in copper, fiber, and wireless networks, with its tools widely used by contractors, enterprises, and communication service providers. The company, which operates globally, is based in Everett, WA. What's in the Box? Fluke Networks Pro3000 analog tone generator Fluke Networks Pro3000 analog probe D814 punch-down tool EverSharp 66/110 cut blade Cable stripper Probe pic Electrician's D-snips Standard 4-Wire modular adapter Soft carrying case Instructions Features: Pro3000 analog tone generator and probe plus accessories for testing, troubleshooting, and terminating wiring in telephone and data lines Tone generator and probe locate and trace cables, wires, and wire pairs, and check continuity and polarity on inactive networks ABN clips allow access to individual wire pairs and RJ11 plug connects to telephone jacks Sends a loud tone up to 16km (10 miles) in most cables and provides five distinct cadences for isolating individual wire pairs Kit includes a punch-down, cut blade, cable stripper, probe pic, and D-snips for separating, cutting, and terminating wiring, and a standard 4-wire modular adapter for connecting to telephone jacks Product Details: Handling Time (Free Standard Shipping) May take up to 2 business days to process this item once payment has been received. On average it takes 3-9 business days for delivery FREE Shipping is within the continental 48 U.S. States only We do not Ship To Alaska and Hawaii No Free International Shipping ! No Shipping to APO/FPO/DPO Return Policy We offer a 14 Day Return Policy. However, all items purchased must be returned in the same condition in which they were received. Thank you!

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...

UPC

777786892807
